Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Grasp the rear compartment weatherstrip.
  3. Pull up on the weatherstrip to release the weatherstrip from the pinch-weld flange.
  4. Remove the rear compartment weatherstrip from the pinch-weld flange.

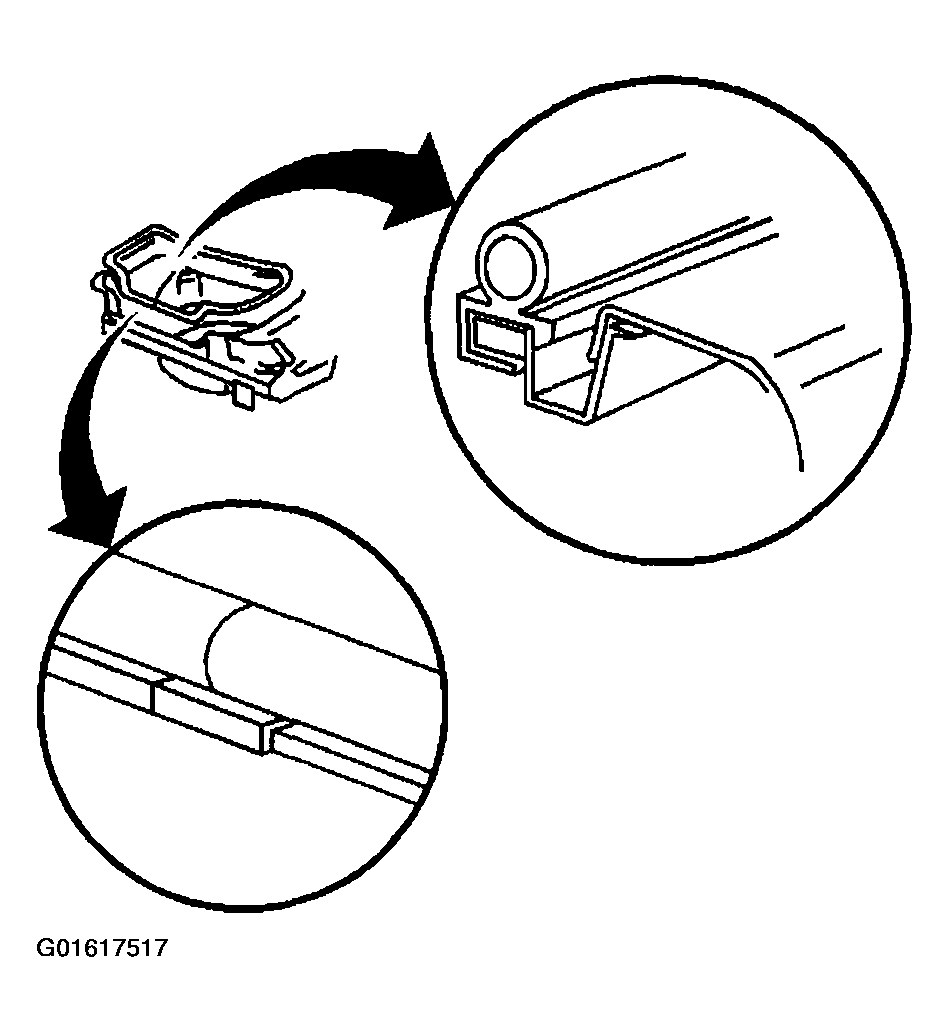

    Fig 1: Rear Compartment Weatherstrip
    G01617517Courtesy of GENERAL MOTORS CORP.
