Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the rear tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the rocker panel to rear wheelhouse liner screws.
  4. Using J 38778  remove the lower quarter panel to rear wheelhouse liner push-in retainers.
  5. Remove the rear wheelhouse liner to rear wheel house palnuts.
  6. Remove the rear wheelhouse liner from the vehicle.

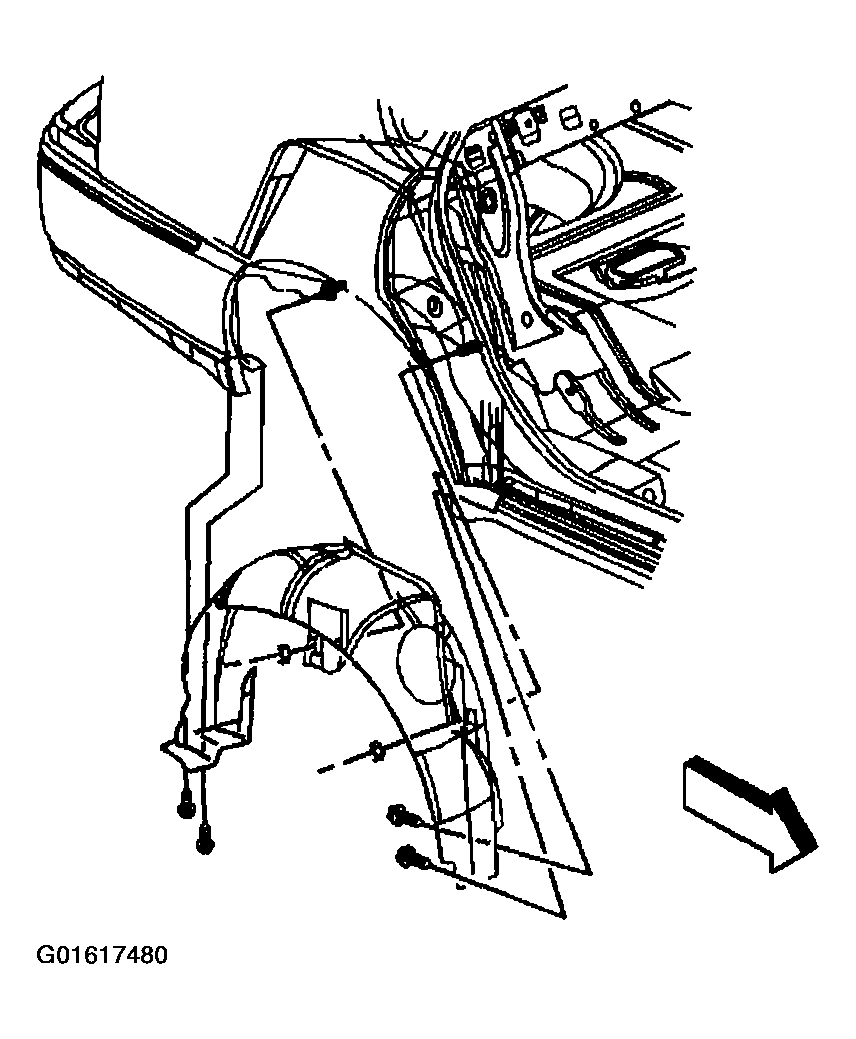

    Fig 1: Rear Wheelhouse Liner
    G01617480Courtesy of GENERAL MOTORS CORP.
