Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion and seat back.
  2. Open the seat belt guide loop cover.
  3. Remove the seat belt guide loop bolt.
  4. Remove the seat belt guide loop from the upper quarter trim panel.
  5. Remove the anchor plate nut from the seat stud.

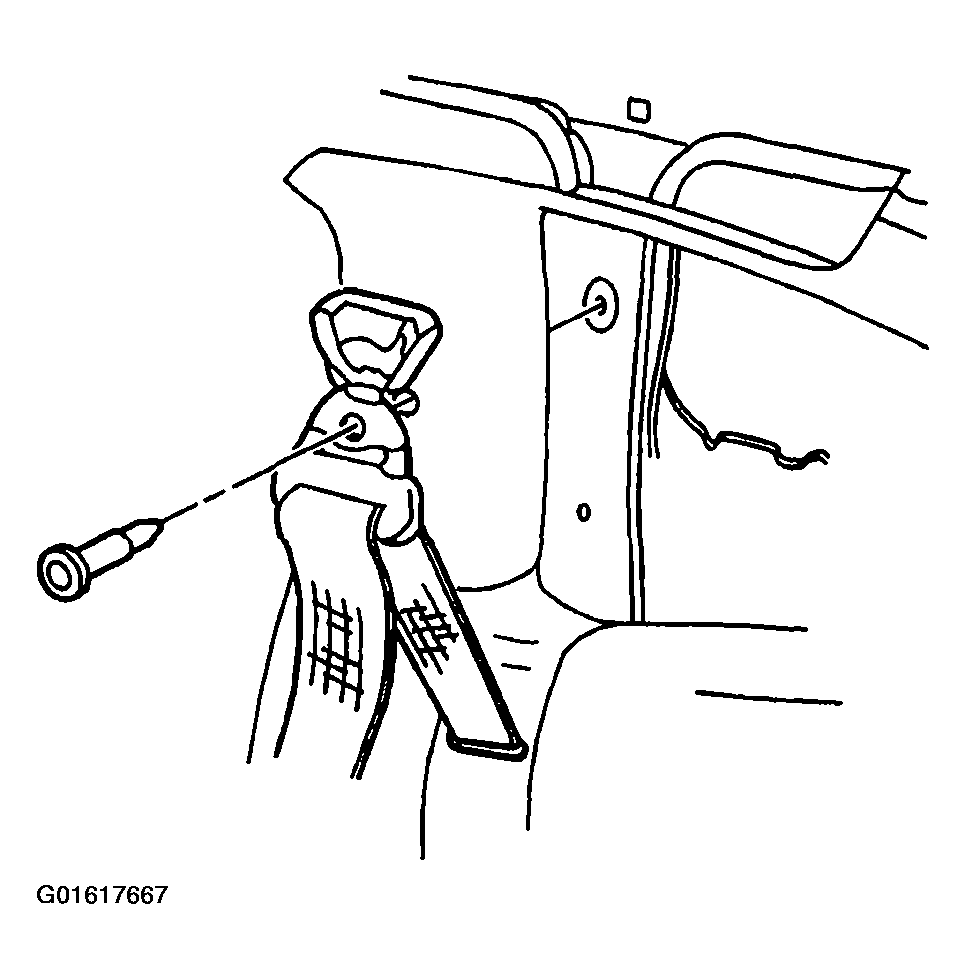

    Fig 1: Seat Belt Guide Loop
    G01617667Courtesy of GENERAL MOTORS CORP.
  6. Remove the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) .
  7. Remove the lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN) .
  8. Remove the seat belt from the anchor plate.

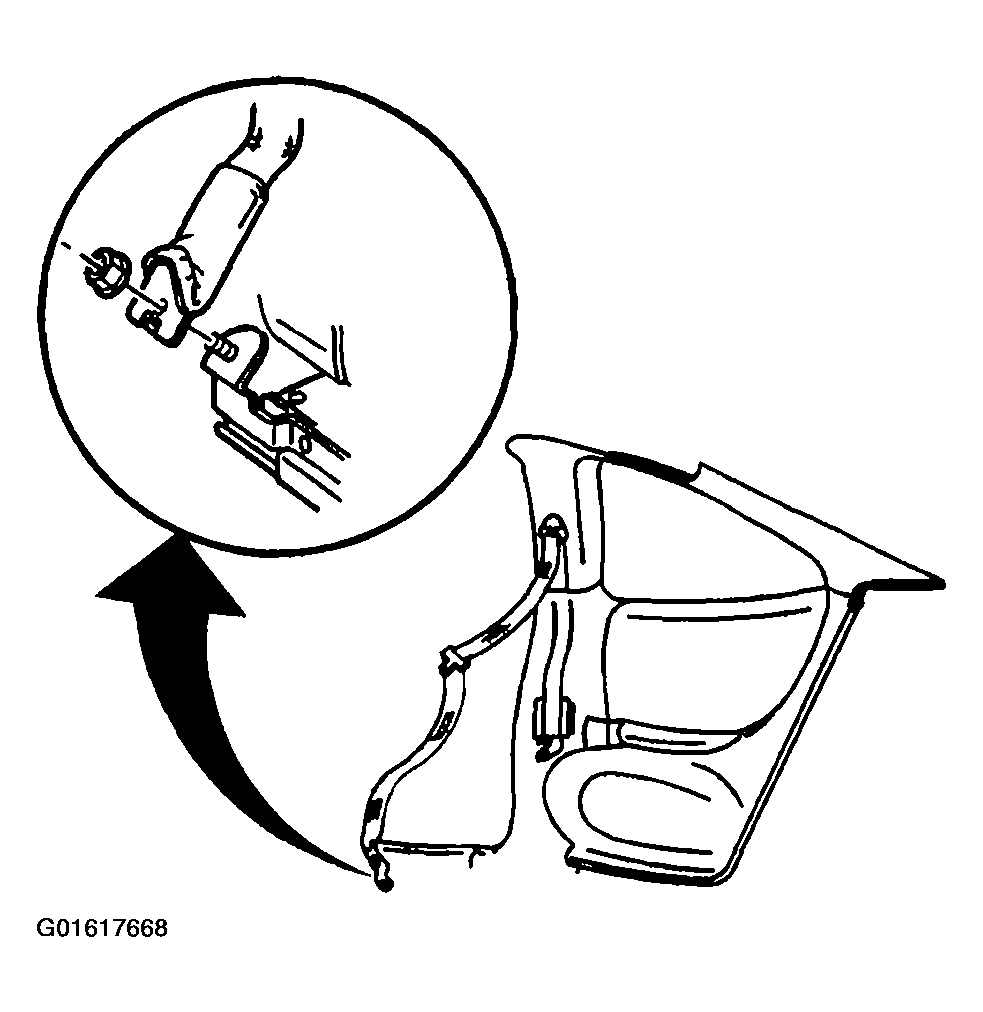

    Fig 2: Removing Seat Belt From Anchor Plate
    G01617668Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat belt intermediate guide bolts (1).
  10. Remove the seat belt intermediate guide.
  11. Remove the retractor seat belt bolt (3).
  12. Remove the retractor seat belt from the lower center pillar.

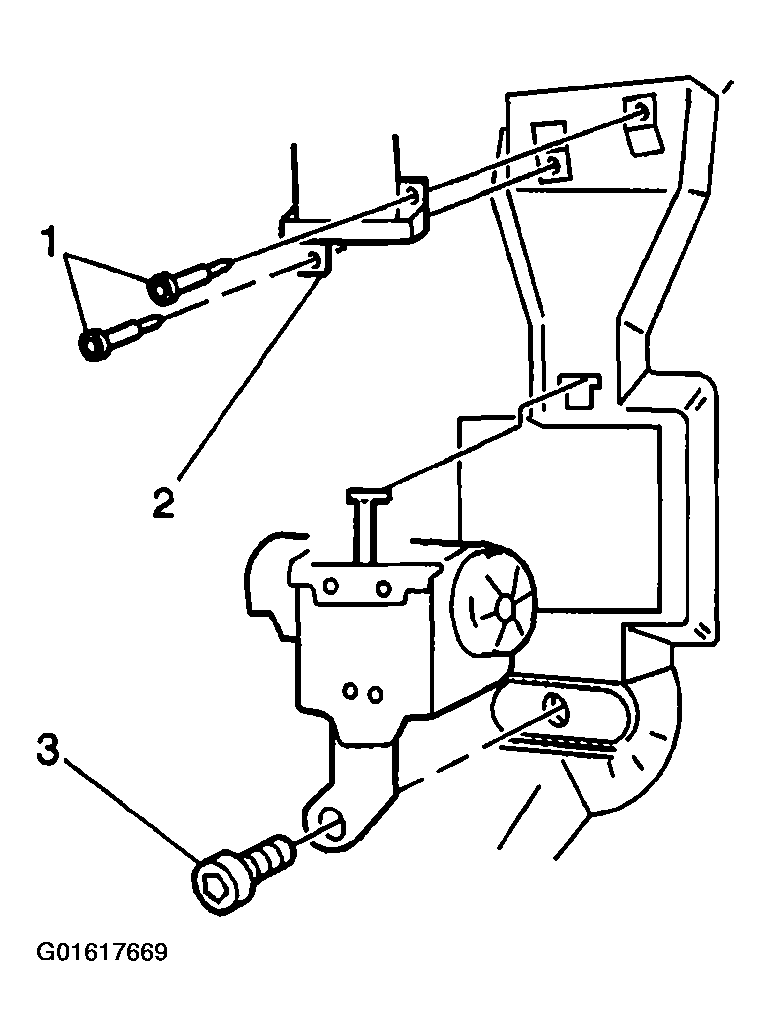

    Fig 3: Retractor Seat Belt
    G01617669Courtesy of GENERAL MOTORS CORP.
