Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right front seat to the rearward position.
  2. Remove the nut from the seat belt buckle.
  3. Remove the seat belt buckle from the right front seat.

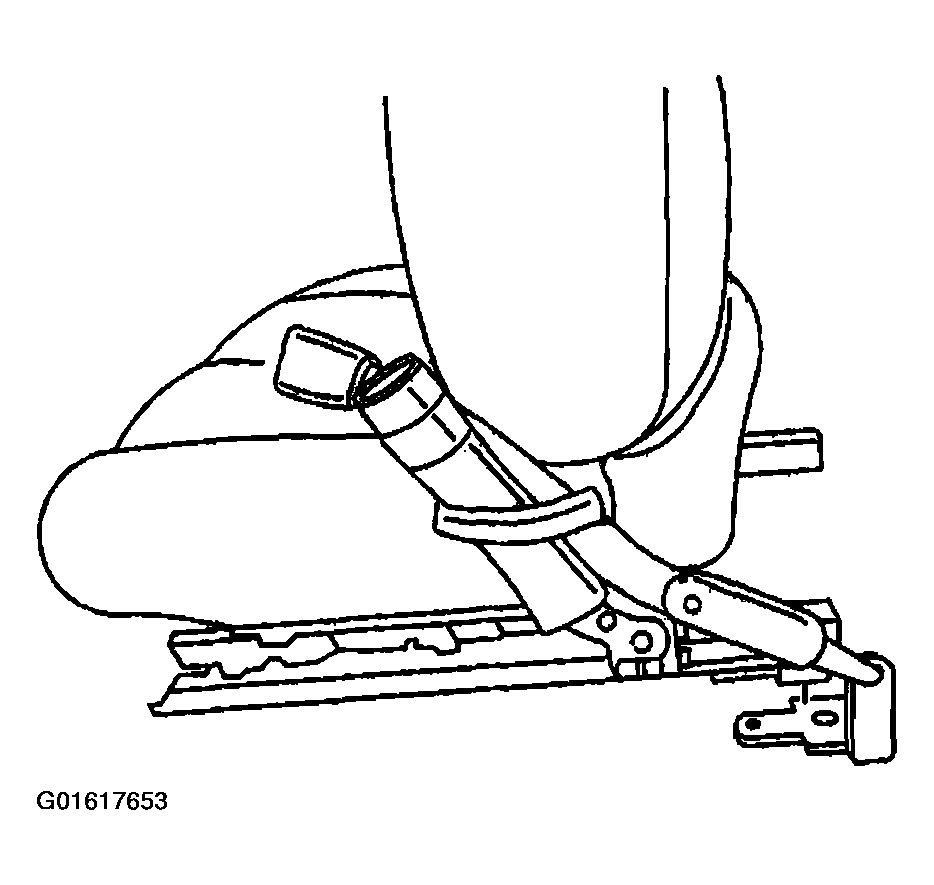

    Fig 1: Seat Belt Buckle
    G01617653Courtesy of GENERAL MOTORS CORP.
