Test Description

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table:

  1. Tests to see if the scan tool powers up
  2. Tests to see if the scan tool can communicate with the inflatable restraint sensing and diagnostic module (SDM)
  3. Test to see if the Driver Side Belt Status parameter displays buckled
  4. Test to see if DTC 001 is present in the body control module (BCM)

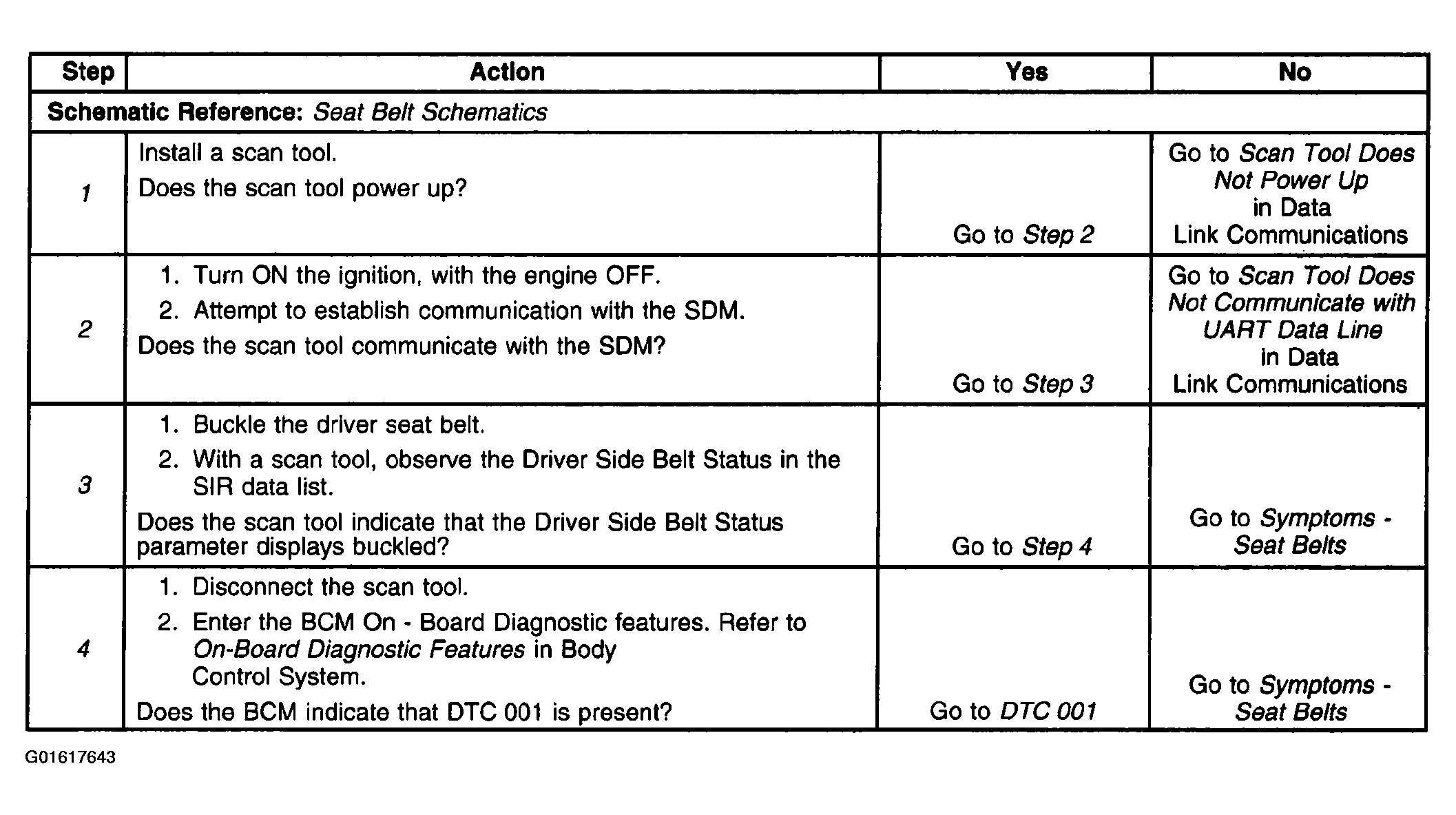

Fig 1: Diagnostic System Check - Seat Belts
G01617643Courtesy of GENERAL MOTORS CORP.
