Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove passenger-side knee bolster. Remove Connector Position Assurance (CPA) clip and disconnect passenger-side air bag module connector. See Fig 1. Remove air bag module bolts. Remove passenger-side air bag module by pushing outward from rear side of instrument panel.
  3. To install, reverse removal procedure. Tighten passenger-side air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

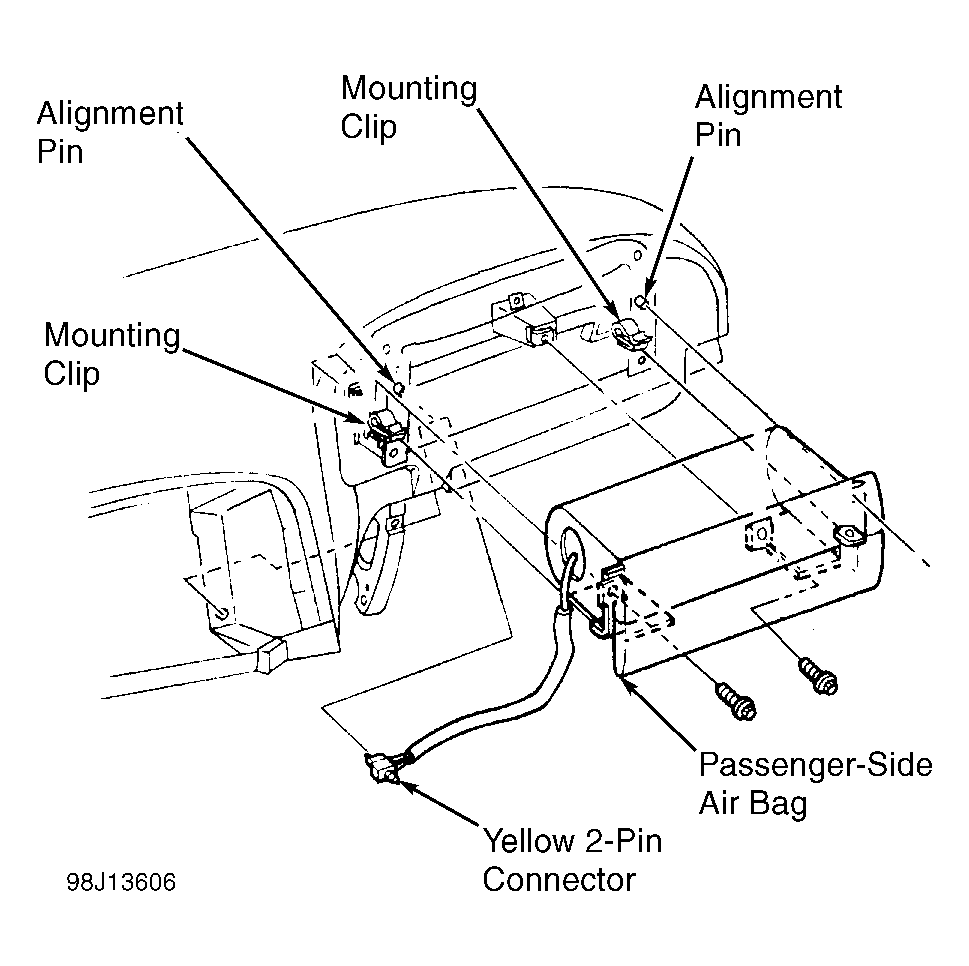

Fig 1: Identifying Passenger-side Air Bag Module
G98J13606Courtesy of GENERAL MOTORS CORP.
