Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SLIDING DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR  .
  3. Remove the upper access cover (cargo van). Refer to ACCESS COVER REPLACEMENT - CARGO VAN UPPER  .
  4. Disconnect the electrical connector (5) from the lock assembly.
  5. Disconnect the electrical connectors (2) from the contact switch.

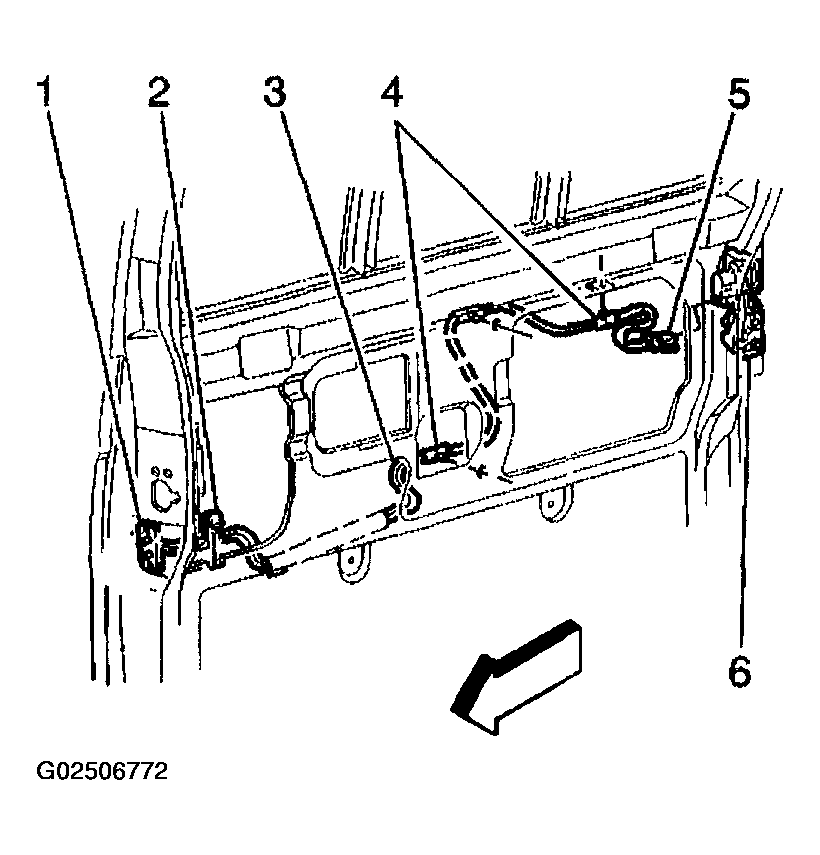

    6. Fig 1: Removing & Installing Sliding Door Wiring Harness
    G02506772Courtesy of GENERAL MOTORS CORP.
  6. Remove the harness clips from the door (4).
  7. Remove the wiring harness from the door (3).
