Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the necessary interior trim in order to access the weatherstrip. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.
  2. Pull the weatherstrip from the pinchweld flange, starting at the upper right corner.

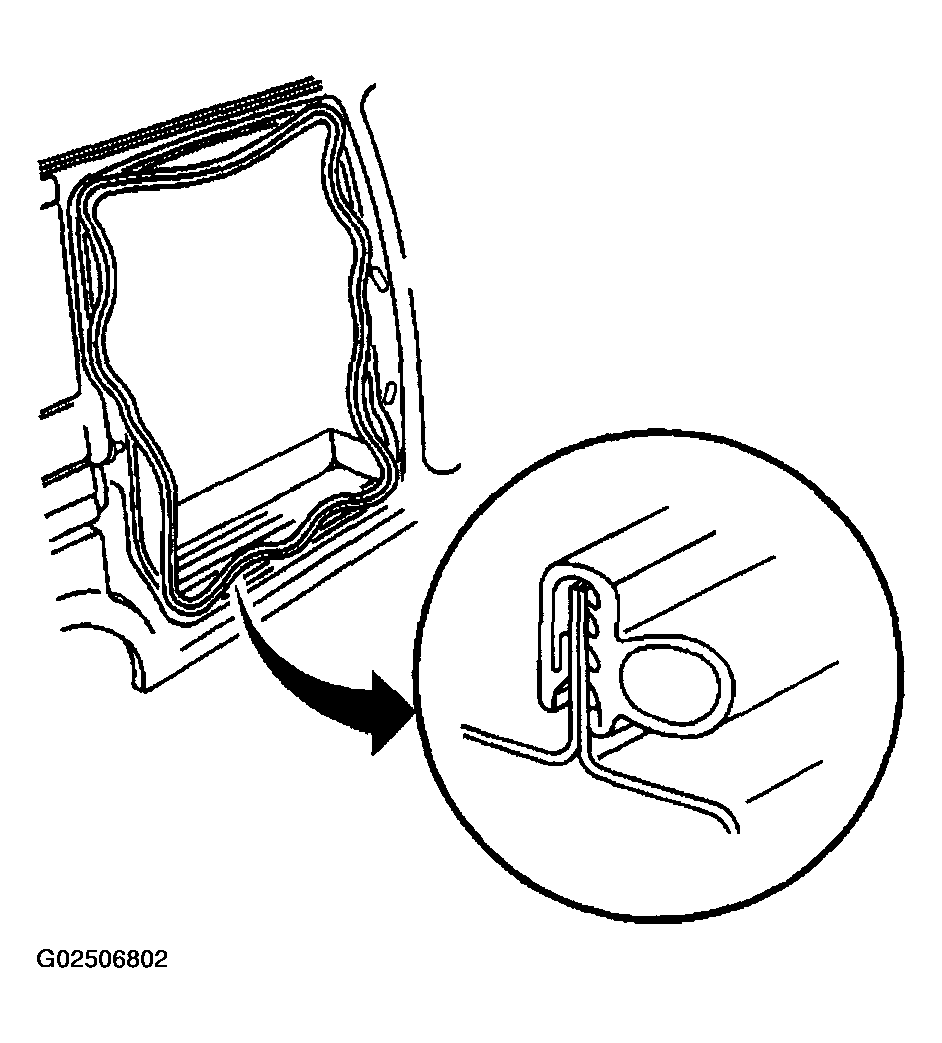

    3. Fig 1: Removing & Installing Sliding Door Weatherstrip
    G02506802Courtesy of GENERAL MOTORS CORP.
