Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the interior garnish moldings.
  2. Use the J 38778 in order to pull the weatherstrip from the pinchweld flange of the door. Start at the upper right corner (6), and pull the weatherstrip down (5, 4). Keep pulling the weatherstrip (3) until you reach the top (1) of the door, and have pulled the weatherstrip free.

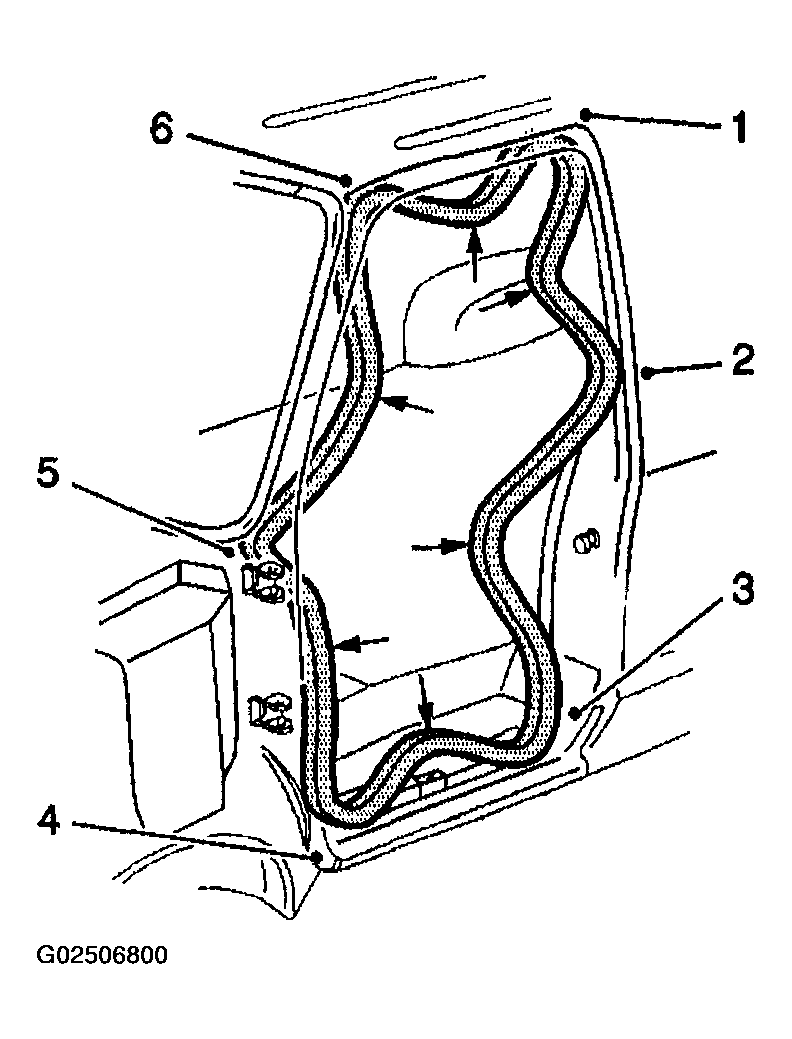

    3. Fig 1: Removing & Installing Front Door Weatherstrip
    G02506800Courtesy of GENERAL MOTORS CORP.
