Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the inside handle bezel (1) to the door.

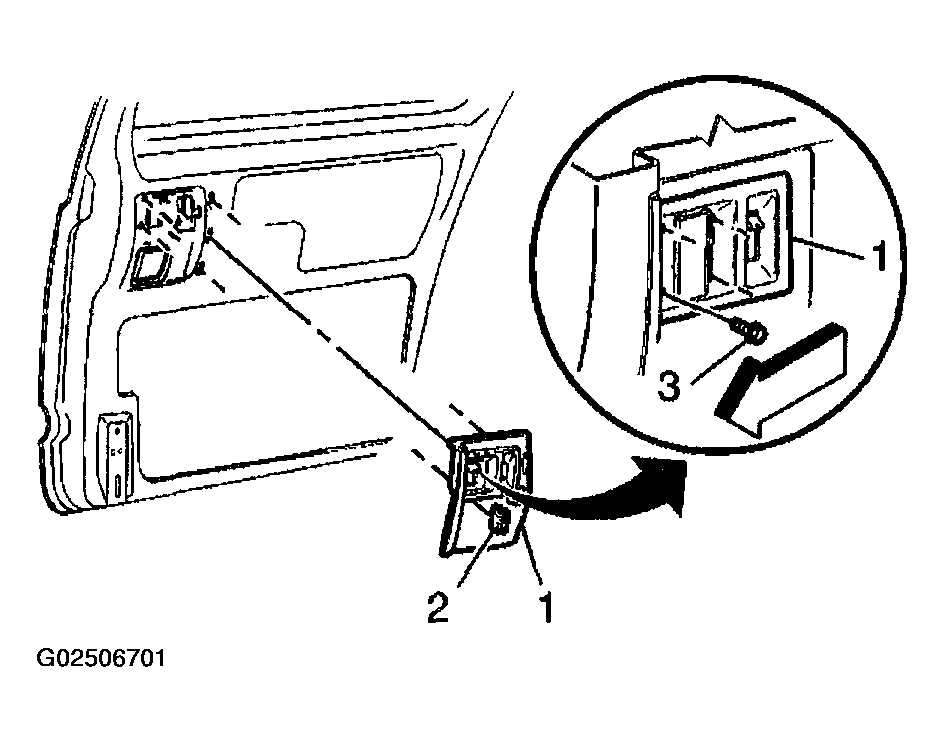

    Fig 1: Removing & Installing Inside Door Handle Bezel
    G02506701Courtesy of GENERAL MOTORS CORP.
  2. Pull in order to disengage the clips (2) and remove the inside handle bezel (1).
  3. Remove the garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.
  4. Use J 38778 in order to release the trim panel retainers.
  5. Remove the sliding door trim panel.

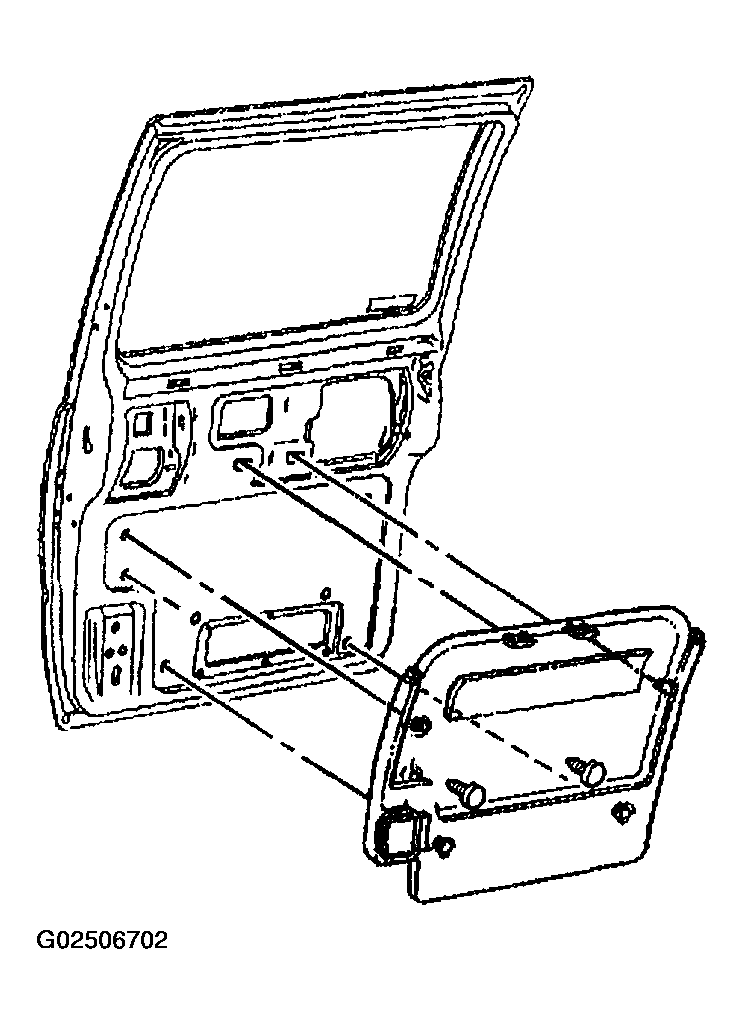

    6. Fig 2: Removing & Installing Sliding Door Trim Panel
    G02506702Courtesy of GENERAL MOTORS CORP.
