Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right hand body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE in Interior Trim.
  2. Remove the two bolts that retain the rear storage compartment, if equipped.
  3. Remove the bolts (5).
  4. Remove the striker (4).
  5. Remove the spacer (3).
  6. Remove the washer (2).
  7. Remove the nut plate (1).

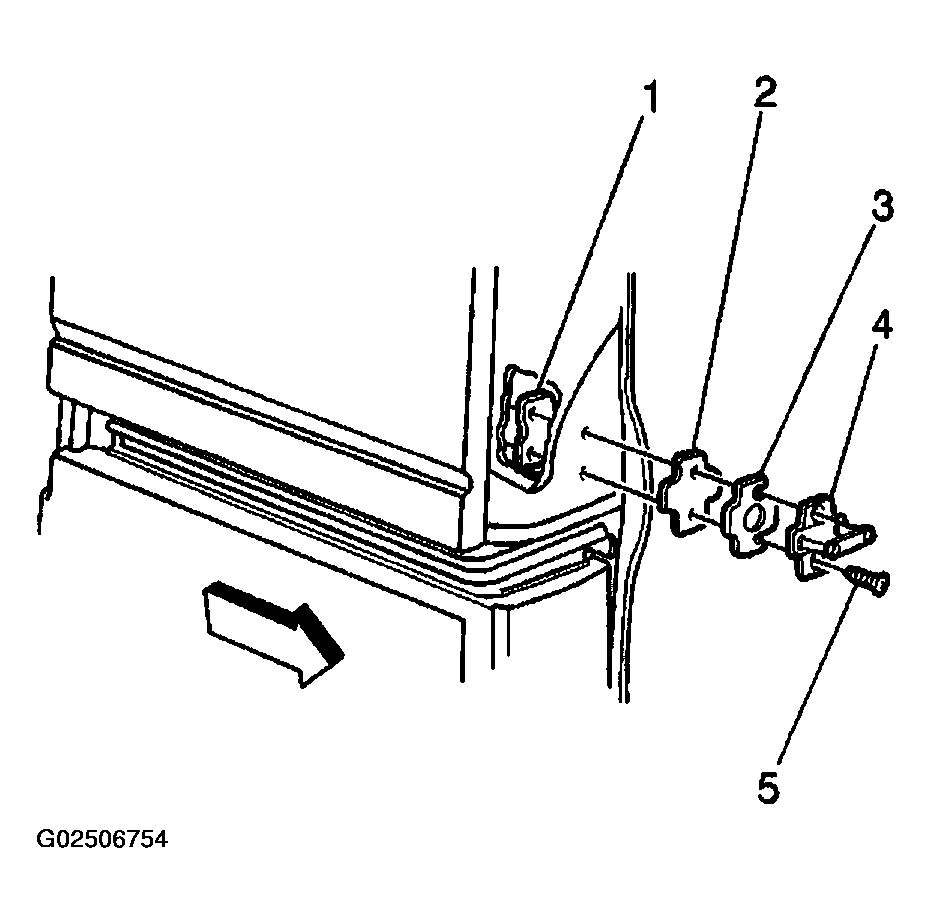

    8. Fig 1: Removing & Installing Sliding Door Rear Striker
    G02506754Courtesy of GENERAL MOTORS CORP.
