Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shoulder belt guide bolt from the door pillar. Refer to SEAT BELT RETRACTOR REPLACEMENT - RIGHT REAR in Seat Belts.
  2. Pull the trim panel forward and reach behind the trim panel to the striker bolt nut in order to remove the screw at the bottom of the door pillar trim.
  3. Remove the striker bolt (4).
  4. Remove the striker nut (1).

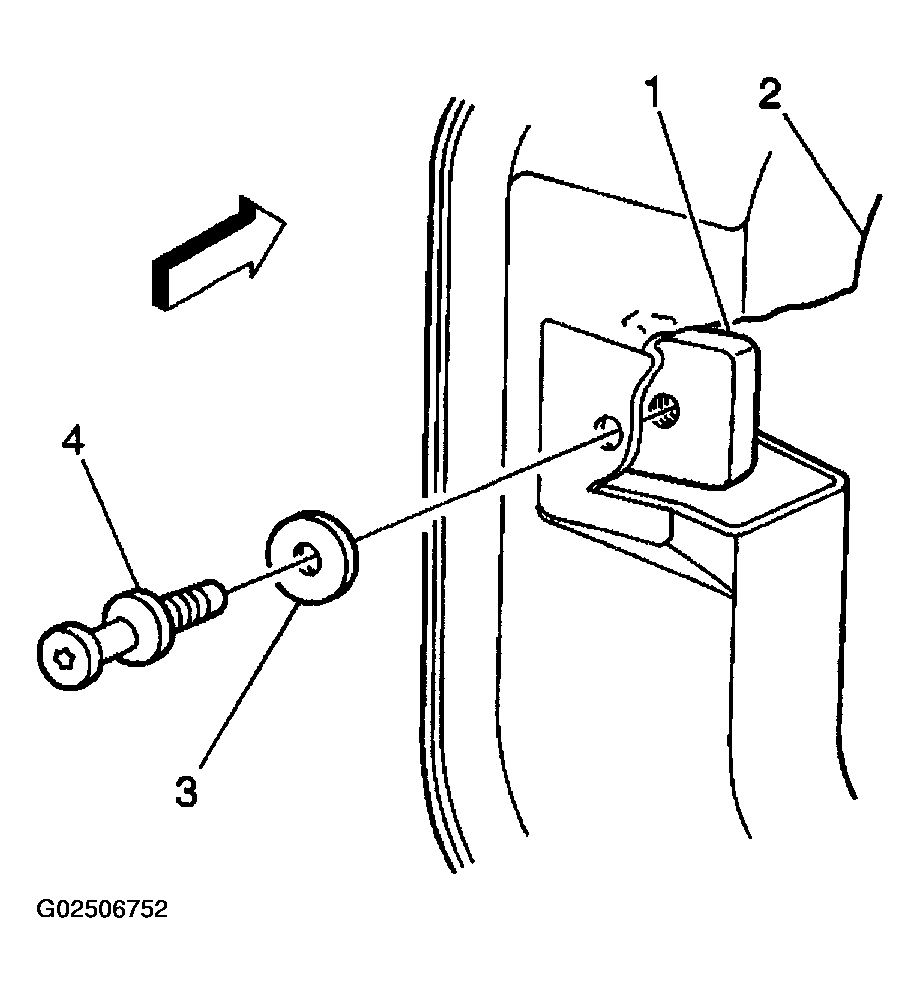

    5. Fig 1: Removing & Installing Sliding Door Front Striker Bolt
    G02506752Courtesy of GENERAL MOTORS CORP.
