Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the molding (1) from the molding flange.
  2. Remove the molding (1).

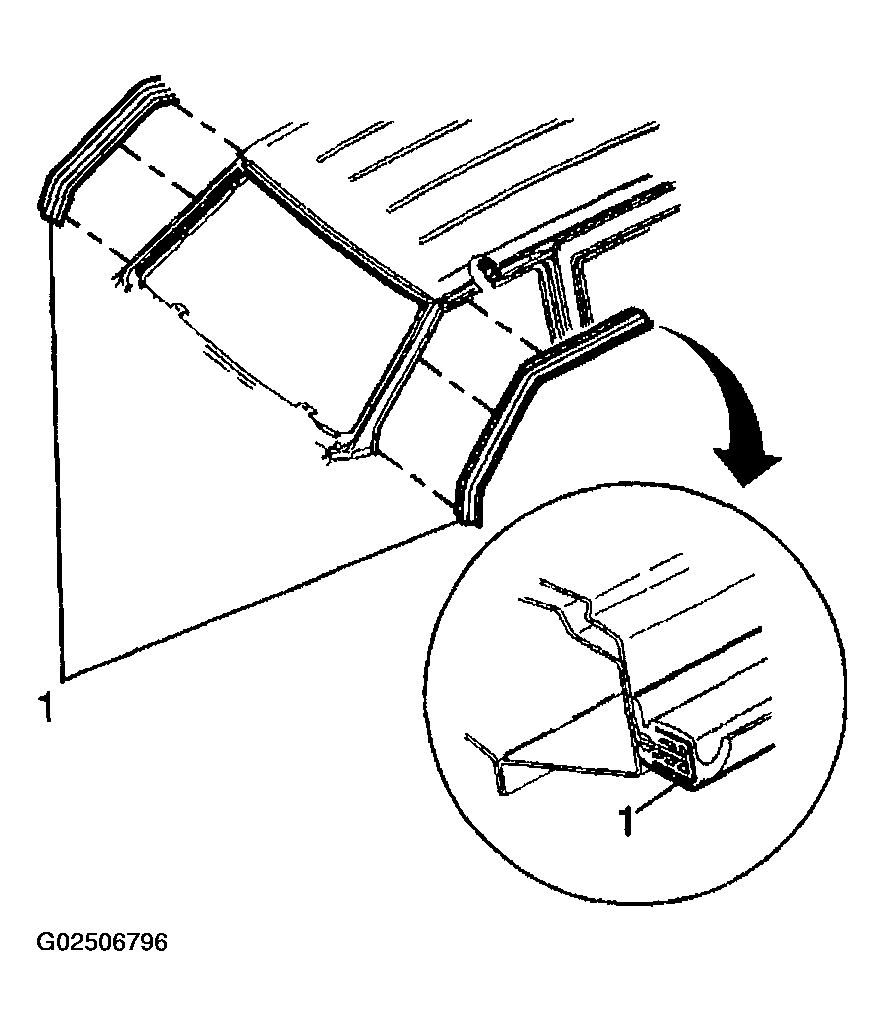

  3. Fig 1: Removing & Installing Front Door Upper Sealing Strip
    G02506796Courtesy of GENERAL MOTORS CORP.
