Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper roller bracket garnish molding.
  2. Remove the rubber stopper from the upper roller track.
  3. Remove the front cap.
  4. Remove the bracket (1) to door bolts (4).
  5. Remove the upper roller bracket from the track.

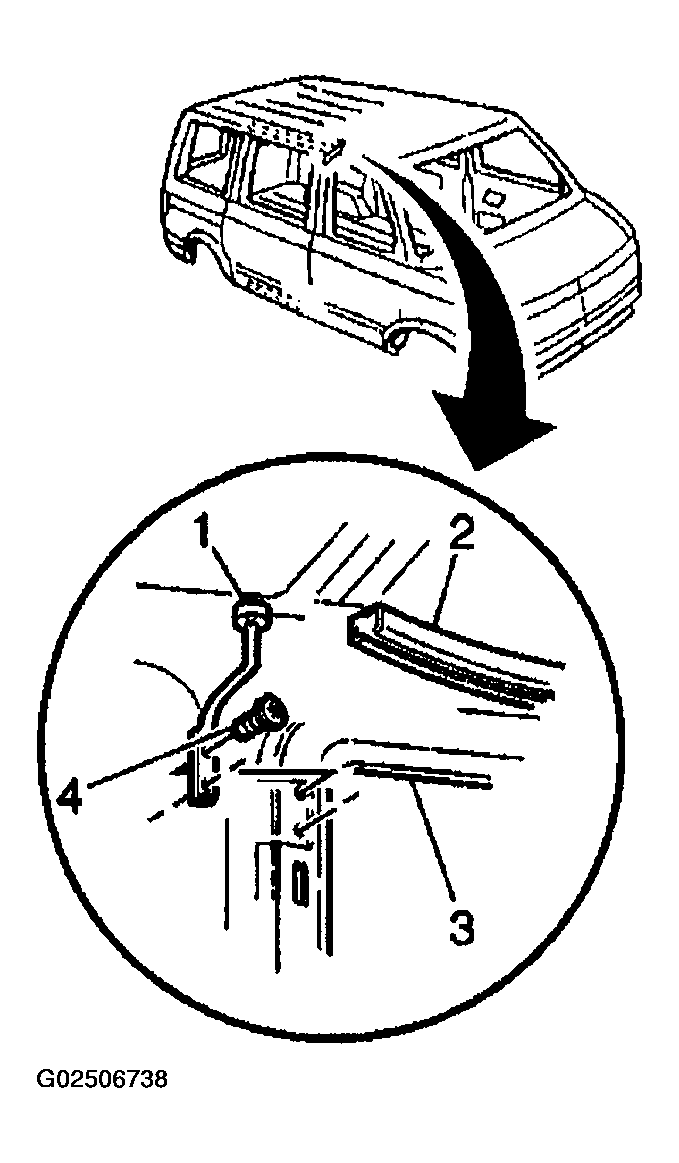

    6. Fig 1: Removing & Installing Upper Roller Bracket-To-Sliding Door Bolts
    G02506738Courtesy of GENERAL MOTORS CORP.
