Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the upper roller bracket (1) to the track.
Install the bracket to door and bolts (4). Tighten: Tighten the bracket bolts to the door to 25 N.m (18 lb ft).
Install the front cap.
Install the rubber stopper to the upper roller track.
Install the upper roller bracket garnish molding.

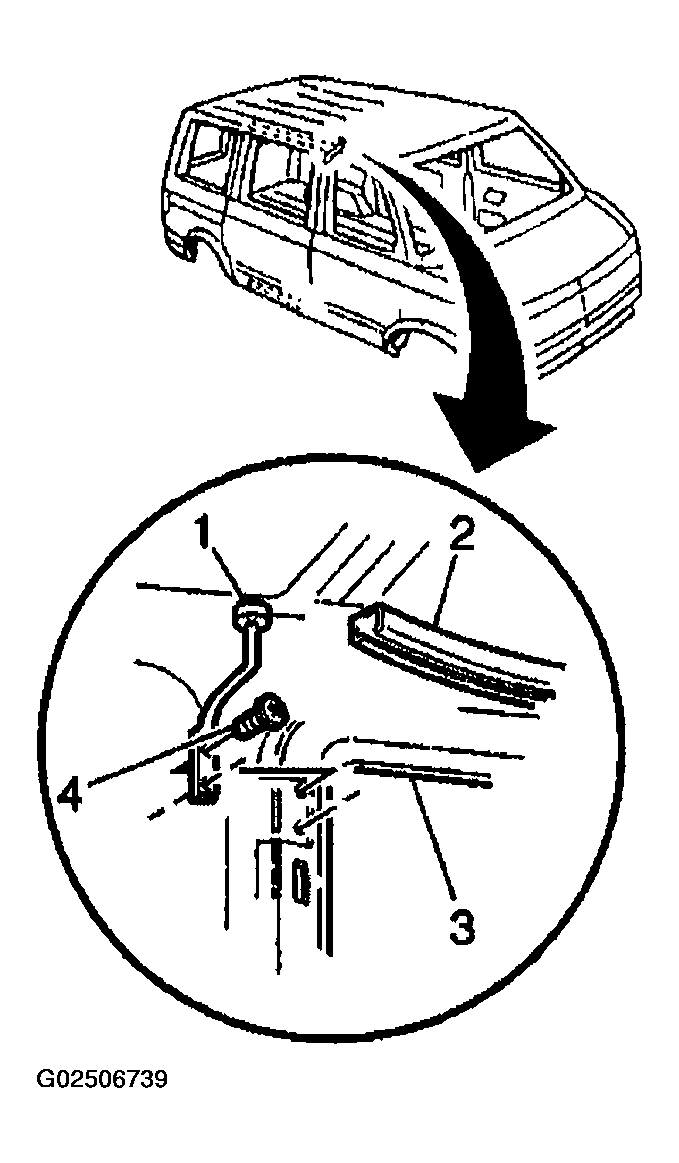

Fig 1: Removing & Installing Upper Roller Bracket-To-Sliding Door Bolts

Courtesy of GENERAL MOTORS CORP.
