Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center roller track cover. Refer to CENTER TRACK COVER REPLACEMENT - SLIDING DOOR  .
  2. Position the sliding door inward for door clearance. Remove the bolts (5) that retain the center roller bracket (2) to the door.
  3. Disconnect the retaining spring located around the pin in order to release.
  4. Support the sliding door at the bottom rear corner.
  5. Slide the bracket rearward.
  6. Remove the bracket (2) from the center roller track.

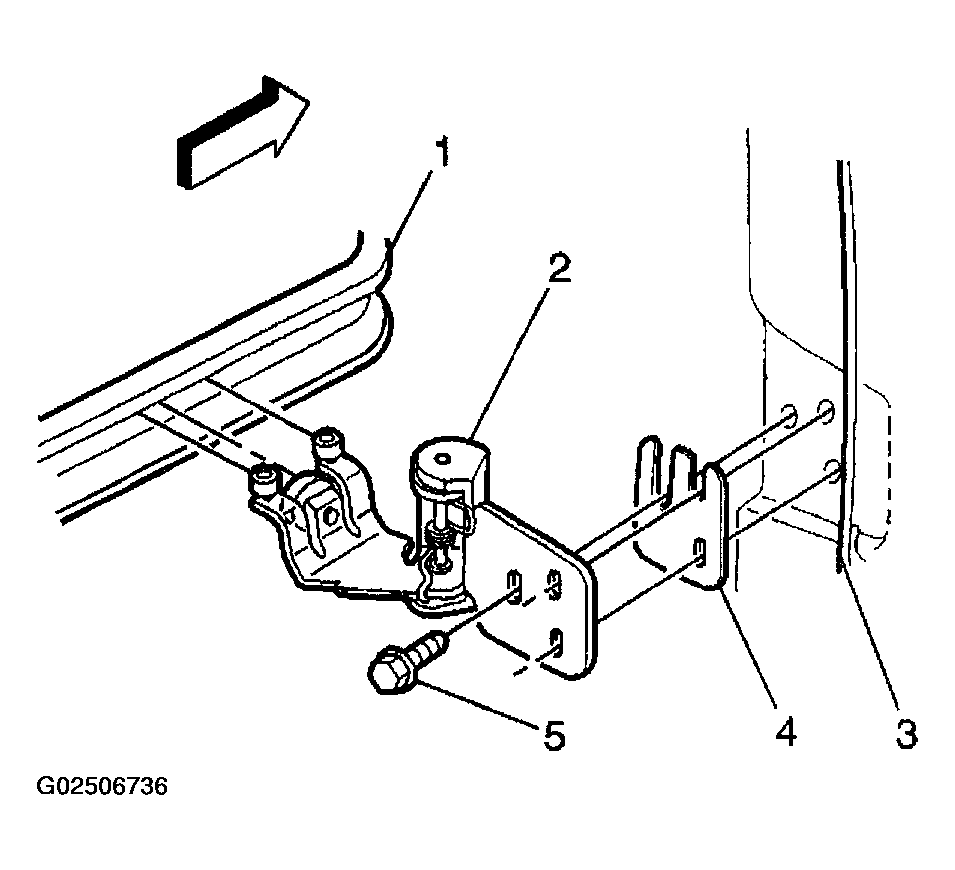

    7. Fig 1: Removing & Installing Center Roller Bracket-To-Sliding Door Bolts
    G02506736Courtesy of GENERAL MOTORS CORP.
