Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bracket (2) to the center roller track.
  2. Slide the bracket forward.
  3. Remove the support from the sliding door.
  4. Push the retaining pin back in place.
  5. Check the retaining spring located around the pin for damage. If damaged, replace the spring.
    6. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the bolts (5) that retain the center roller bracket to the door. Tighten:  Tighten the center roller bracket retaining bolts to 35 N.m (26 lb ft).
  7. Install the center roller track cover. Refer to CENTER TRACK COVER REPLACEMENT - SLIDING DOOR  .

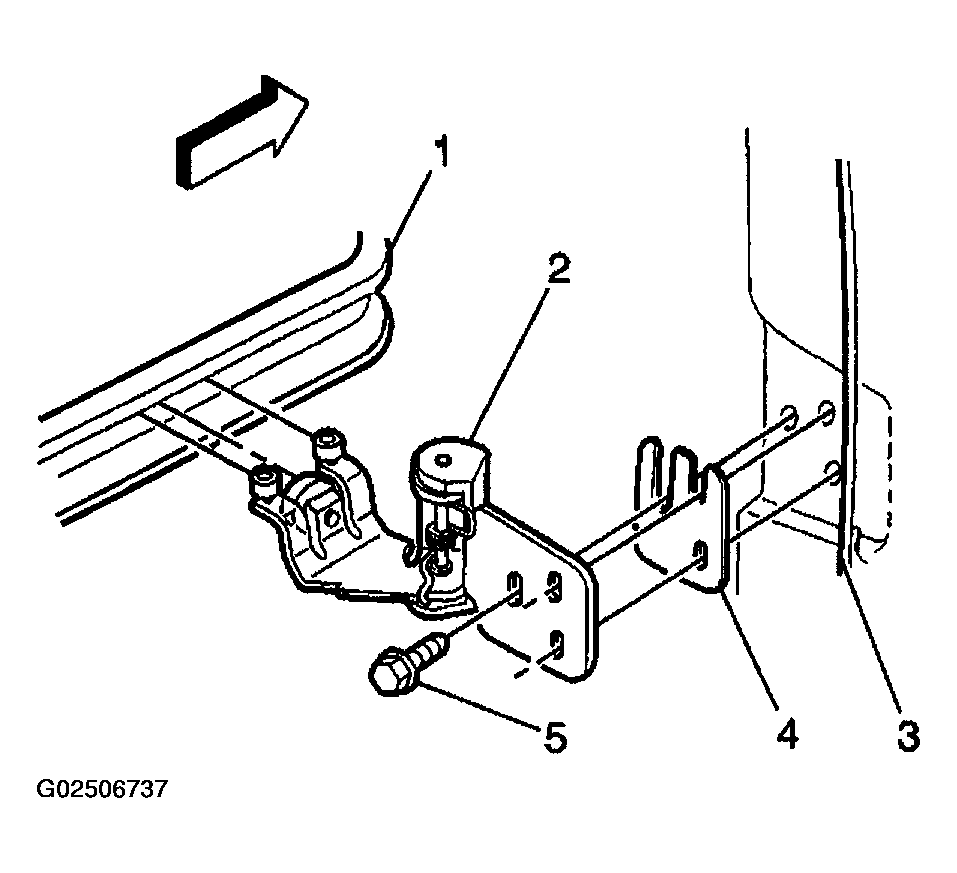

    8. Fig 1: Removing & Installing Center Roller Bracket-To-Sliding Door Bolts
    G02506737Courtesy of GENERAL MOTORS CORP.
