Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door window belt filler.
  2. Remove the sound insulator patch.
  3. Disconnect the electrical connector, if equipped.
  4. Remove the nuts (1) from the mirror.
  5. Remove the mirror (2) from the door.

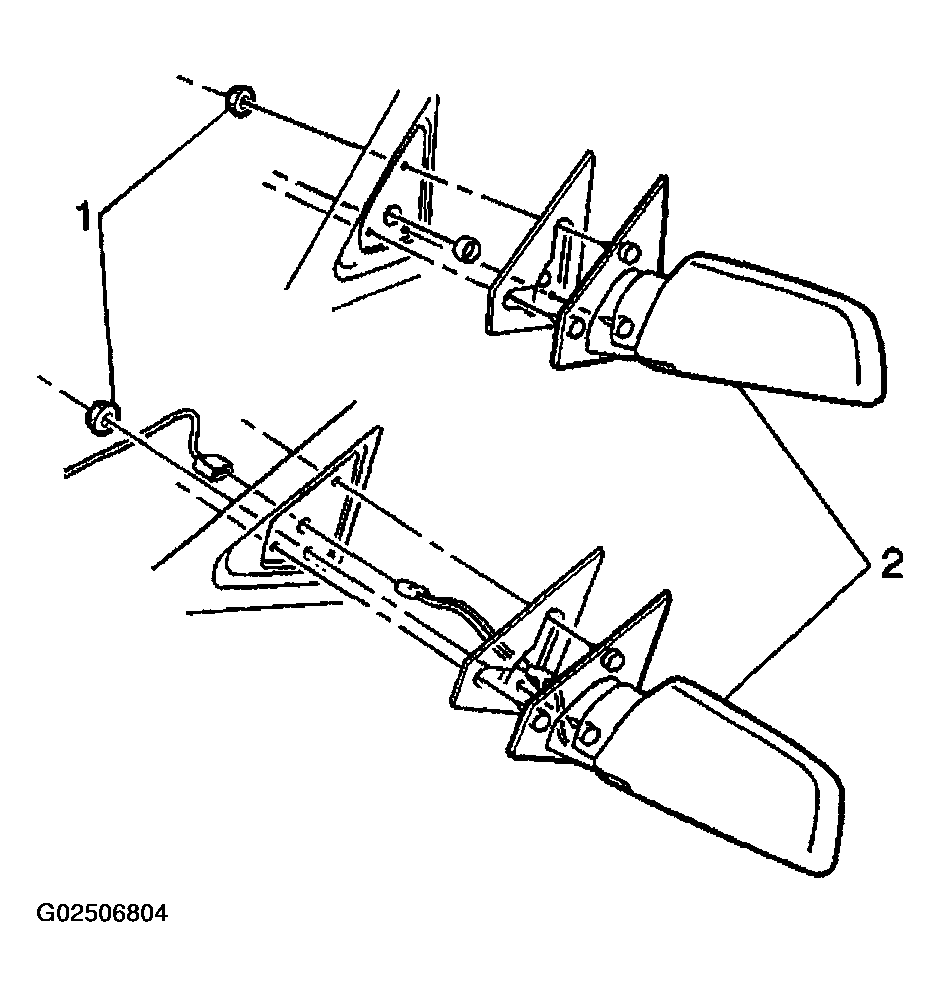

    6. Fig 1: Removing & Installing Mirror
    G02506804Courtesy of GENERAL MOTORS CORP.
