Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .
  2. Use a sharp bladed tool in order to separate the water deflector at the perforations. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the lock rods from the front door lock.

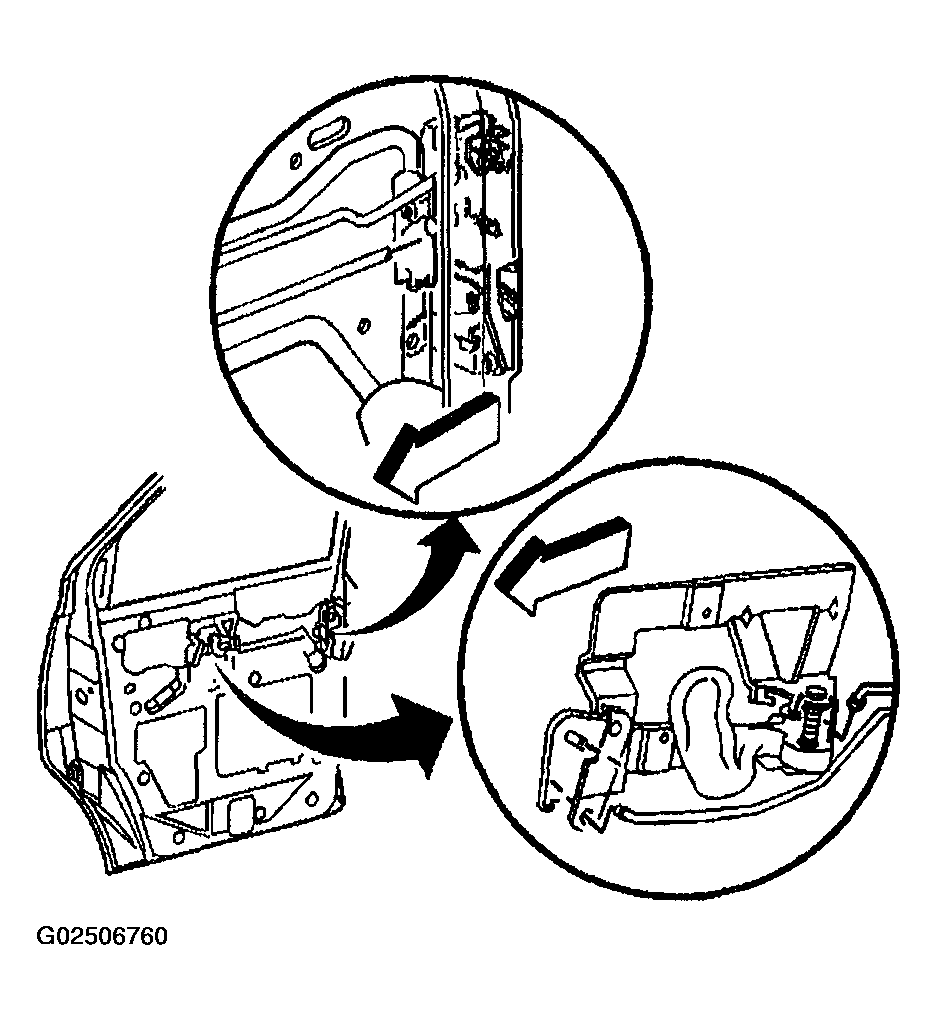

    4. Fig 1: Removing & Installing Front Door Lock Lever
    G02506760Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door lock screws.
  5. Remove the front door lock from the door.

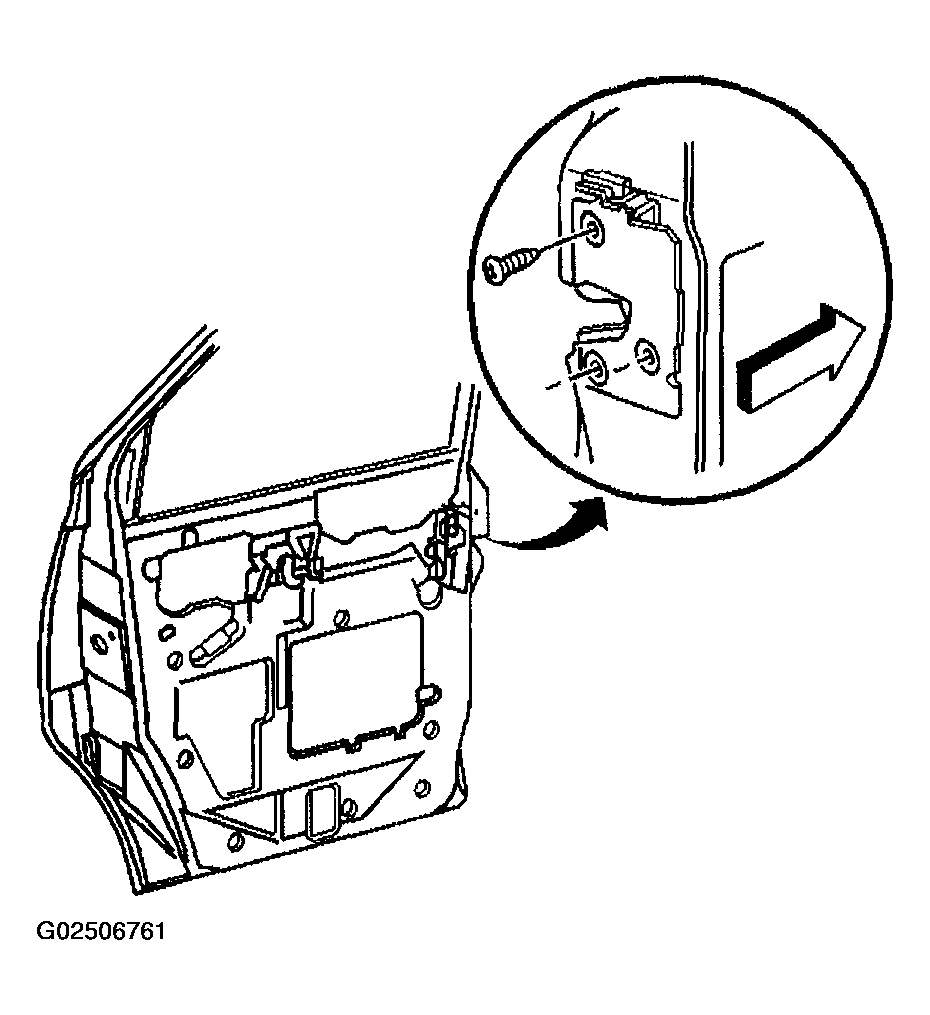

    6. Fig 2: Removing & Installing Front Door Lock
    G02506761Courtesy of GENERAL MOTORS CORP.
