Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SLIDING DOOR  .
  2. Remove the lock rod from the lock assembly to the lock control.
  3. Remove the lock rod from the lock cylinder to the lock control.
  4. Remove the lock rod from the outside handle to the lock control.
  5. Remove the lock control bolts (2).
  6. Remove the lock control (1) from the door.

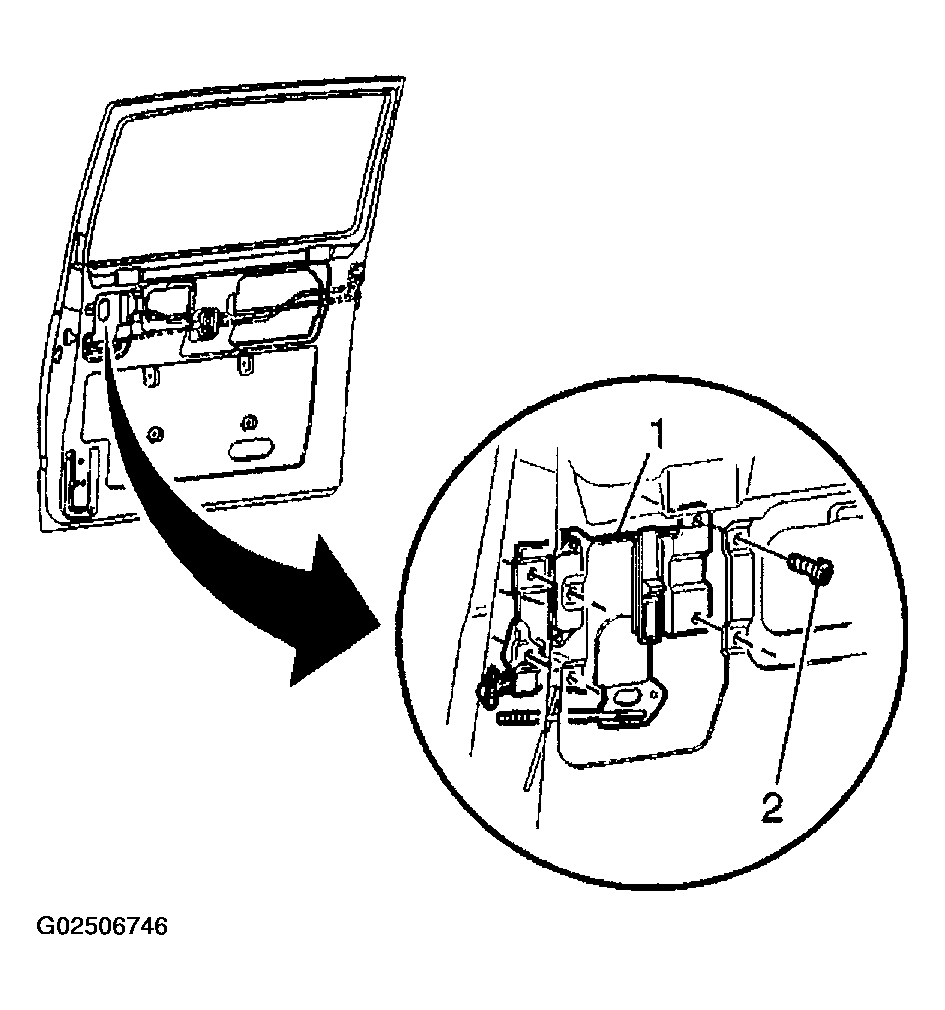

    7. Fig 1: Removing & Installing Sliding Door Lock Lever
    G02506746Courtesy of GENERAL MOTORS CORP.
