Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install new plastic retainer clips whenever the lock rods are removed.

Install the lock rod lever to the door.
Install the remote lock lever to the clip (2).
Use the M 39010 in order to install door rivets.

Fig 1: Removing & Installing Remote Lock Lever

Courtesy of GENERAL MOTORS CORP.

Install the lock rods to the remote lock lever.
Install the water deflector and the armrest bracket. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

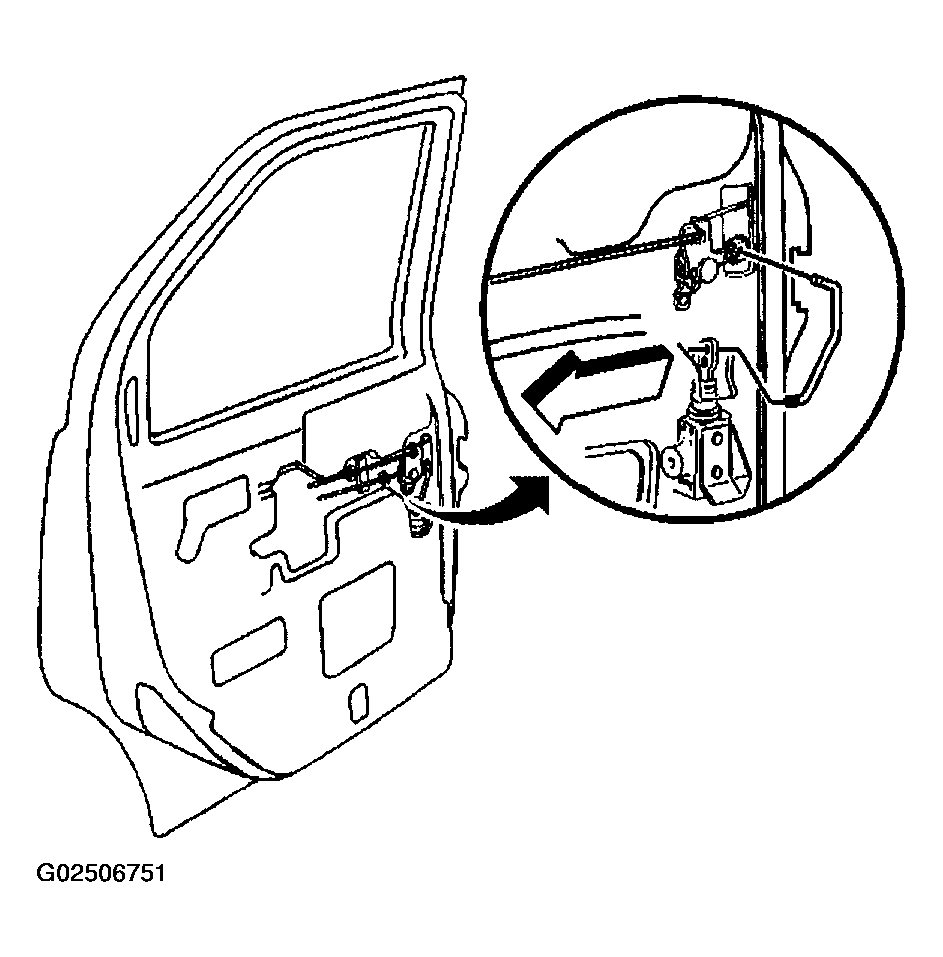

Fig 2: Removing & Installing Remote Lock Lever Lock Rods

Courtesy of GENERAL MOTORS CORP.
