Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
Remove the lock rod from the lock lever clip (2).

Fig 1: Removing & Installing Front Door Lock Rod From Lock Lever Clip
Courtesy of GENERAL MOTORS CORP.
Remove the bolts that retain the lever to the door.

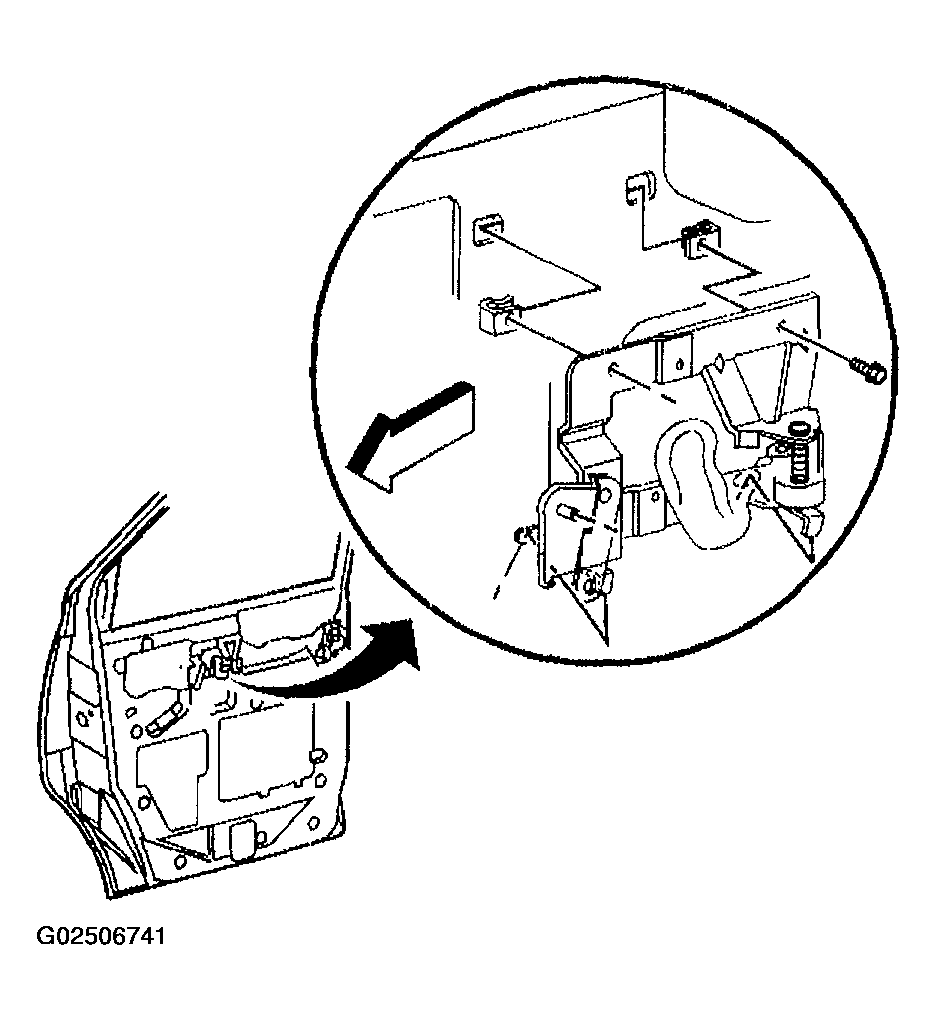

Fig 2: Removing & Installing Front Door Lock Lever Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the lock lever from the door.

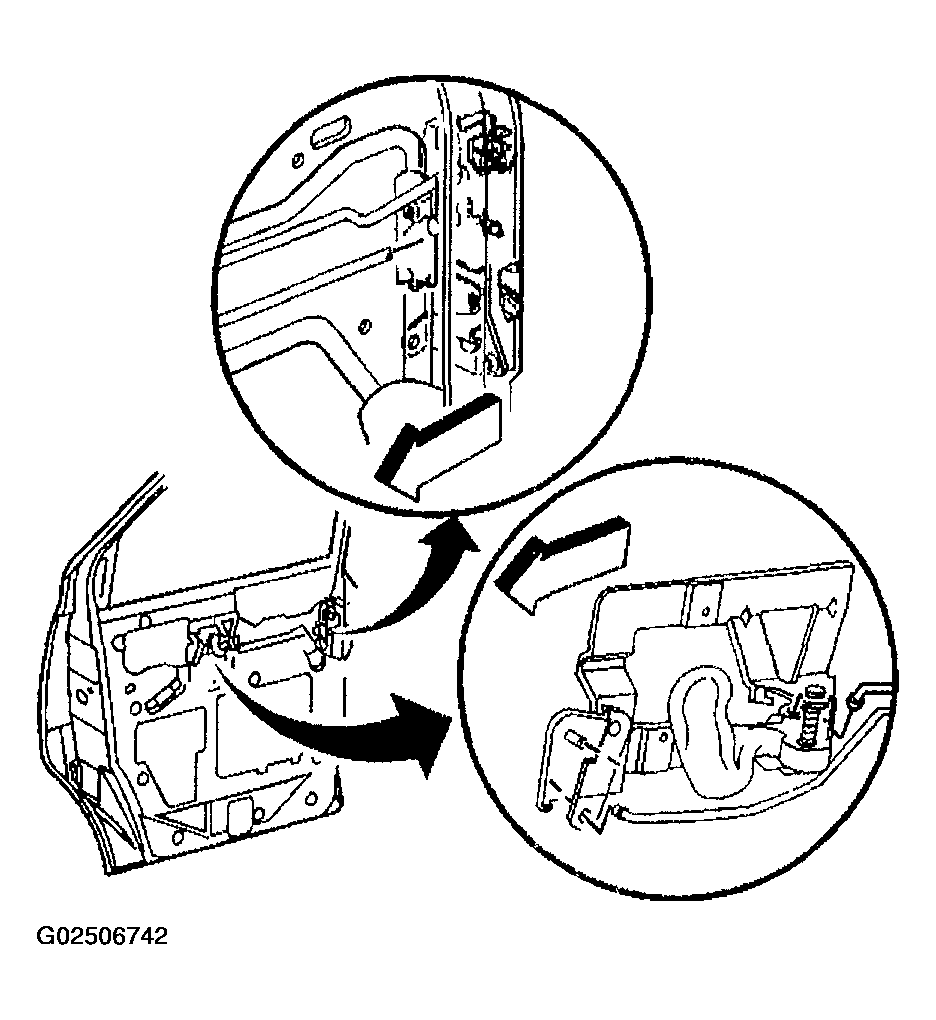

Fig 3: Removing & Installing Front Door Lock Lever
Courtesy of GENERAL MOTORS CORP.
