Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .
  2. Remove the water deflector.
  3. Remove the lock rod from the lock cylinder (3).
  4. Remove the lock rod retainer (1).
  5. Remove the lock cylinder and gasket (2).

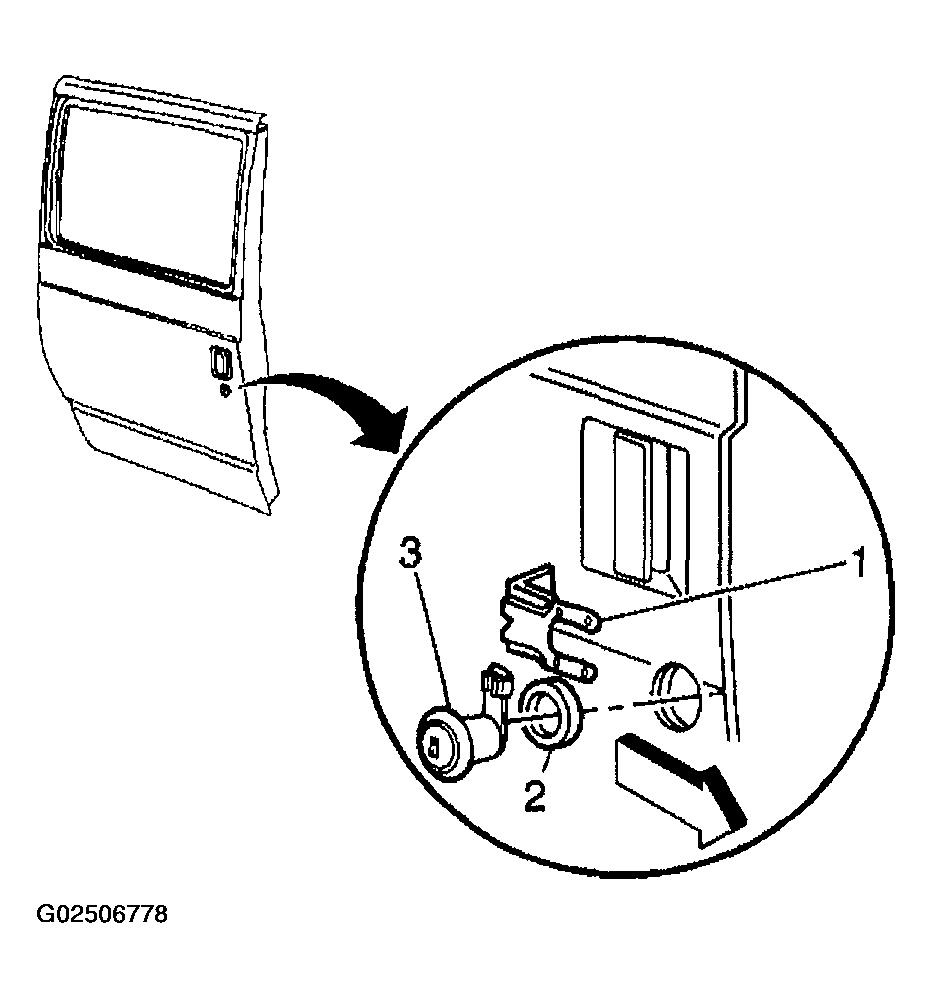

    6. Fig 1: Removing & Installing Rear Door Lock Cylinder
    G02506778Courtesy of GENERAL MOTORS CORP.
