Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the door for removal, with an assistant.
  2. Remove the center track cover. Refer to CENTER TRACK COVER REPLACEMENT - SLIDING DOOR  .

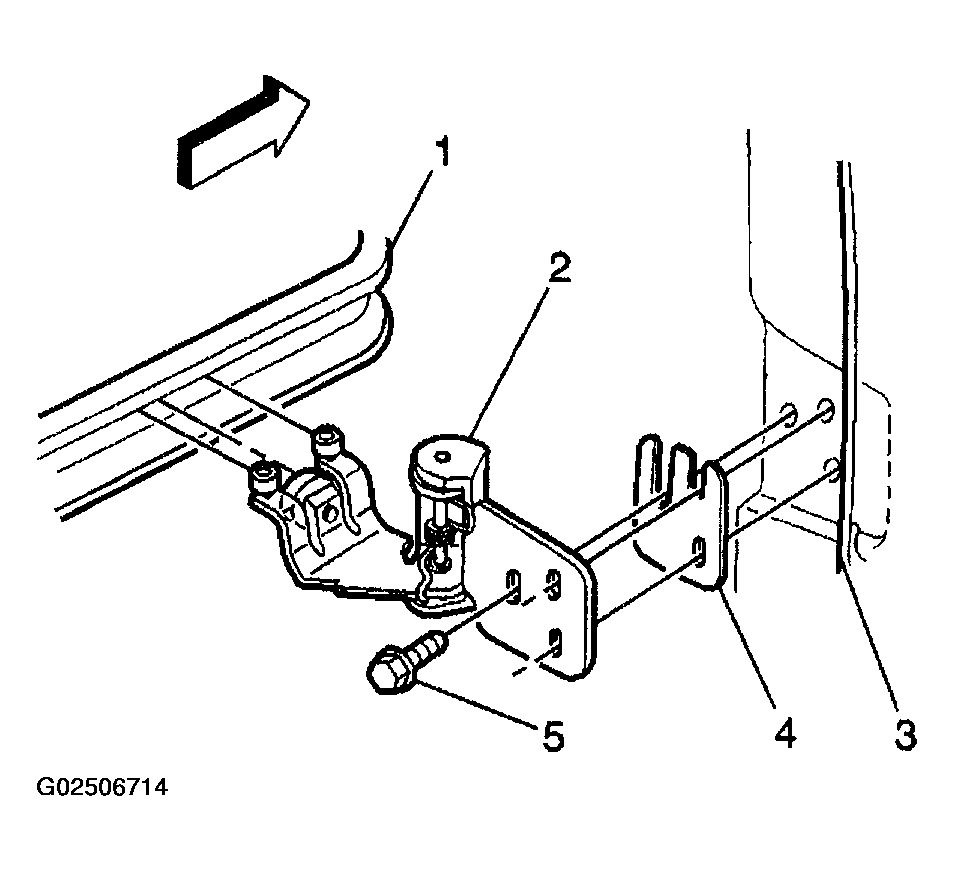

    3. Fig 1: Removing & Installing Center Roller Bracket-To-Sliding Door Bolts
    G02506714Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts (5) from the center roller bracket (2) that attach to the door (3).
  4. Remove the bolts (3) from the lower roller bracket (2) that attach to the door (1).

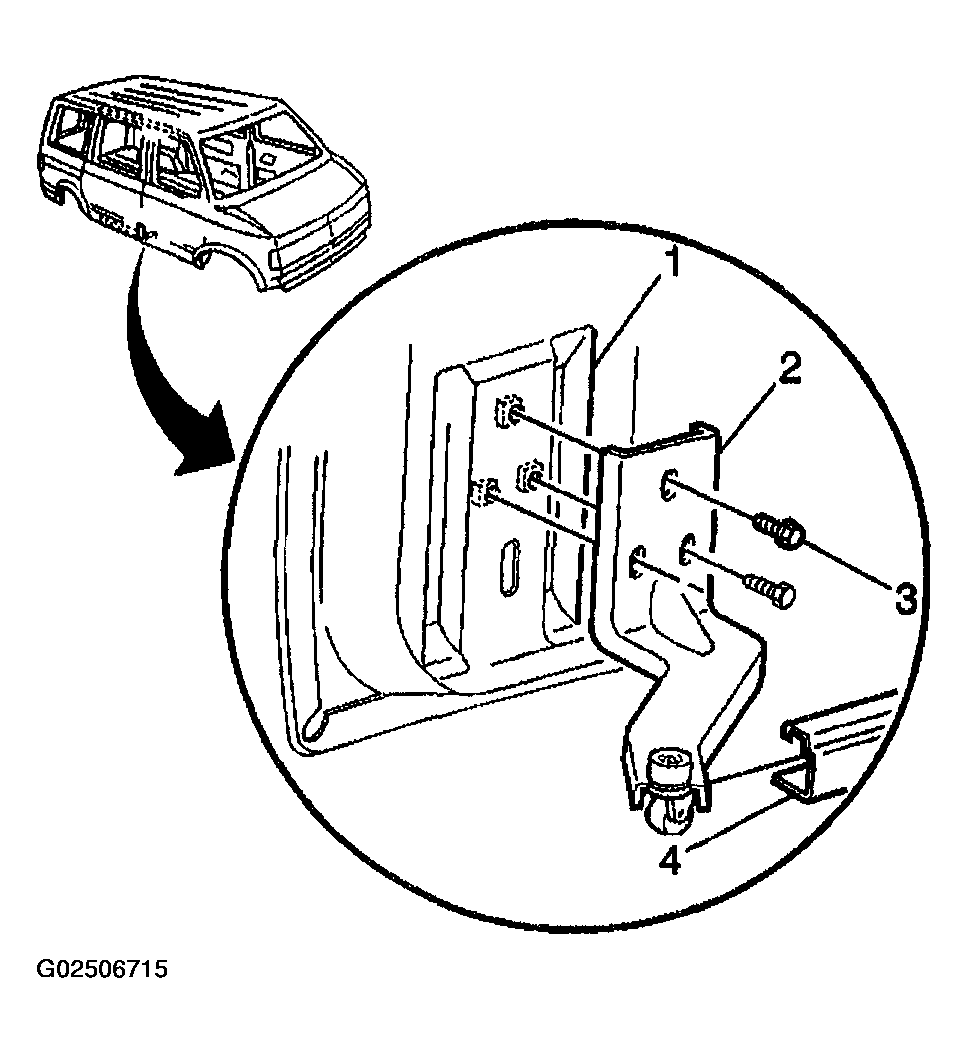

    5. Fig 2: Removing & Installing Lower Roller Bracket-To-Sliding Door Bolts
    G02506715Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts (4) from the upper roller bracket (1) that attach to the door.
  6. Remove the door from the vehicle.

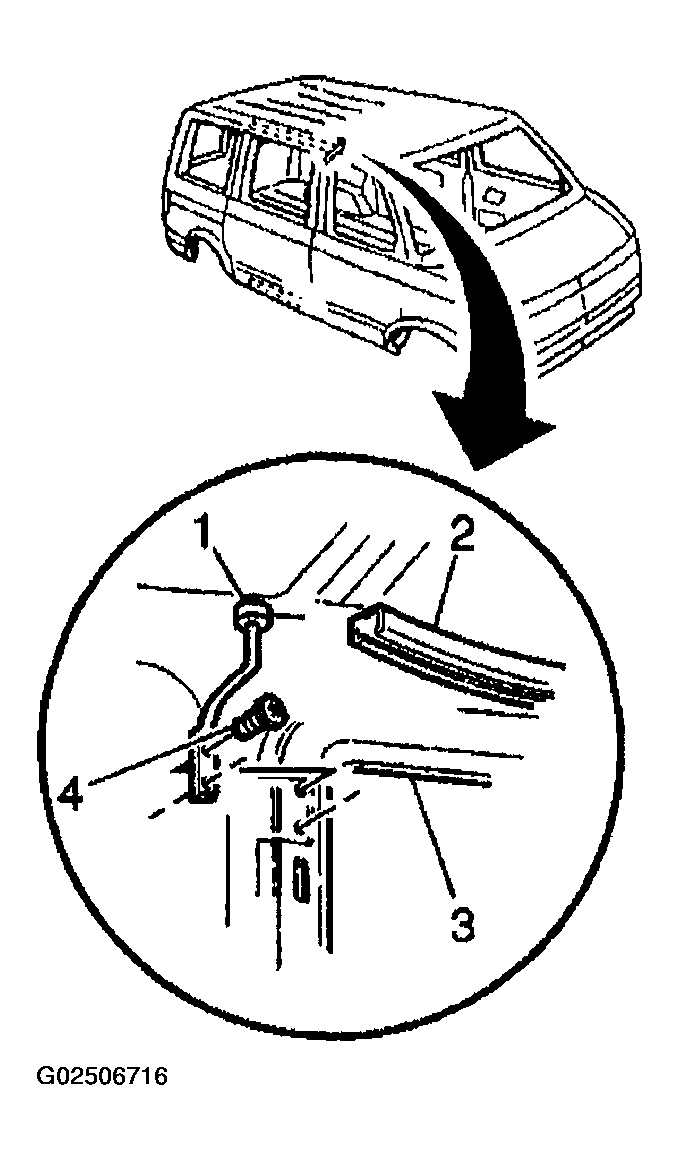

    7. Fig 3: Removing & Installing Upper Roller Bracket-To-Sliding Door Bolts
    G02506716Courtesy of GENERAL MOTORS CORP.
