Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SLIDING DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR  .
  3. Remove the lock control. Refer to LOCK REPLACEMENT - SLIDING DOOR  .
  4. Remove the lock rods from the handle (1).
  5. Remove the outside handle nuts (2).
  6. Remove the outside handle and gasket from the door.

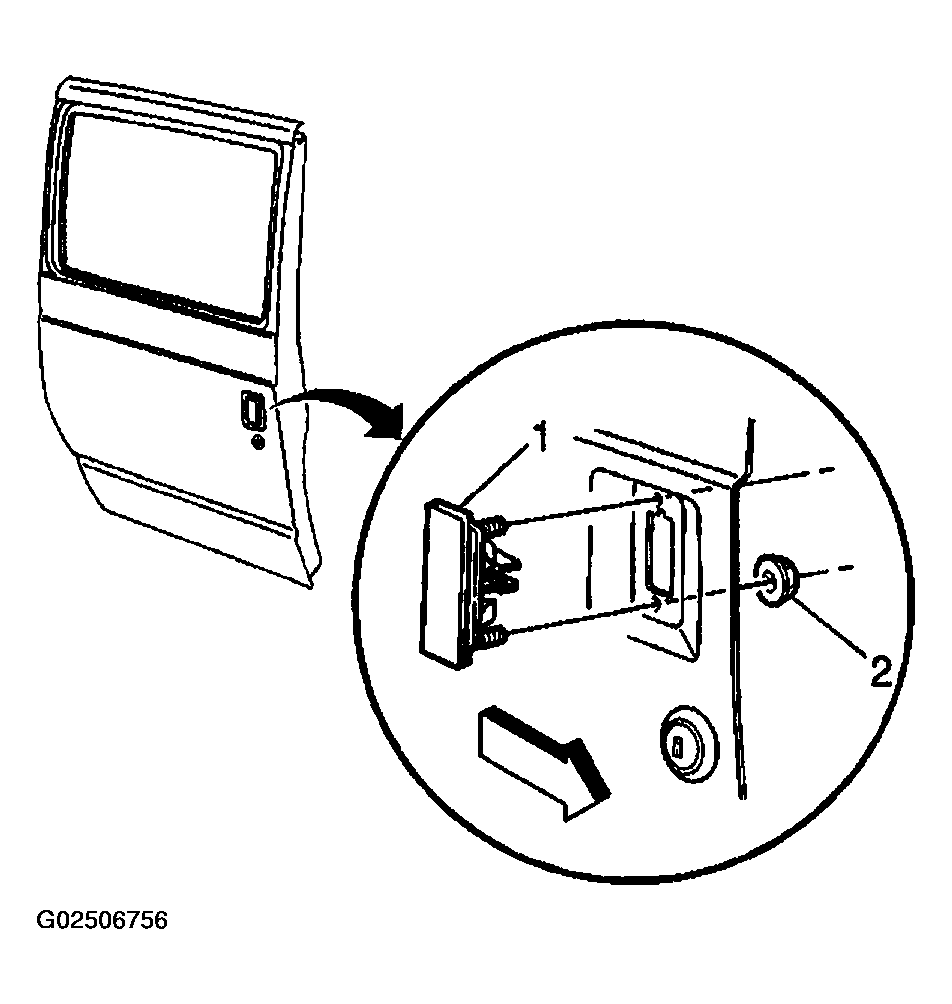

    7. Fig 1: Removing & Installing Sliding Door Outside Handle
    G02506756Courtesy of GENERAL MOTORS CORP.
