Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (3) that retain the upper access cover (2) to the door.
  2. Remove the upper access cover (2) from the door.

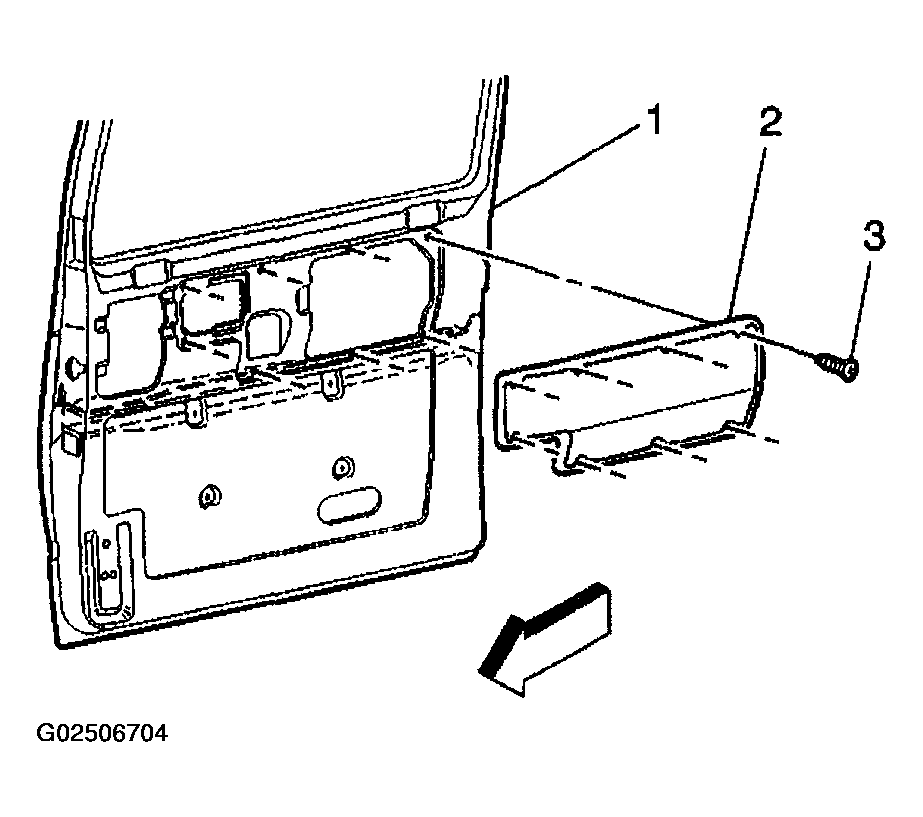

  3. Fig 1: Removing & Installing Cargo Van Upper Access Cover
    G02506704Courtesy of GENERAL MOTORS CORP.
