Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper access cover (2) to the door.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (3) that retain the upper access cover to the door. Tighten:  Tighten the screws that retain the upper access cover to the door to 4 N.m (18 lb in).

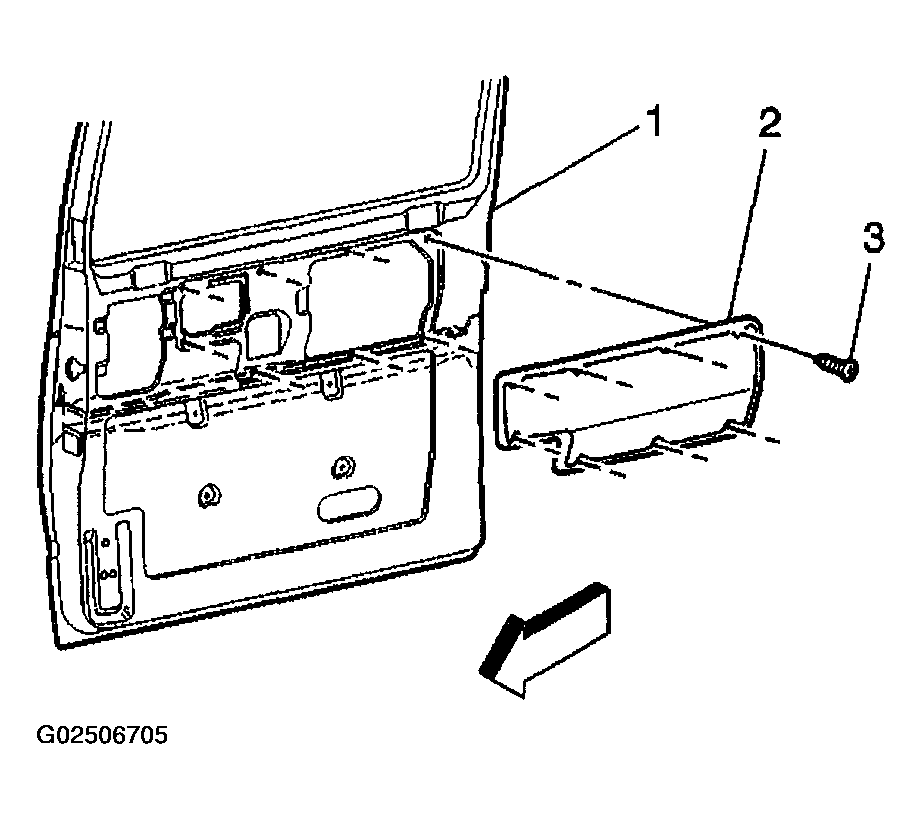

    3. Fig 1: Removing & Installing Cargo Van Upper Access Cover
    G02506705Courtesy of GENERAL MOTORS CORP.
