Test Description

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table:

3. The passenger power window switch on the master switch, shares common accessory voltage and ground circuits with the left front window switch. If the passenger power window operates properly from the master switch the accessory voltage and ground circuits can be presumed good.

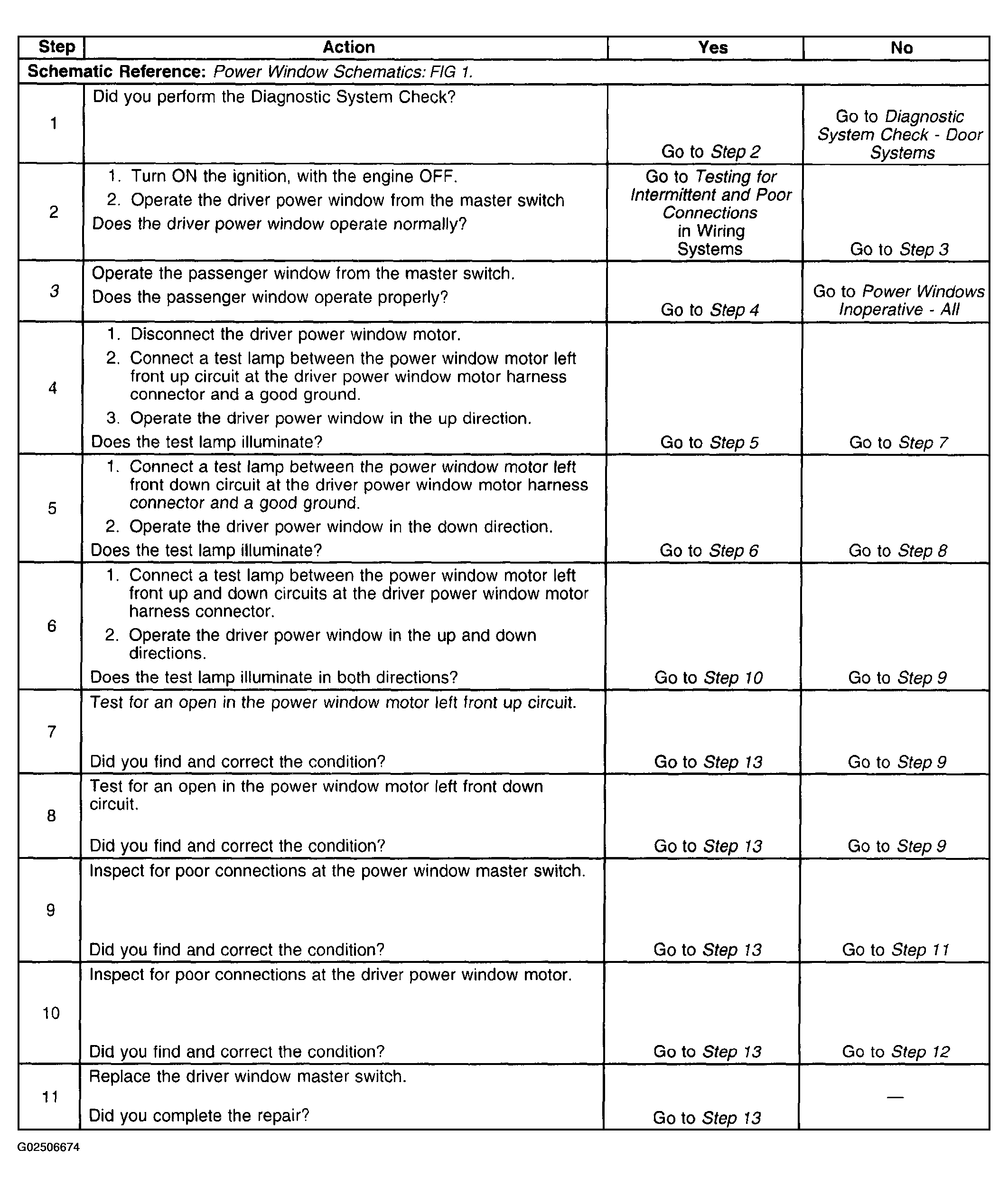

Fig 1: Power Window Inoperative - Driver Door Symptom Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

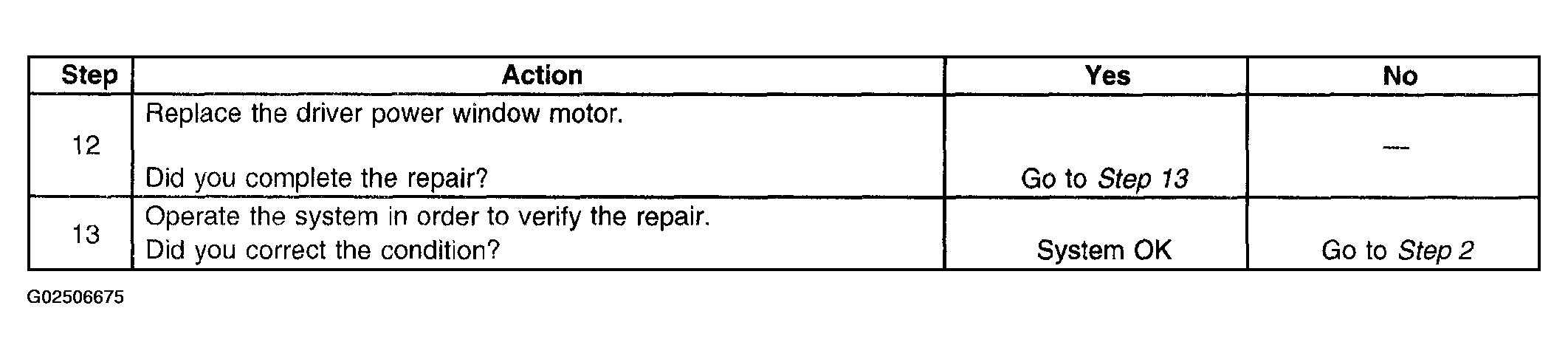

Fig 2: Power Window Inoperative - Driver Door Symptom Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
