Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Starting at the center of the weatherstrip, pull the weatherstrip forward and pull the weatherstrip off of the flange.
  3. Remove the weatherstrip from the flange.

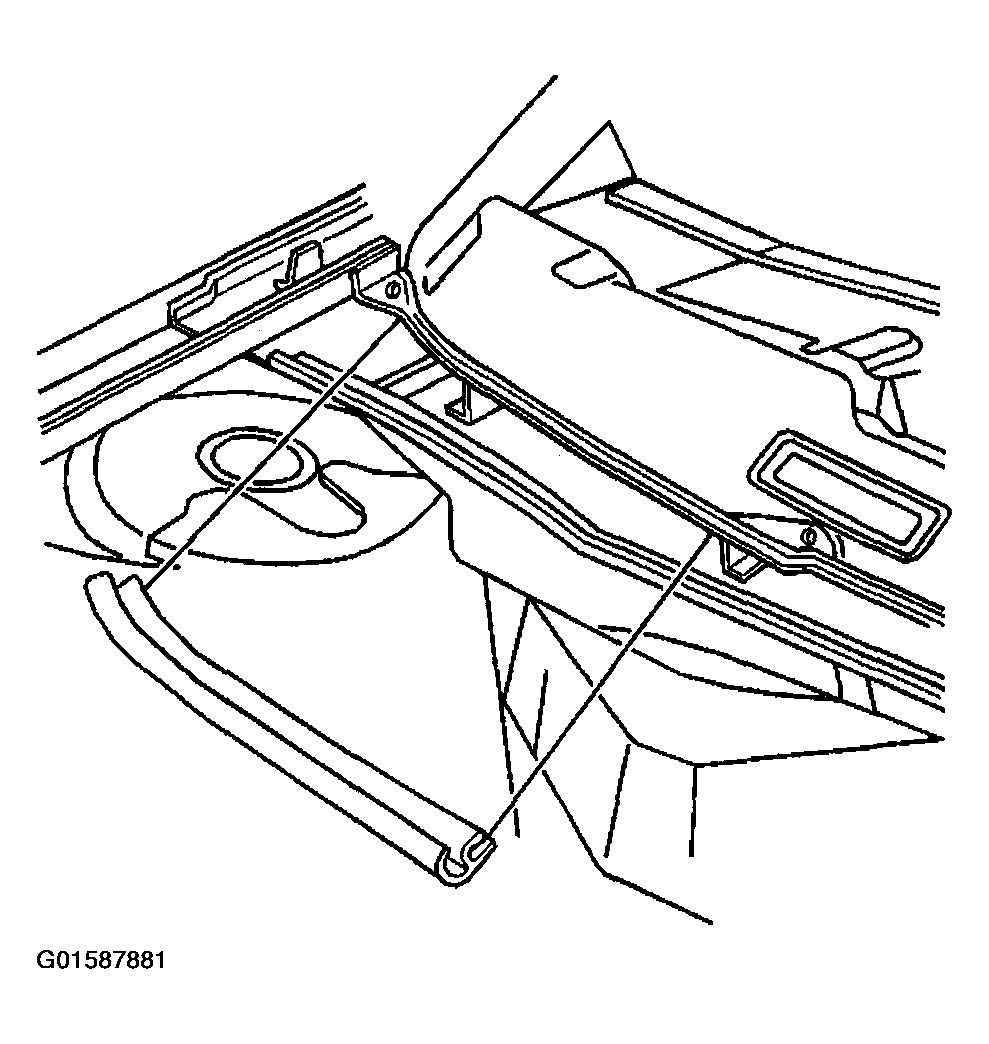

    4. Fig 1: Removing Weatherstrip From Flange
    G01587881Courtesy of GENERAL MOTORS CORP.
