Removal & Installation (2.2L)

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the ignition. Disconnect both purge link quick-connects from EVAP purge solenoid. See Fig 1 . Disconnect EVAP purge solenoid harness connector. Slide EVAP purge solenoid from retaining bracket.
  2. Slide EVAP purge solenoid into retaining bracket. Connect purge line quick-connects to EVAP purge solenoid. Push in connector until a click is heard, then pull back to confirm positive engagement. Connect EVAP purge solenoid harness connector.

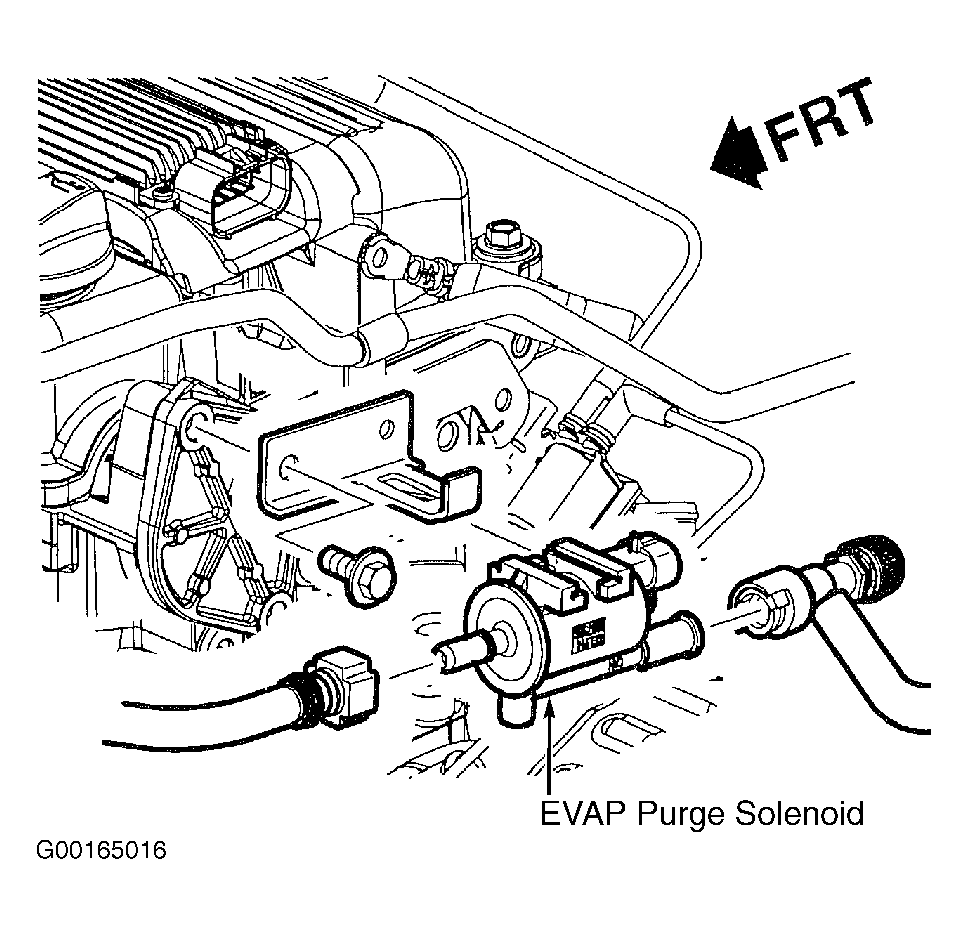

Fig 1: Removing/Installing EVAP Purge Solenoid (2.2L)
G00165016Courtesy of GENERAL MOTORS CORP.
