Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the ash tray harness electrical connector to the I/P harness.
  2. Align the accessory trim plate to the I/P.
  3. Install the tabs into the I/P openings.
  4. Rotate the I/P accessory trim plate forward and press the clips into the retainers until fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws to the I/P accessory trim plate.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

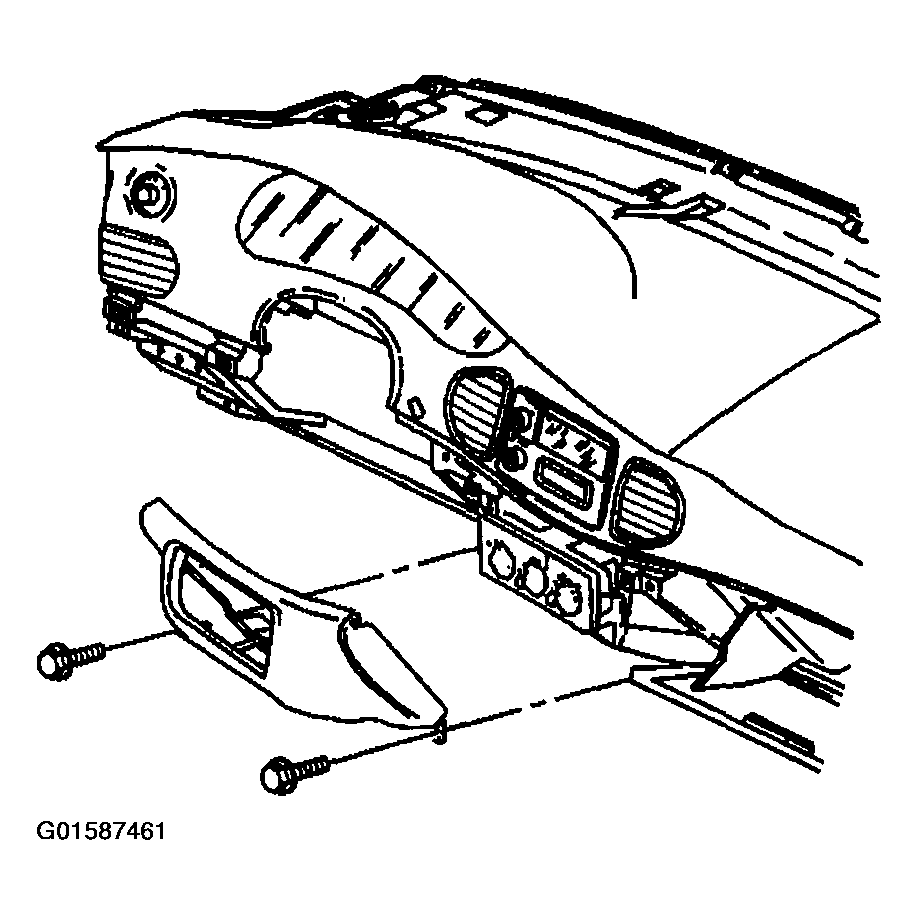

    Fig 1: Installing I/P Accessory Trim Plate & Mounting Bolts
    G01587461Courtesy of GENERAL MOTORS CORP.
