Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the filler panel retainers into the openings in the trim pad.
  2. Starting at the bottom, install the filler panel by pressing in at each retainer location until correctly seated.

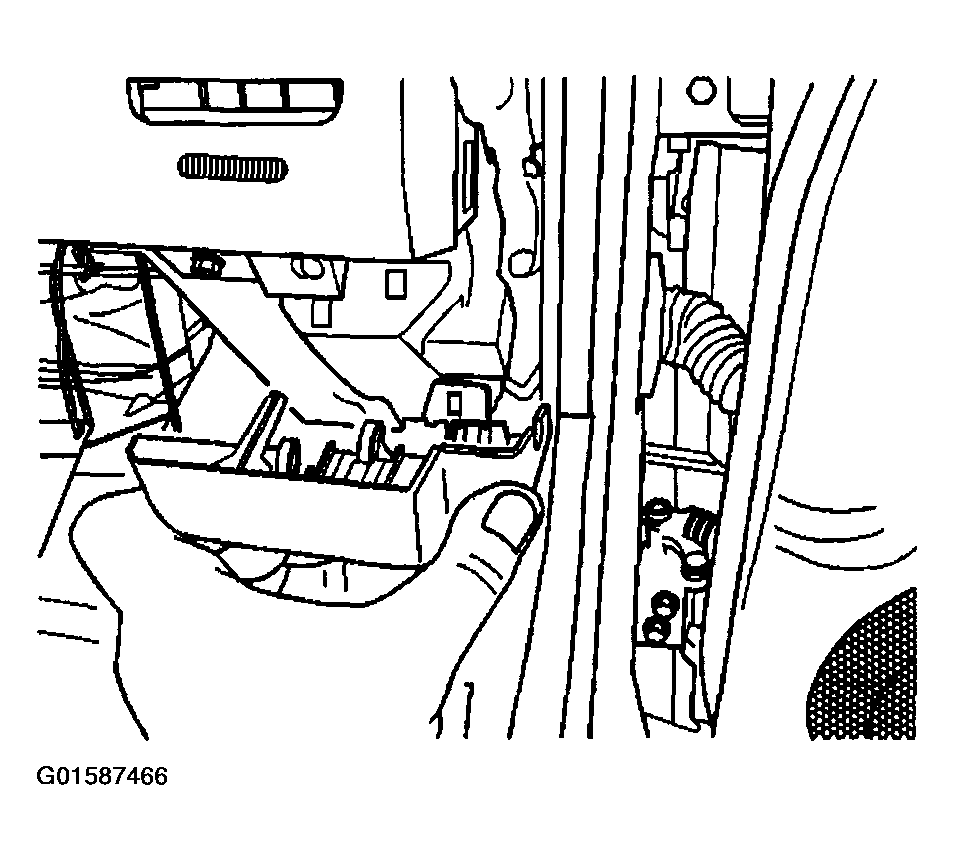

    Fig 1: Installing Filler Panel
    G01587466Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the filler panel bolt.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  4. Close the I/P compartment.
  5. Install the lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR in Interior Trim.

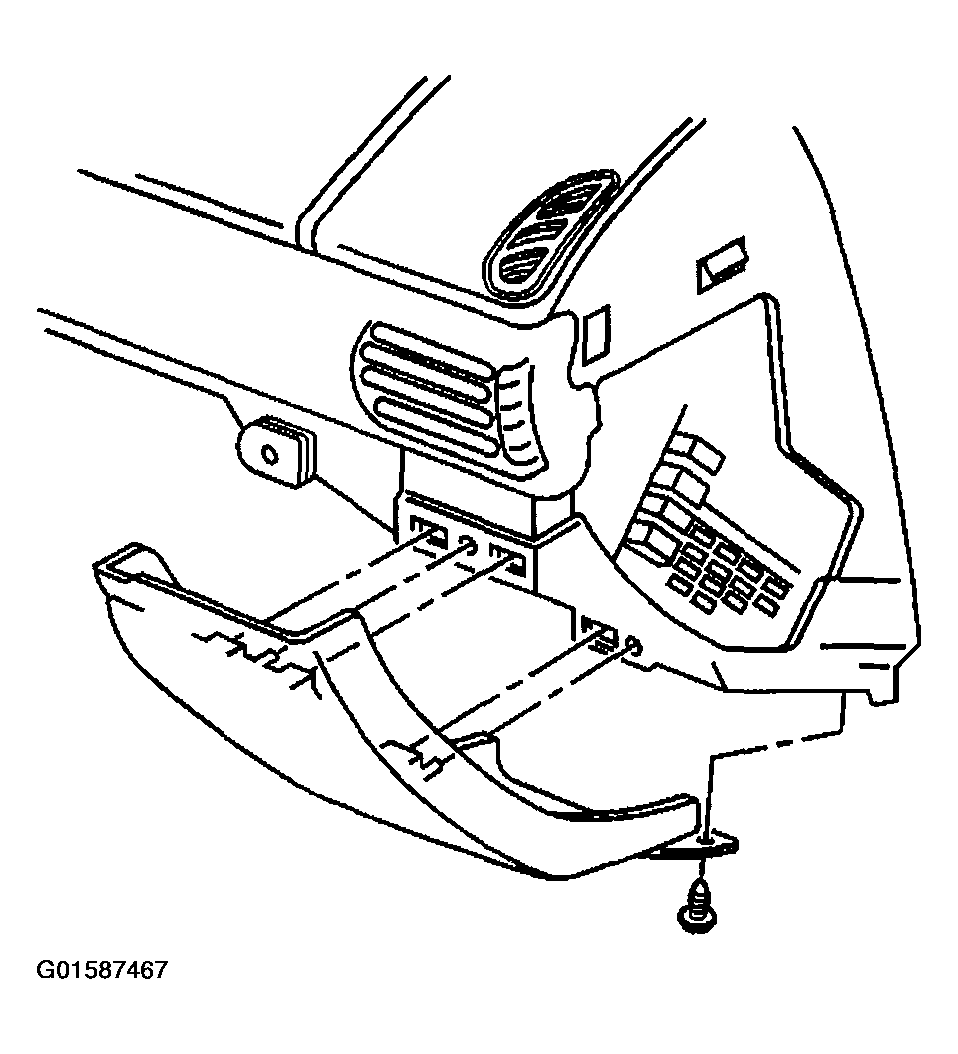

    Fig 2: Installing Lower Pillar Garnish Molding & Mounting Bolt
    G01587467Courtesy of GENERAL MOTORS CORP.
