Fuel Gage Inaccurate Or Inoperative: Overview

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

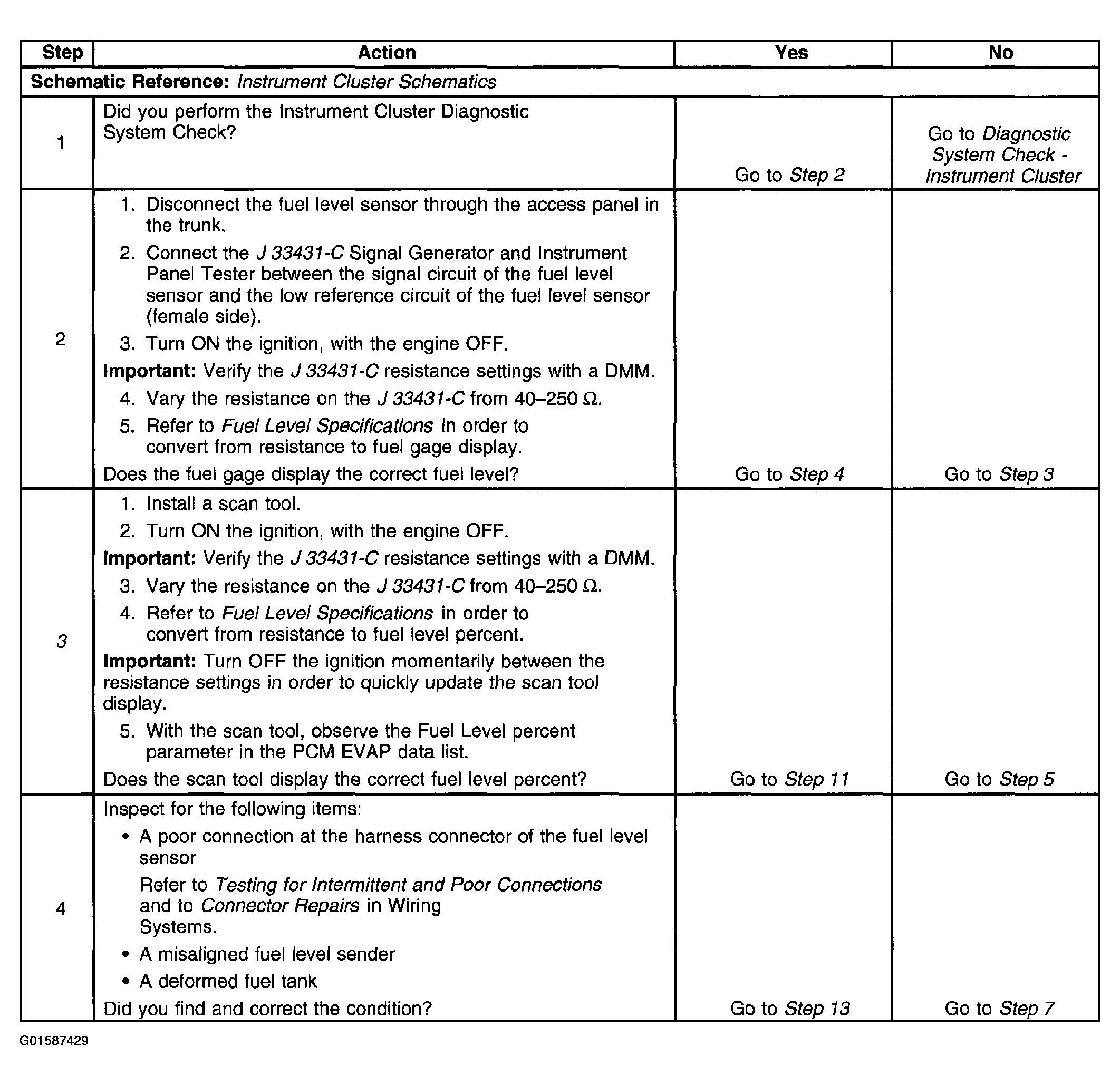

Fig 1: Fuel Gage Inaccurate Or Inoperative (Steps 1 - 4)
G01587429Courtesy of GENERAL MOTORS CORP.

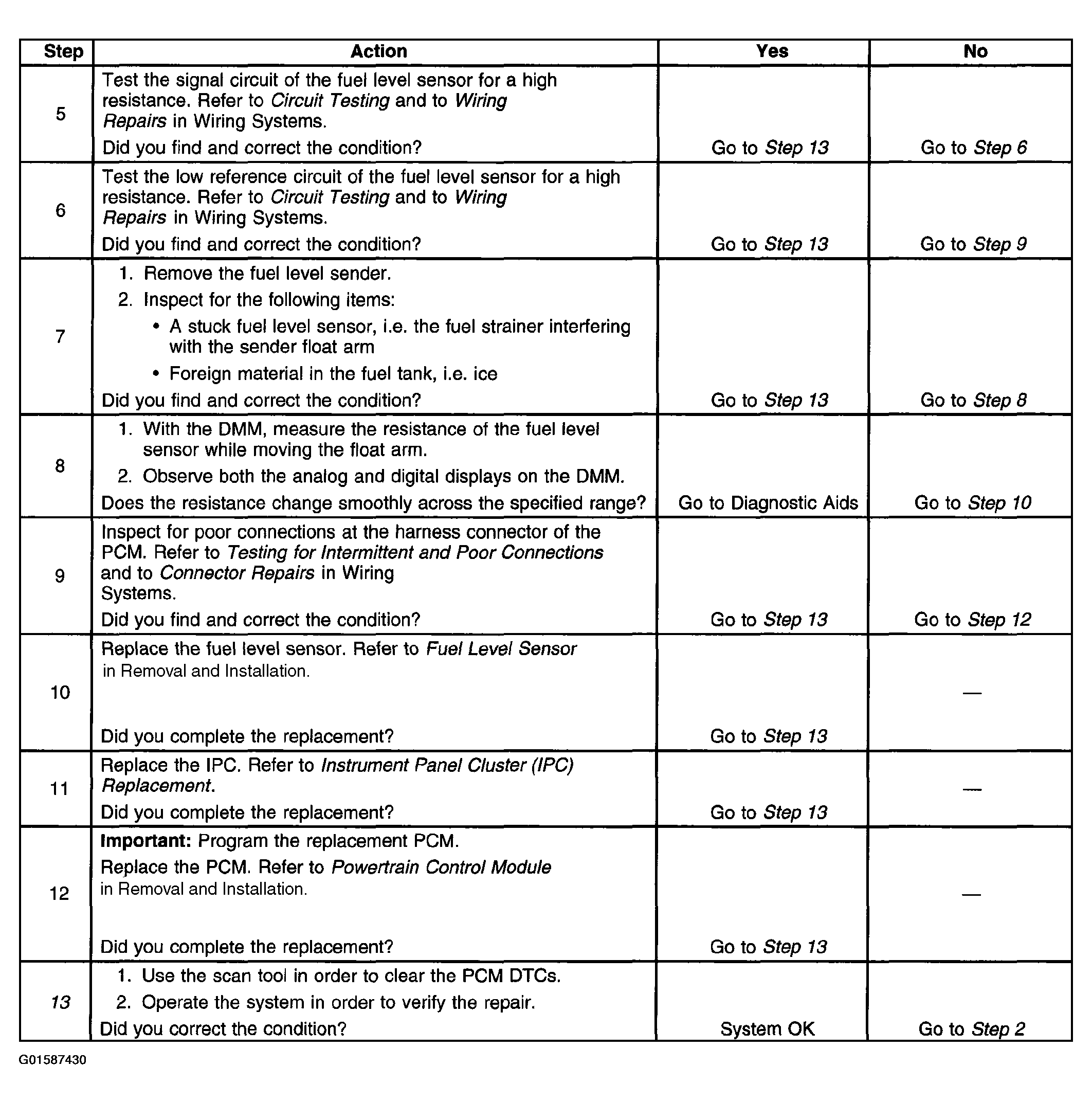

Fig 2: Fuel Gage Inaccurate Or Inoperative (Steps 5 - 13)
G01587430Courtesy of GENERAL MOTORS CORP.
