Headlamps Inoperative - Low Beams

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Headlamps Inoperative - Low Beams (Steps 1 - 4)
G01587021Courtesy of GENERAL MOTORS CORP.

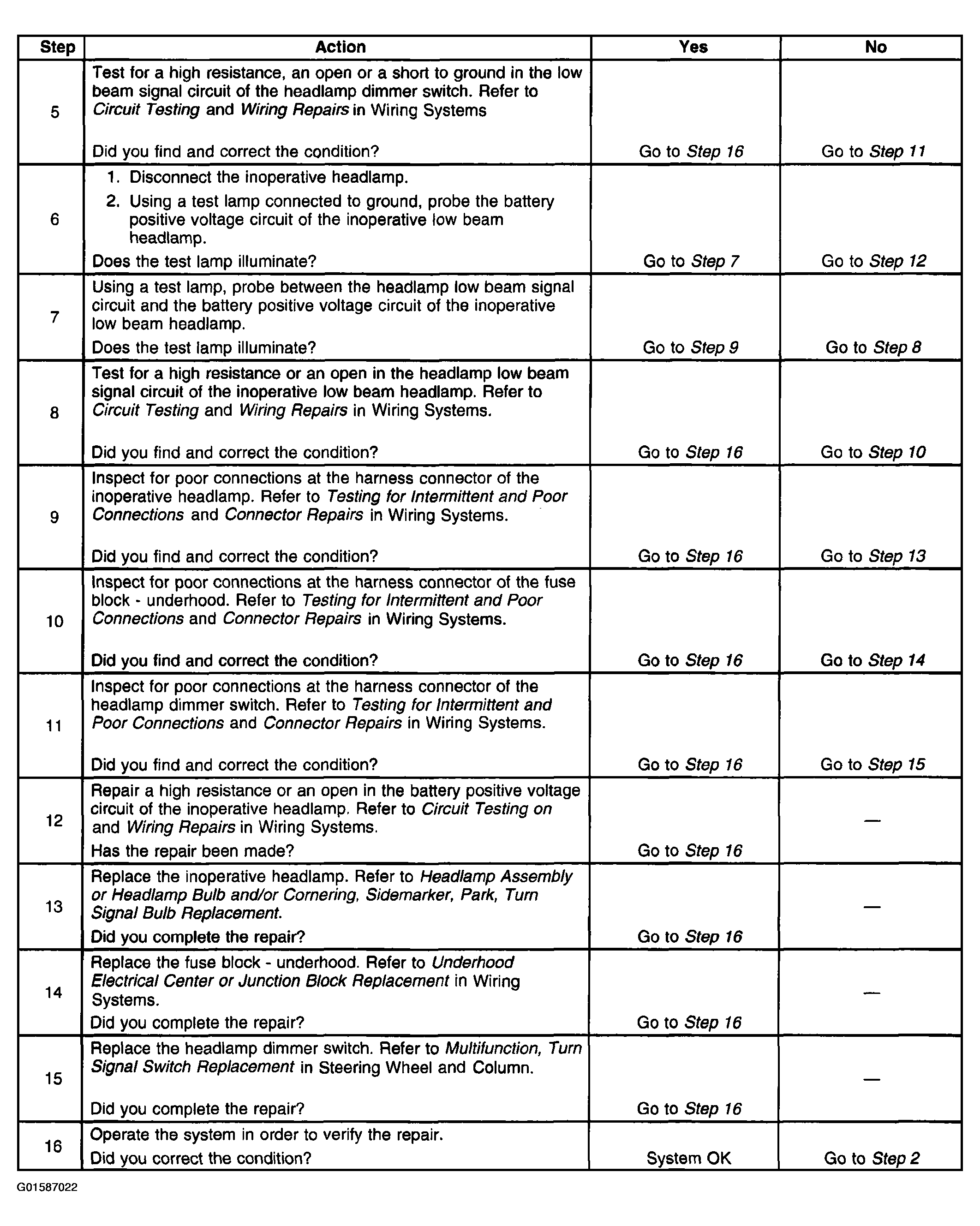

Fig 2: Headlamps Inoperative - Low Beams (Steps 5 - 16)
G01587022Courtesy of GENERAL MOTORS CORP.
