Daytime Running Lamps (DRL) Inoperative

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

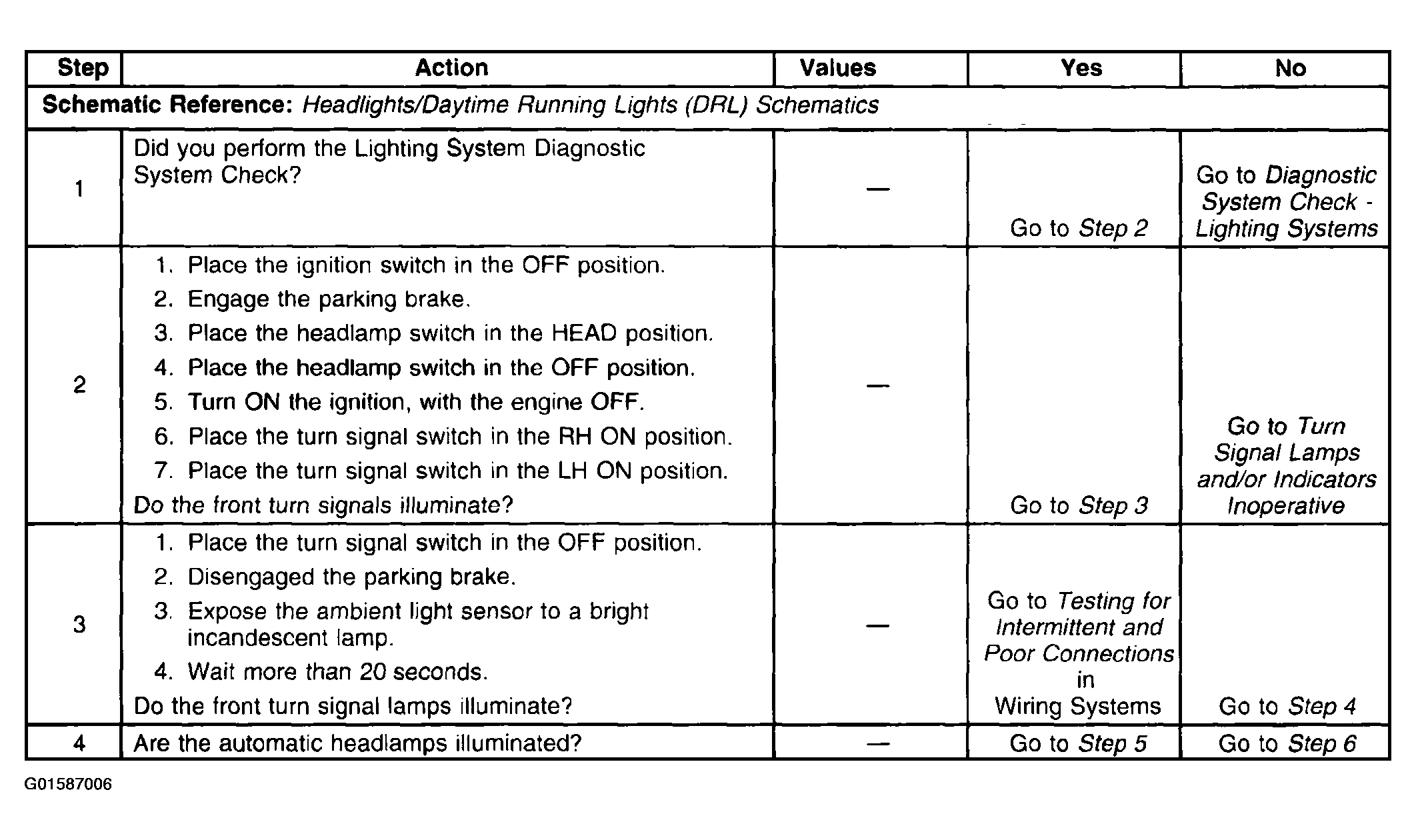

Fig 1: Daytime Running Lamps (DRL) Inoperative (Steps 1 - 4)

Courtesy of GENERAL MOTORS CORP.

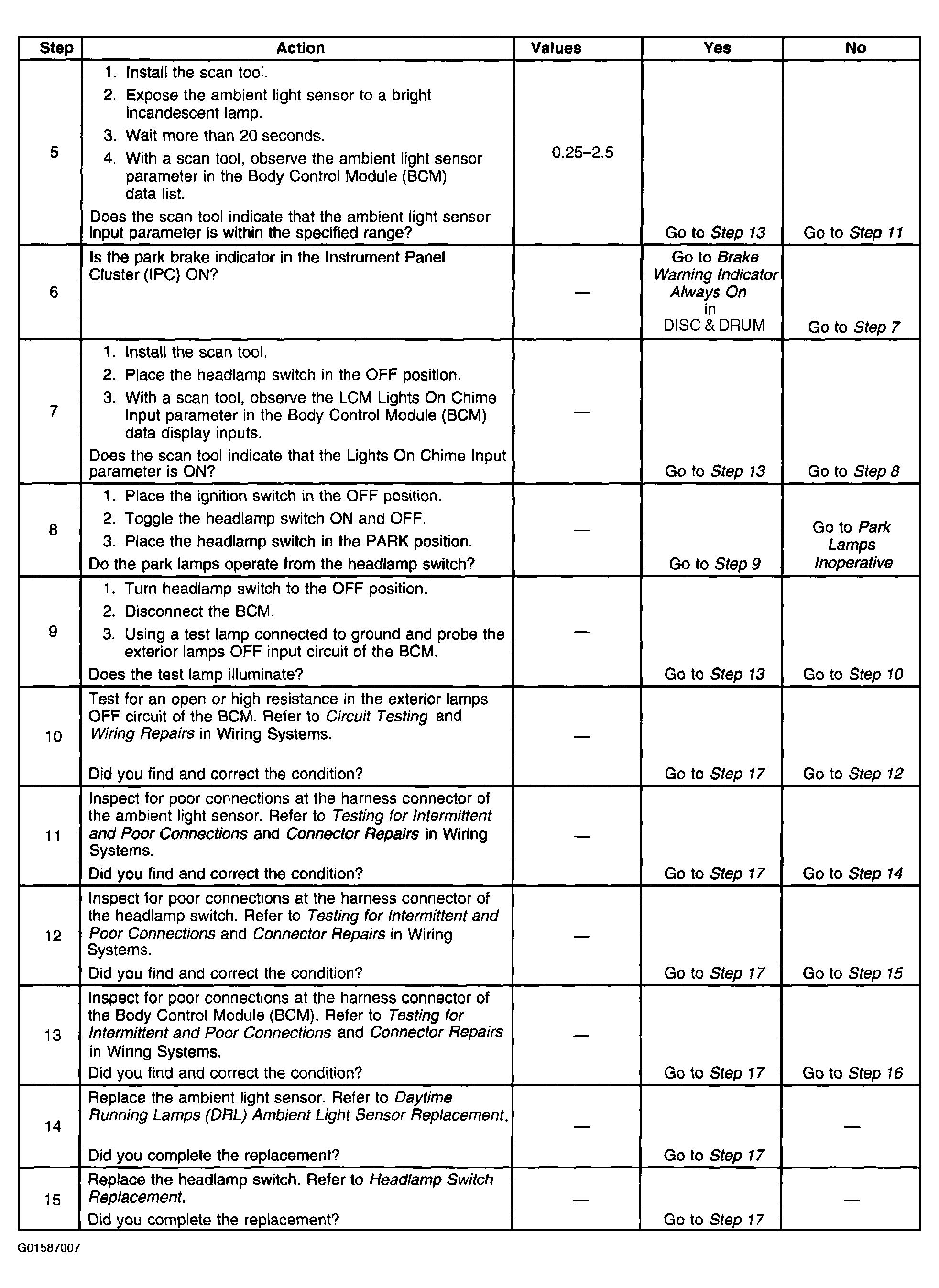

Fig 2: Daytime Running Lamps (DRL) Inoperative (Steps 5 - 15)

Courtesy of GENERAL MOTORS CORP.

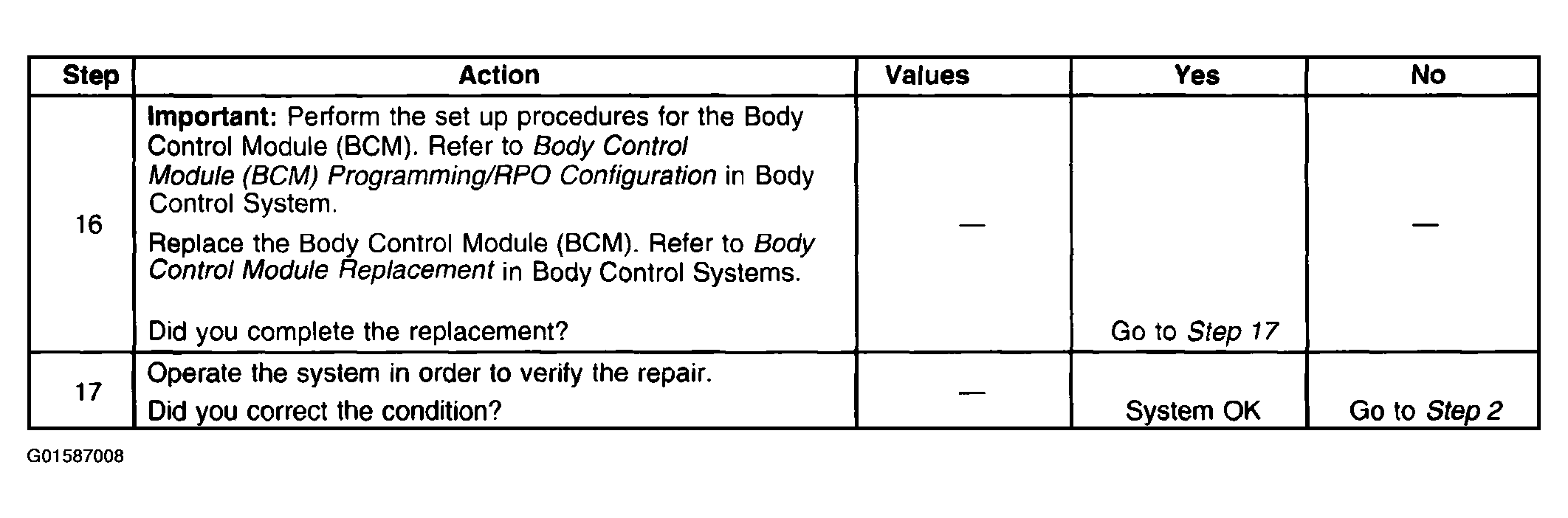

Fig 3: Daytime Running Lamps (DRL) Inoperative (Steps 16 - 17)

Courtesy of GENERAL MOTORS CORP.
