Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical center cover.
  2. Locate the relay. Refer to FUSES & CIRCUIT BREAKERS to locate the electrical center where the relay exists.
    IMPORTANT:
    • Always note the orientation of the relay.
    • Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.
  3. Using the J 43244  (1) position the tool on opposing corners of the relay (2).
    NOTE: Use J 43244  to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.

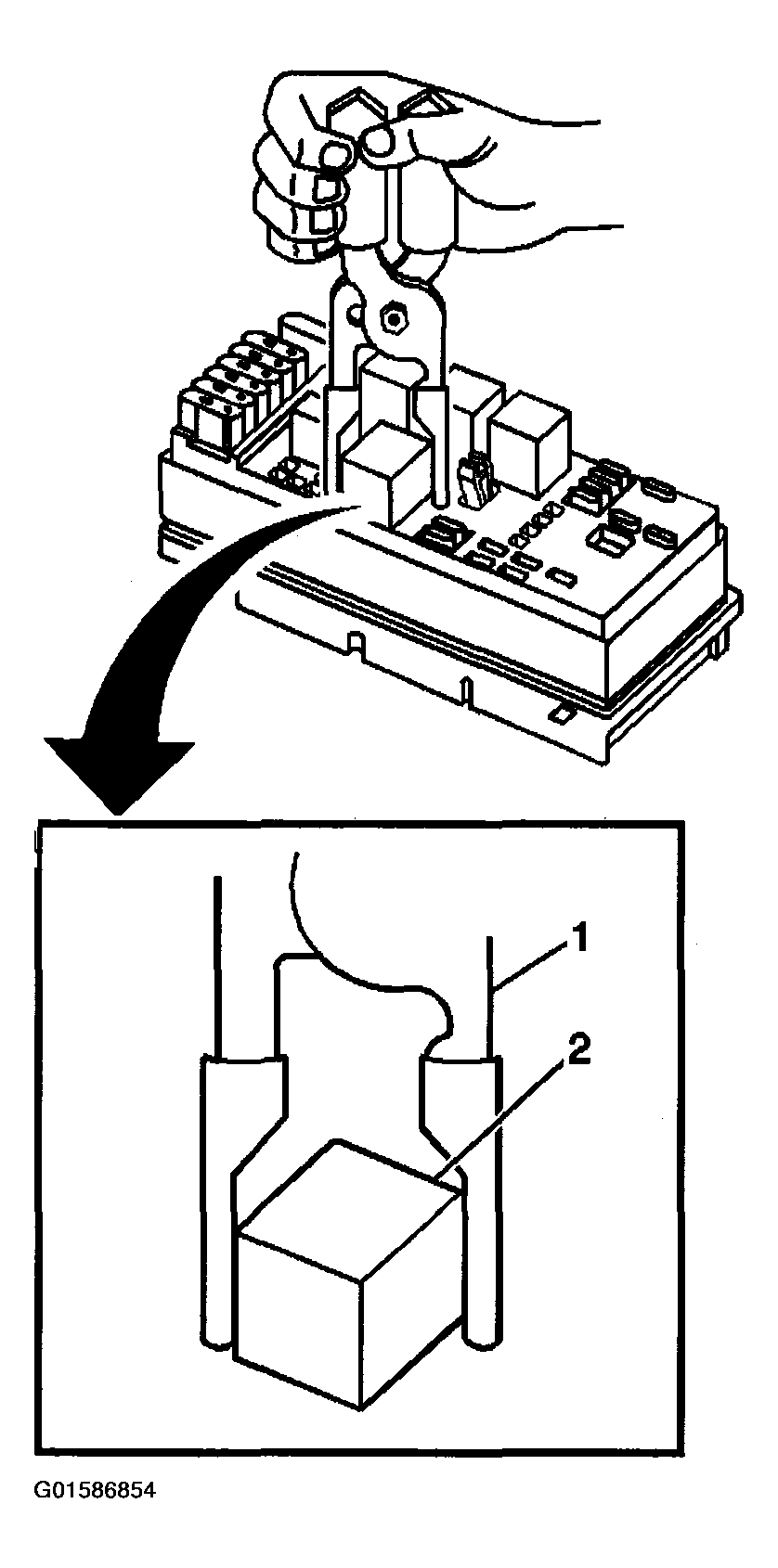

    Fig 1: Removing Relay From Electrical Center
    G01586854Courtesy of GENERAL MOTORS CORP.
  4. Remove the relay (2) from the electrical center.
