Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed.

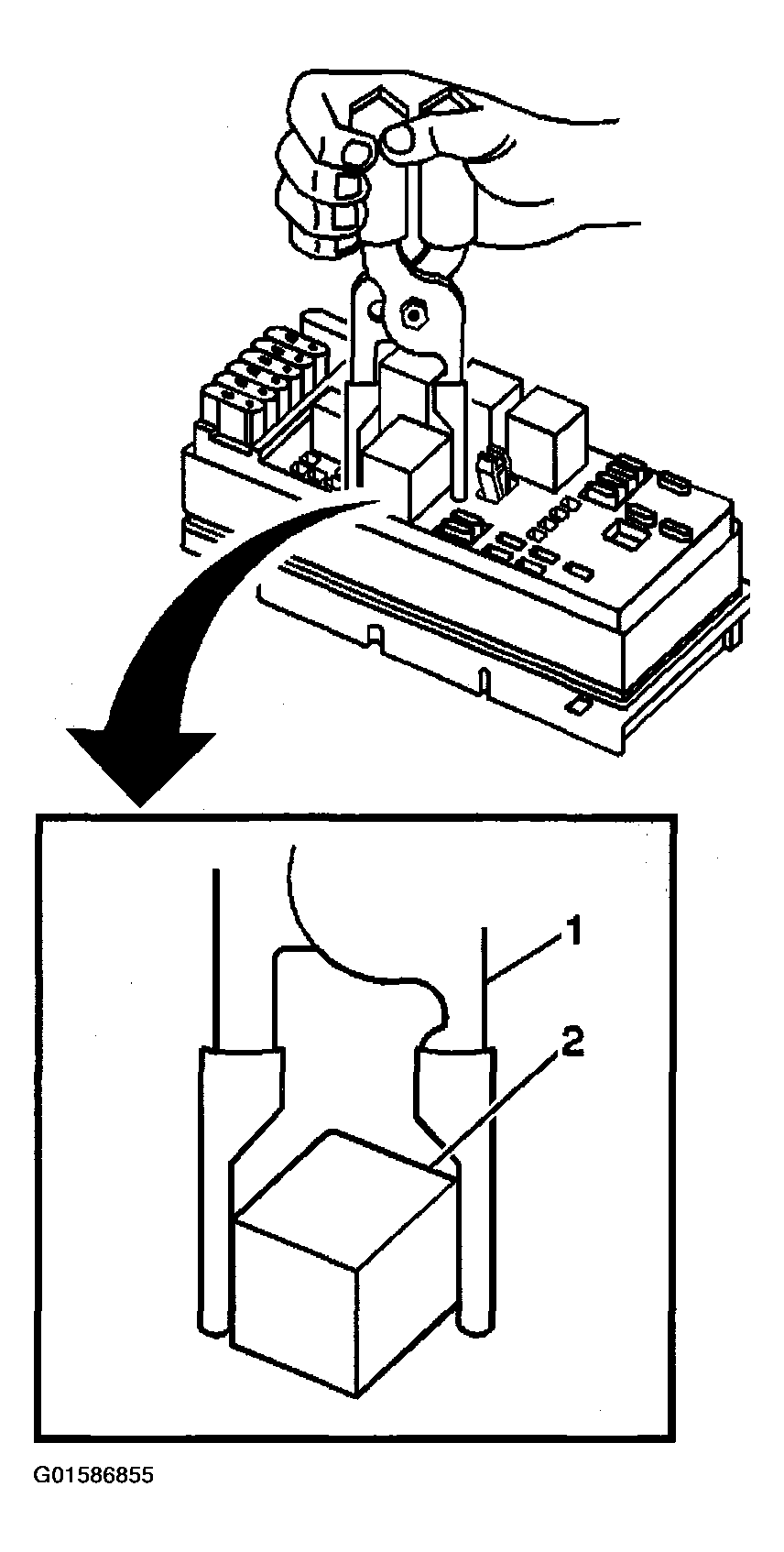

    Fig 1: Installing Relay To Electrical Center
    G01586855Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical center cover.
