Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Make sure the O-ring is in place on the plug. Install the oil plug (1).

    Tighten

    Tighten the oil plug (1) to 10 N.m (89 lb in).

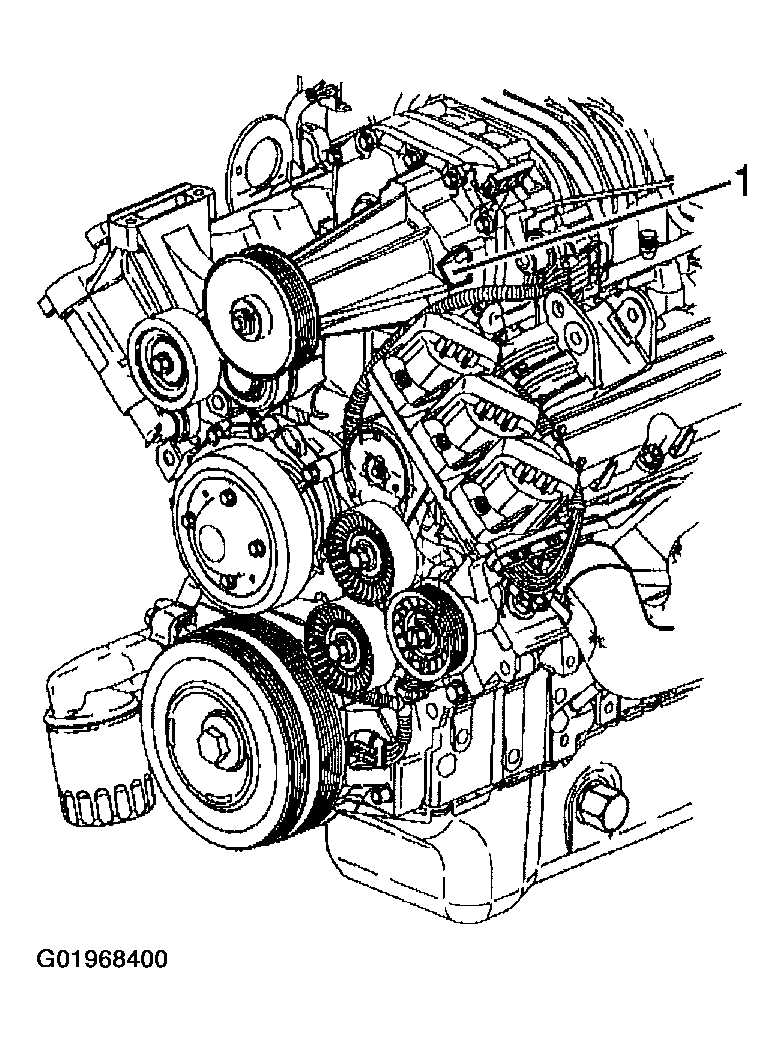

    Fig 1: Installing Oil Plug
    G01968400Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36)  or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67)  .

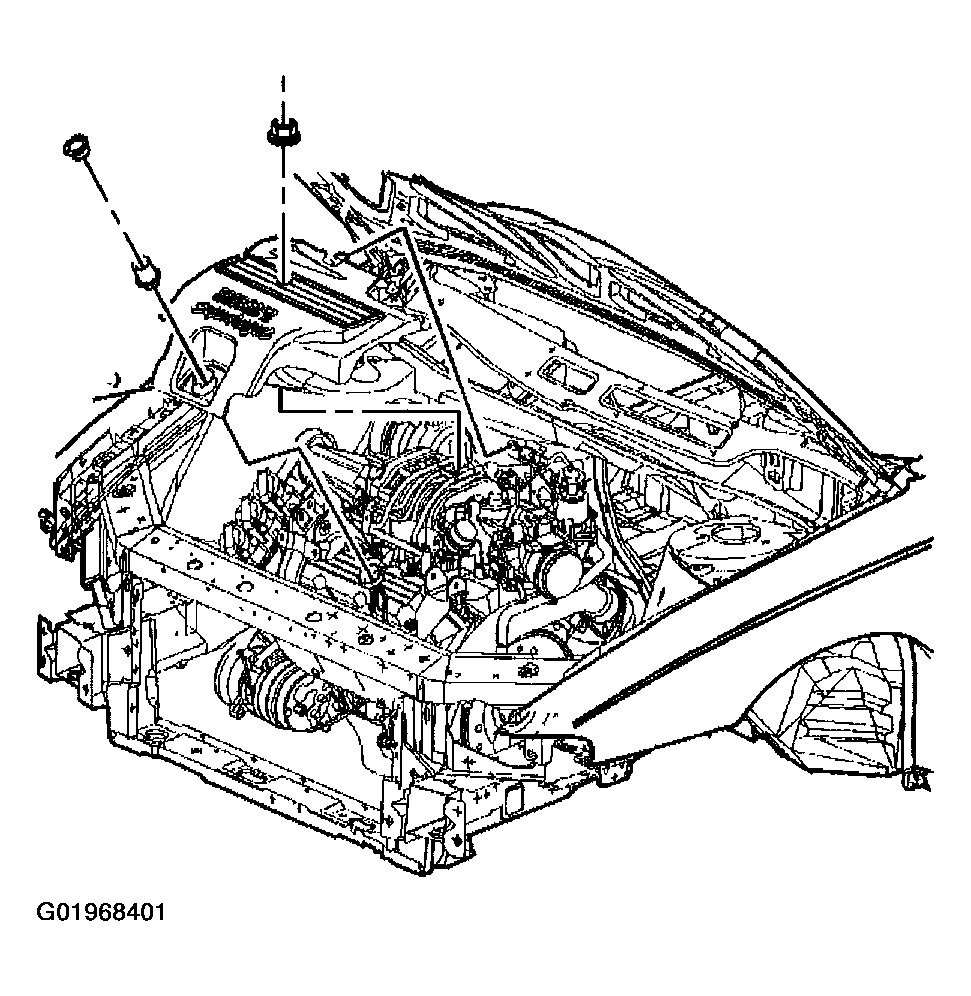

    Fig 2: Installing Fuel Injector Sight Shield & Mounting Nuts
    G01968401Courtesy of GENERAL MOTORS CORP.
