Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT  .
  2. Remove the oil pump cover screws.

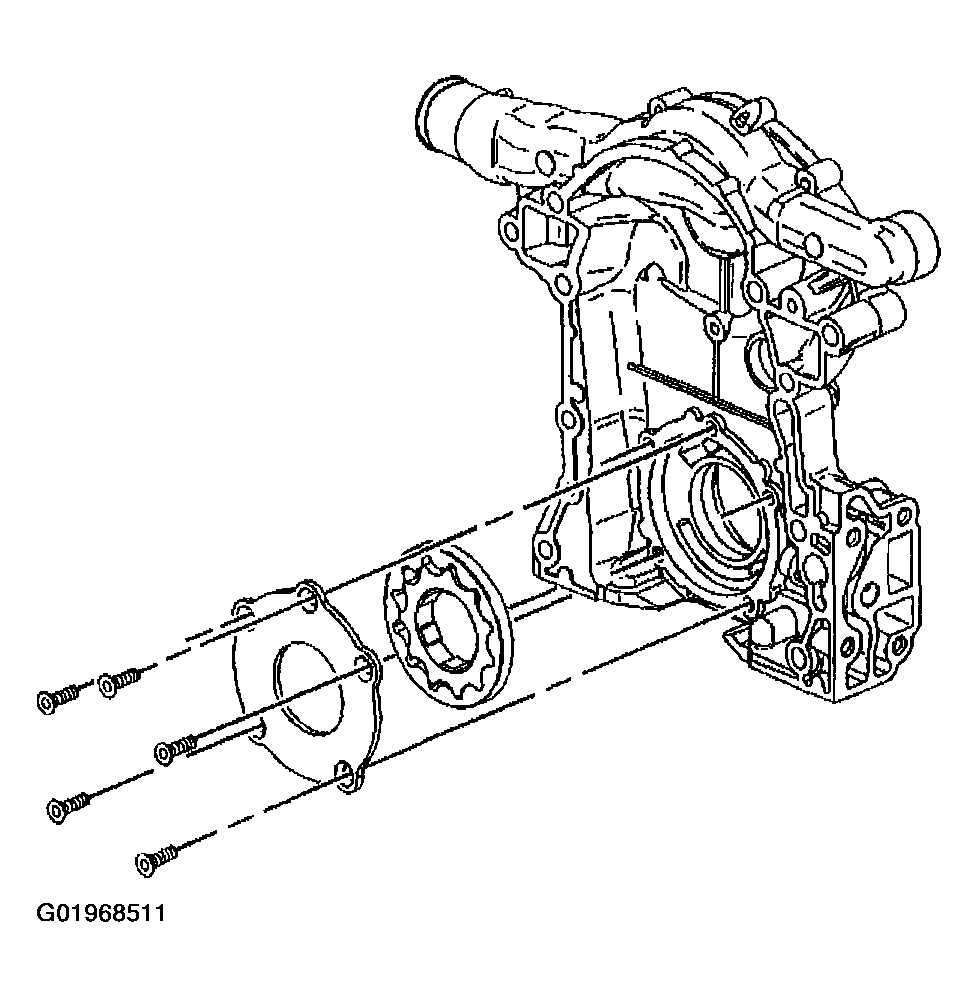

    Fig 1: Removing Oil Pump Cover, Screws & Oil Pump Gear Set
    G01968511Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pump cover.
  4. Remove the oil pump gear set.
  5. Inspect the oil pump gear set and housing. Refer to OIL PUMP CLEANING AND INSPECTION  .
