Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the area around the tube/oil fill cap before removing the tube/oil fill cap in order to prevent contaminants from falling into the valve rocker arm cover opening.
  2. Twist counterclockwise to unlock the tube/oil fill cap from the valve rocker arm cover.

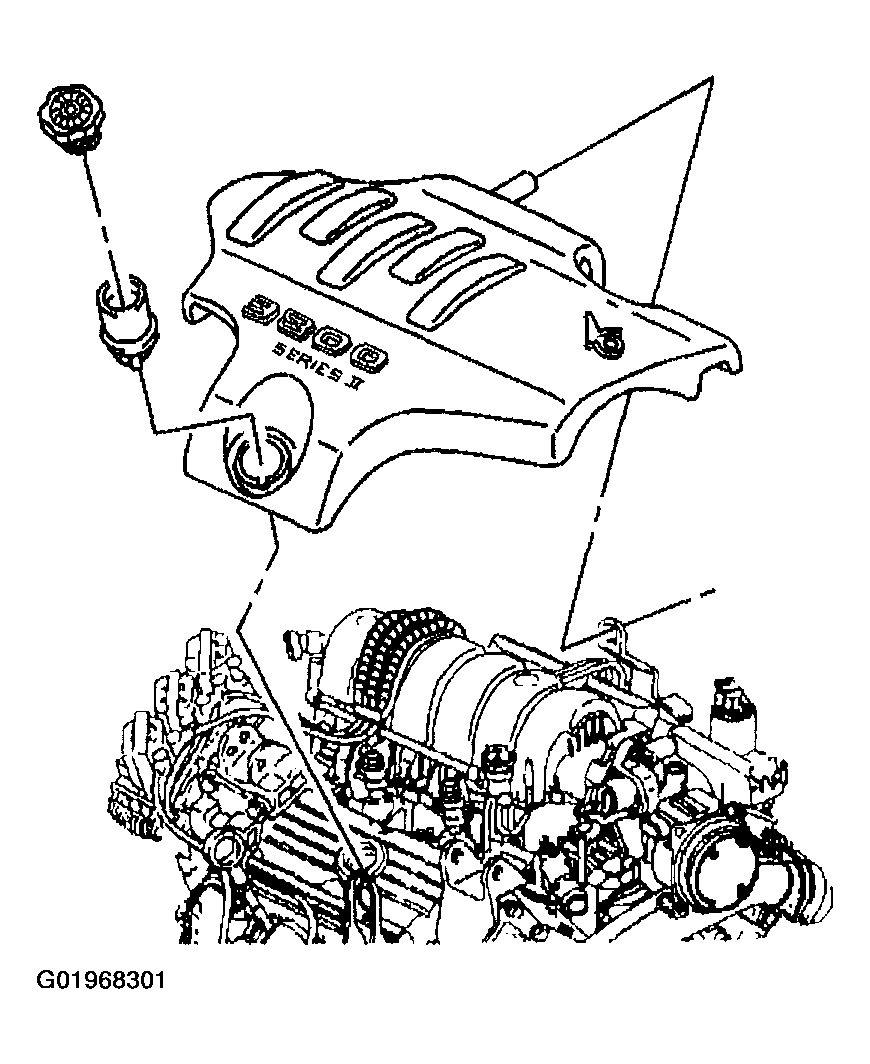

    Fig 1: Removing Tube/Oil Fill Cap & Fuel Injector Sight Shield (L36)
    G01968301Courtesy of GENERAL MOTORS CORP.
  3. Lift the fuel injector sight shield up at the front and slide the tab out of the engine bracket.
  4. Replace the tube/oil fill cap in the valve rocker arm cover.
