Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Install the right engine mount strut bracket to the cylinder head.

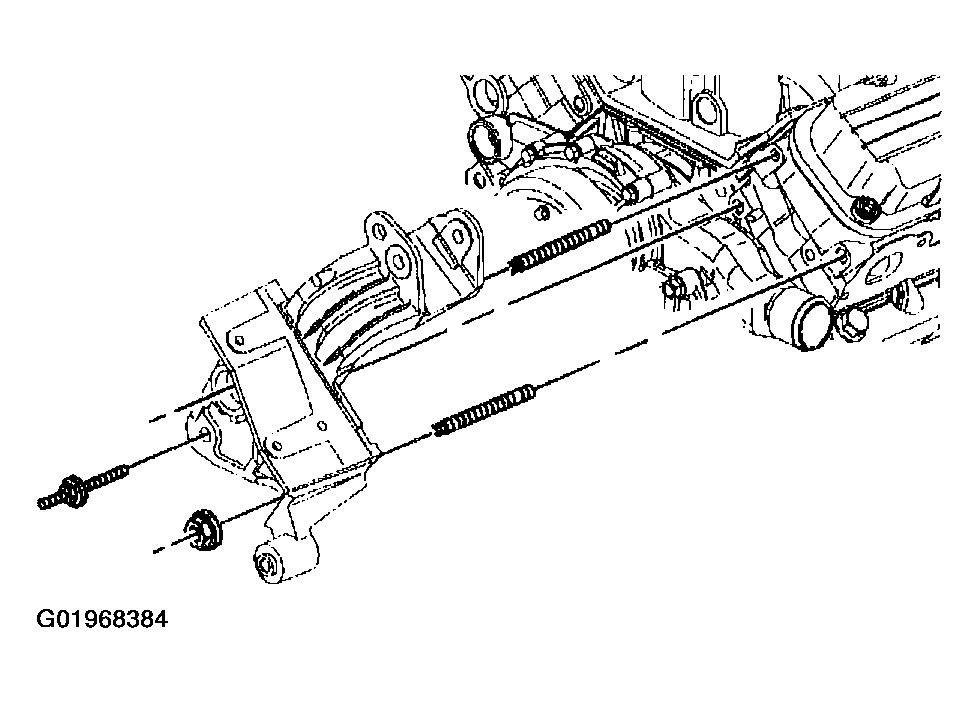

Fig 1: Installing Right Engine Mount Strut Bracket, Studs & Nuts
Courtesy of GENERAL MOTORS CORP.

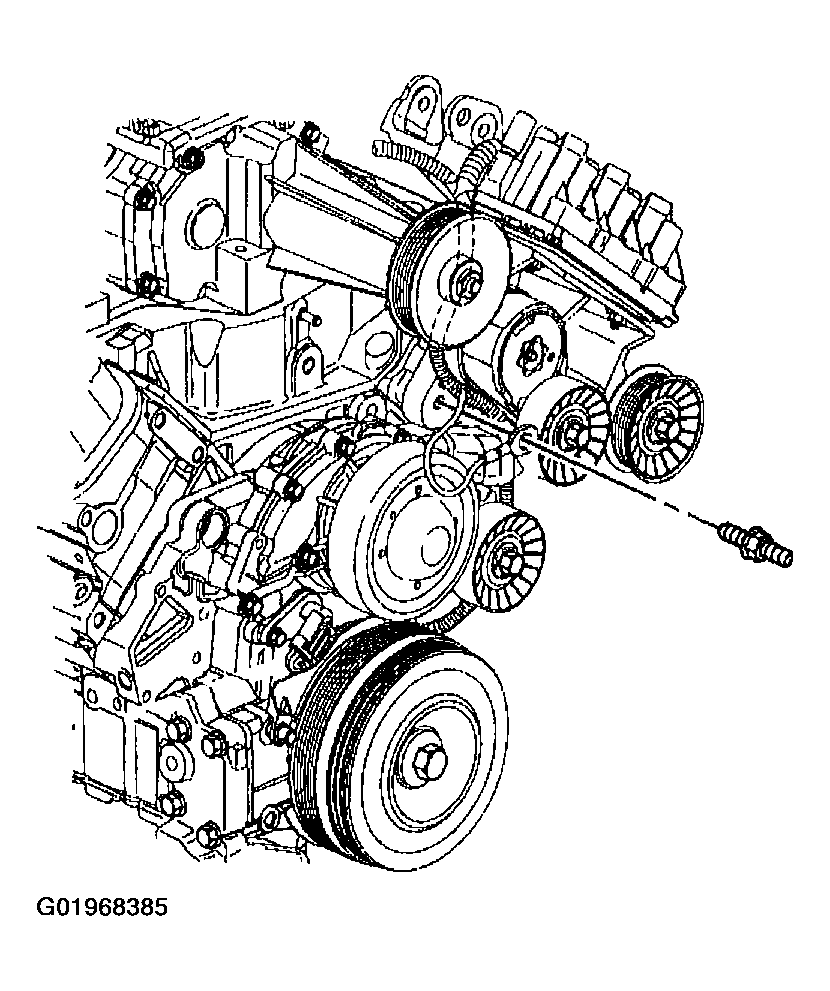

Install the electronic ignition module harness assembly to the stud, as shown.

Fig 2: Installing Electronic Ignition Module Harness Assembly Stud
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the right engine mount strut bracket nuts and stud.
Tighten

Tighten the right engine mount strut bracket nuts and stud to 50 N.m (37 lb ft).
Install the right engine mount strut to the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT and ENGINE MOUNT STRUT REPLACEMENT - RIGHT .

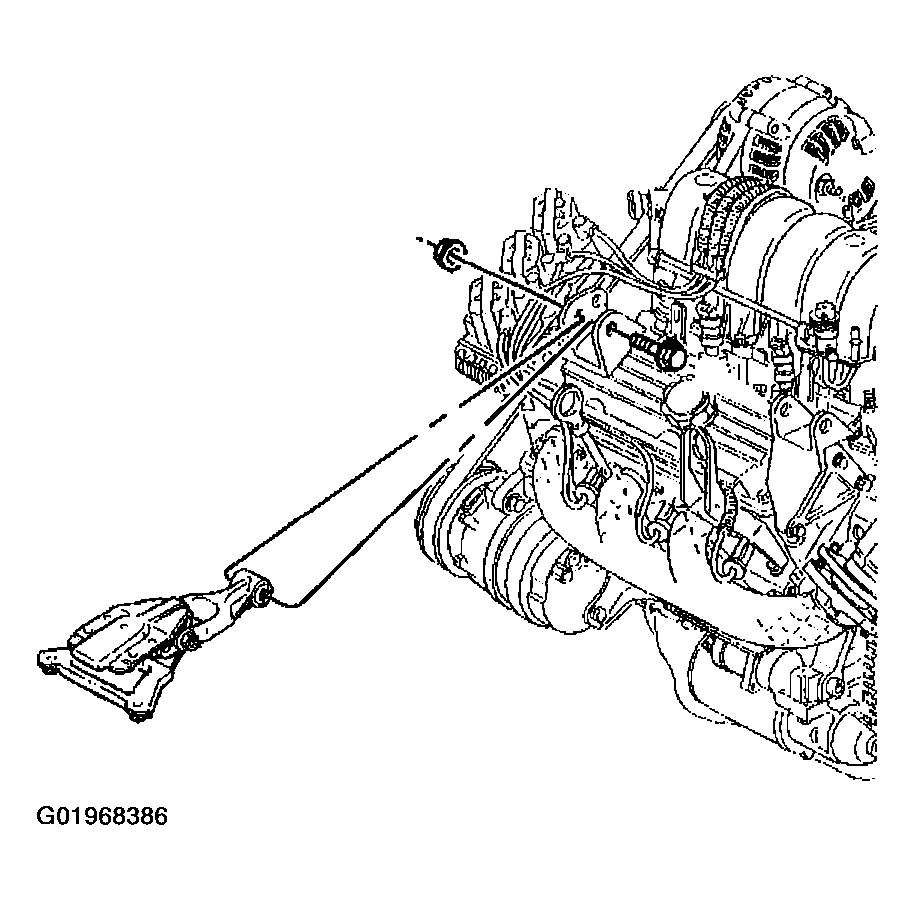

Fig 3: Installing Right Engine Mount Strut To Right Engine Mount Strut Bracket
Courtesy of GENERAL MOTORS CORP.
Install the supercharger drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT - SUPERCHARGER .

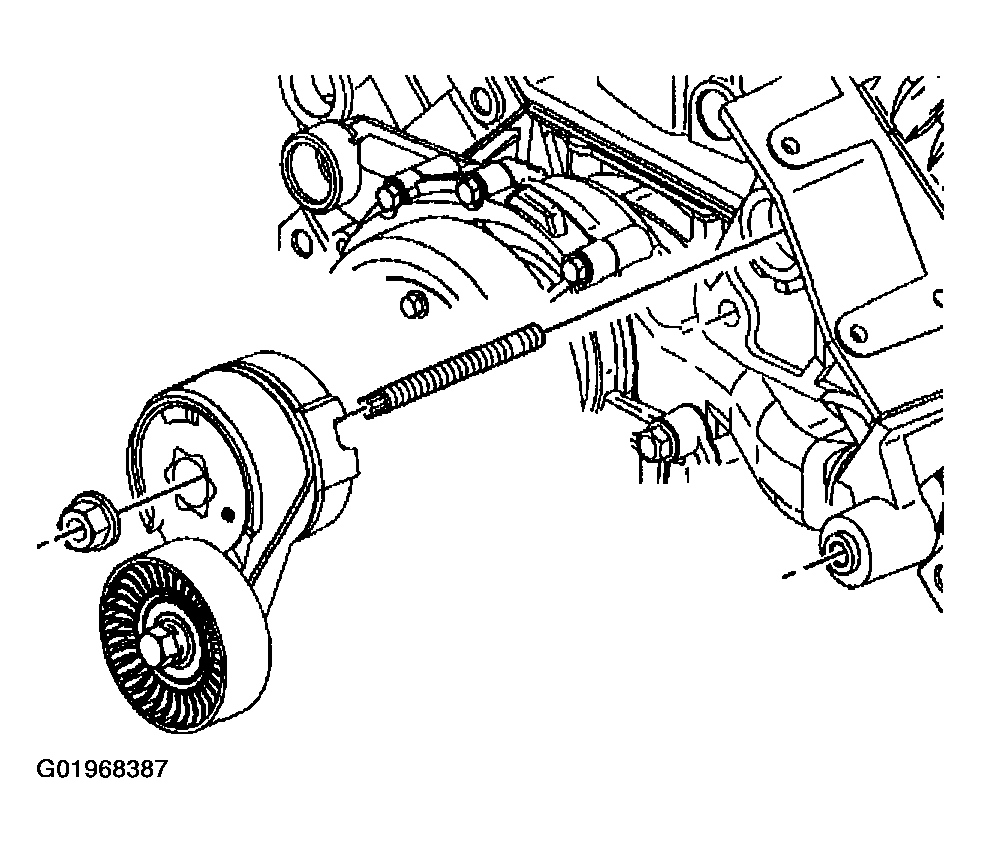

Fig 4: Installing Supercharger Drive Belt Tensioner
Courtesy of GENERAL MOTORS CORP.
Install the upper supercharger drive belt idler pulley. Refer to DRIVE BELT IDLER PULLEY REPLACEMENT - UPPER .

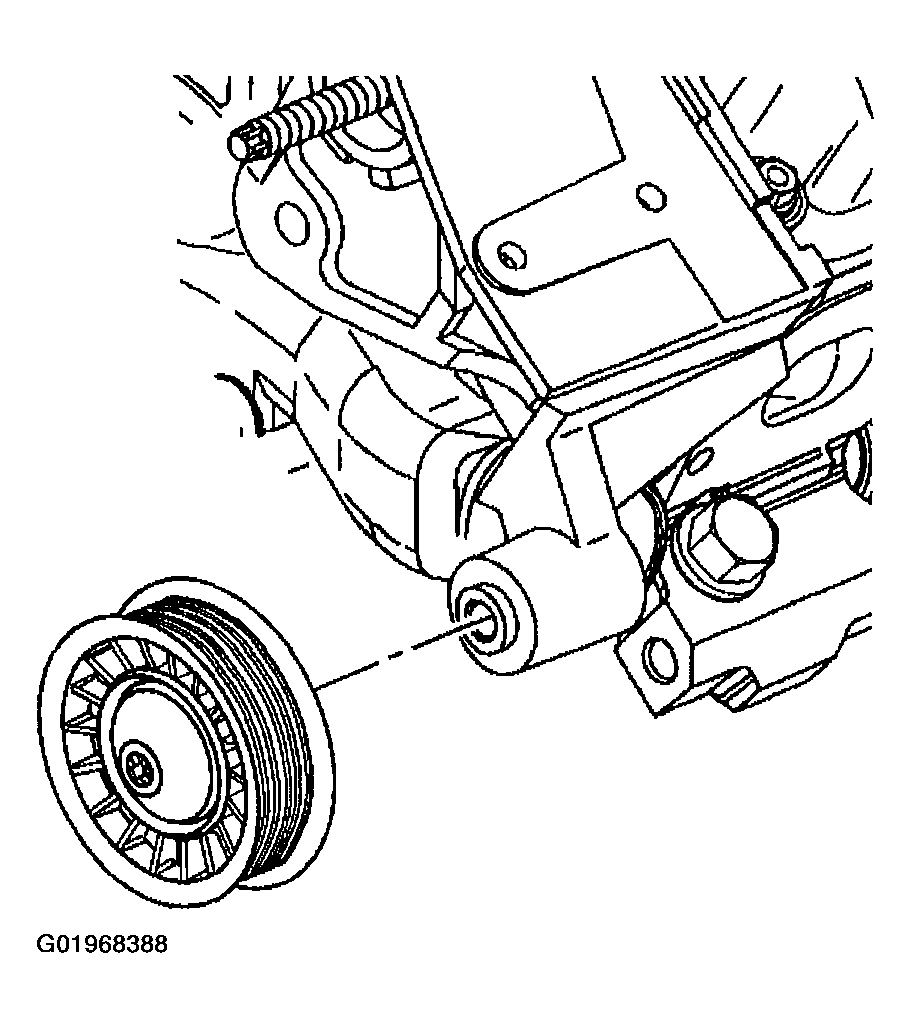

Fig 5: Installing Upper Supercharger Drive Belt Idler Pulley
Courtesy of GENERAL MOTORS CORP.
Install the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36) or DRIVE BELT REPLACEMENT (L67) .
Install the ignition coil. Refer to IGNITION COILS in Removal & Installation.

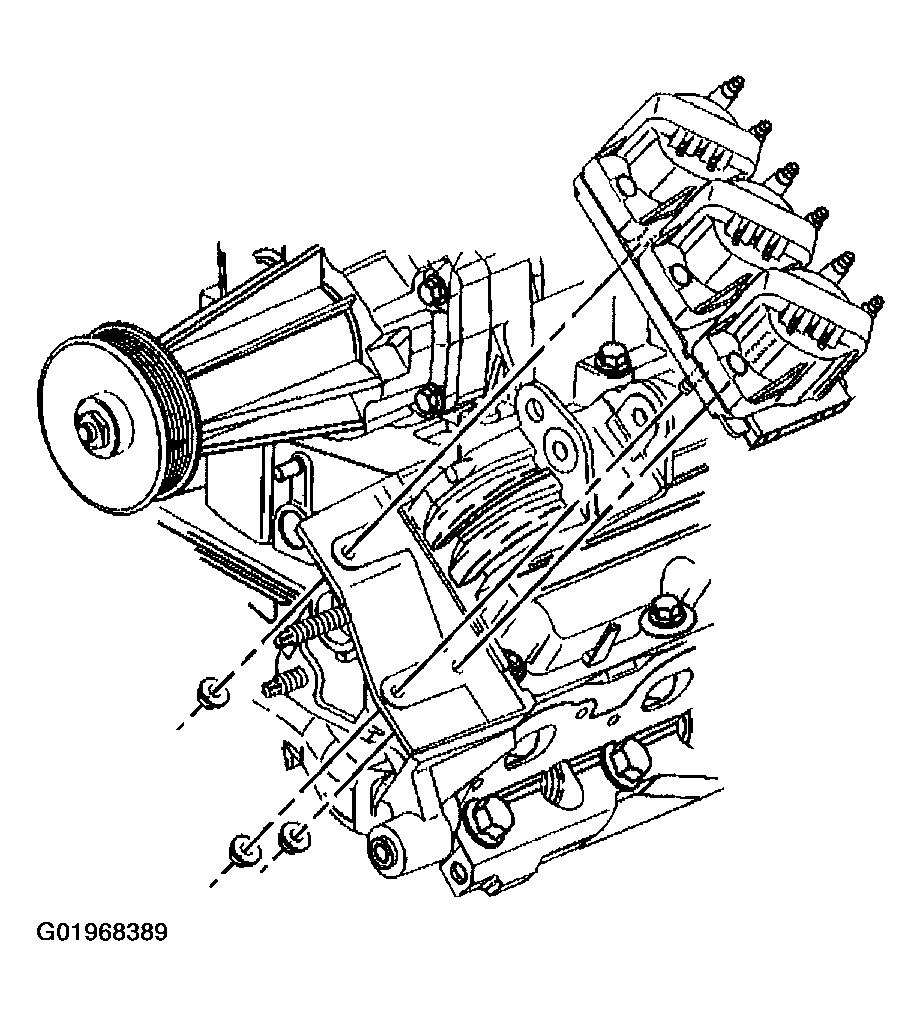

Fig 6: Installing Ignition Coil
Courtesy of GENERAL MOTORS CORP.
Connect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
