Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36)  or DRIVE BELT REPLACEMENT (L67)  .

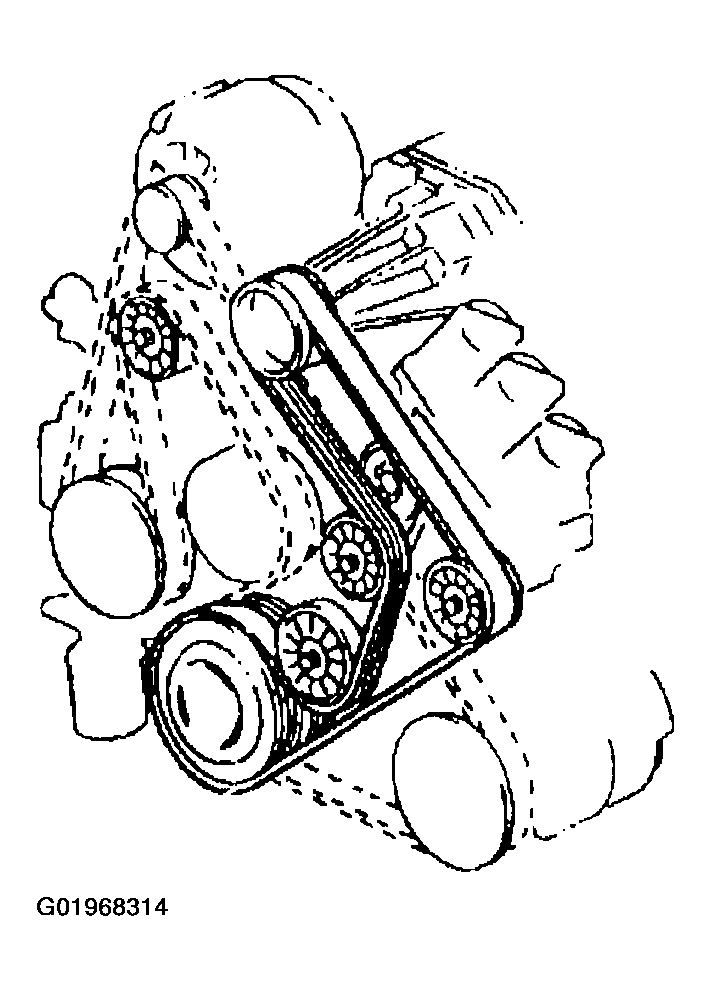

    Fig 1: View Of Supercharger Drive Belt
    G01968314Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt tensioner nut.
    Fig 2: Removing Drive Belt Tensioner & Nut
    G01968315Courtesy of GENERAL MOTORS CORP.
  3. Remove the drive belt tensioner.
