Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt tensioner nut.

    Tighten

    Tighten the nut to 50 N.m (37 lb ft).

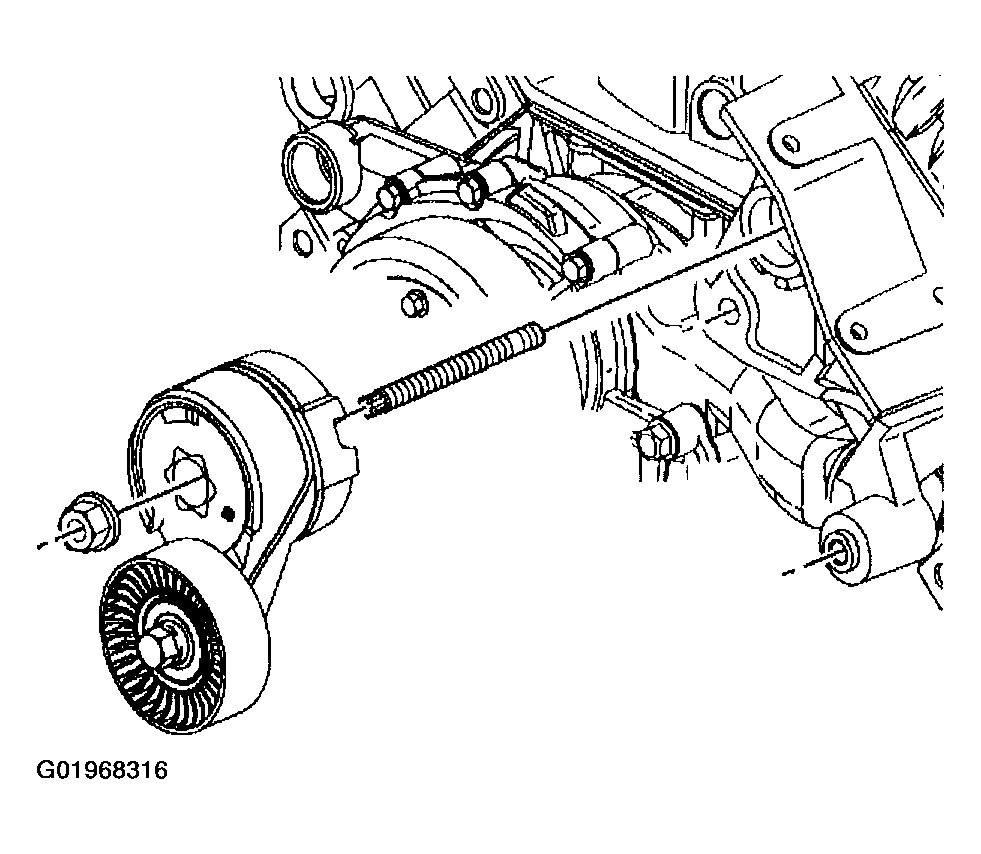

    Fig 1: Installing Drive Belt Tensioner & Nut
    G01968316Courtesy of GENERAL MOTORS CORP.
  3. Install the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36)  or DRIVE BELT REPLACEMENT (L67)  .
    Fig 2: View Of Supercharger Drive Belt
    G01968317Courtesy of GENERAL MOTORS CORP.
