Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley.

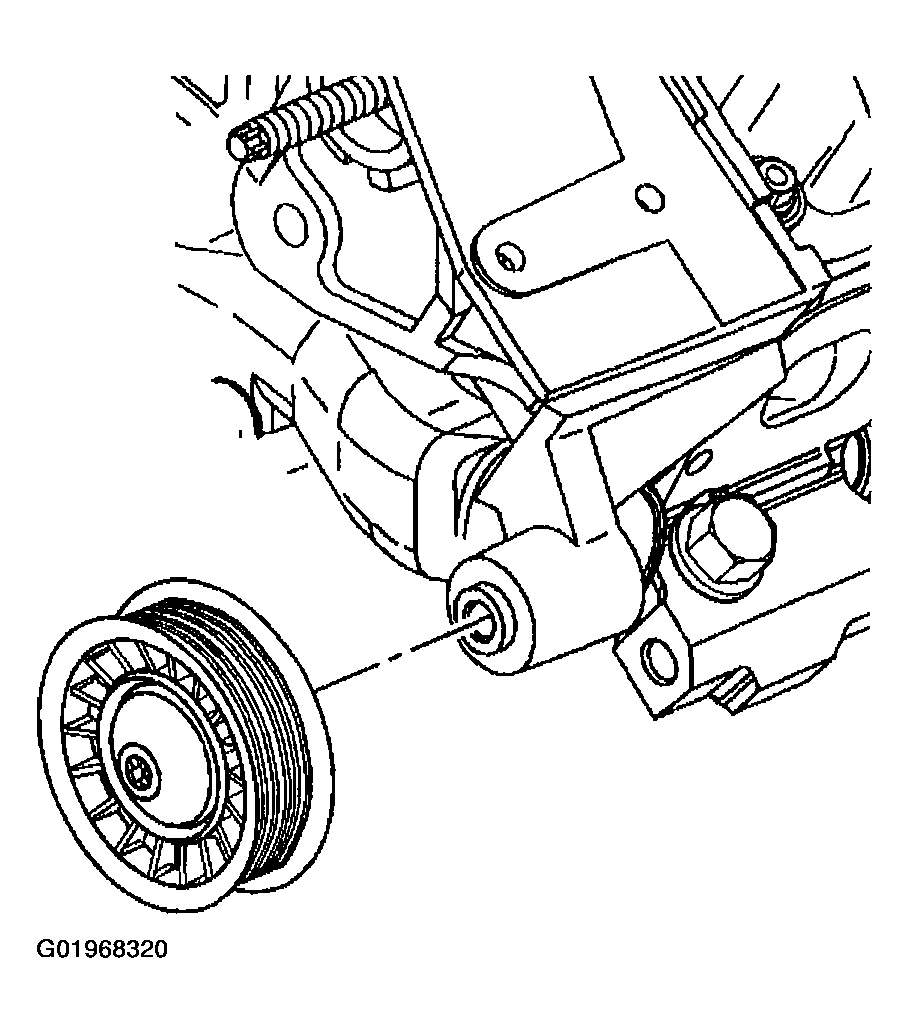

    Fig 1: Installing Drive Belt Upper Idler Pulley
    G01968320Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the idler pulley bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36)  or DRIVE BELT REPLACEMENT (L67)  .

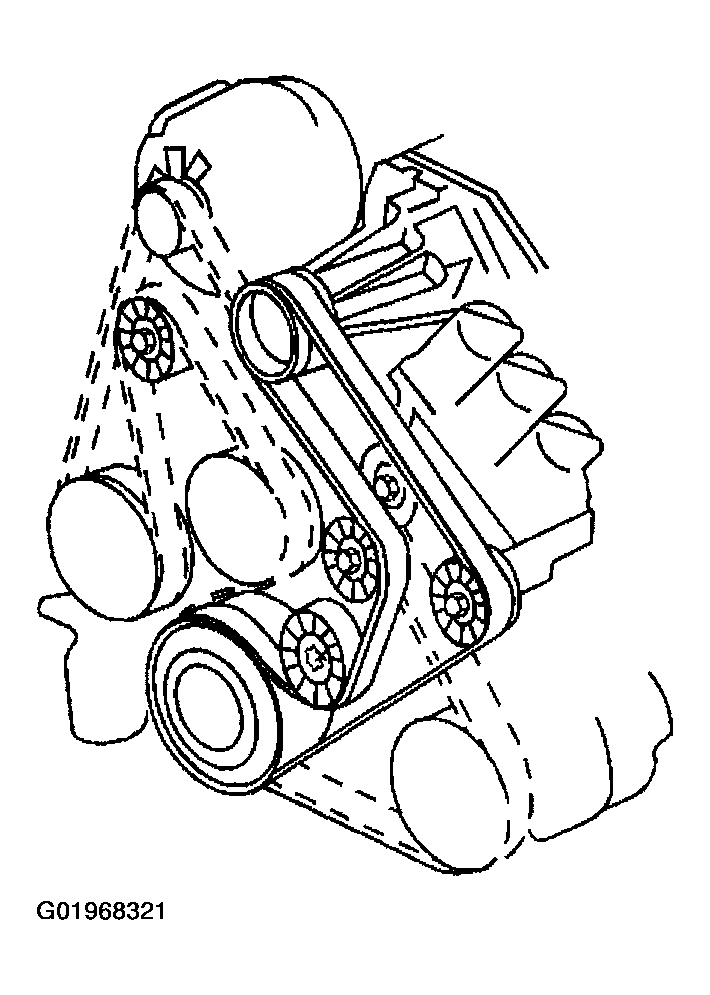

    Fig 2: View Of Supercharger Drive Belt
    G01968321Courtesy of GENERAL MOTORS CORP.
