Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm bolts.
  2. Remove the valve rocker arm.
  3. Remove the push rods.
  4. Remove the push rod guide plate.

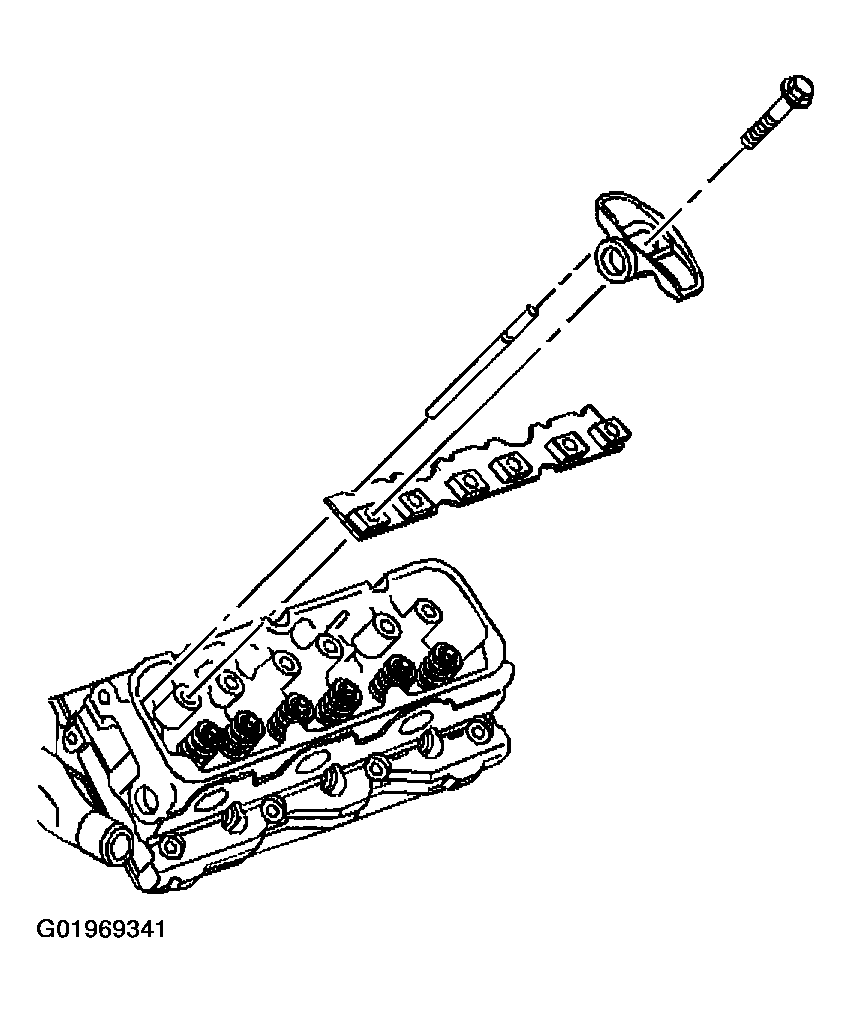

    Fig 1: Removing Valve Rocker Arm, Push Rods Bolts & Guide Plate
    G01969341Courtesy of GENERAL MOTORS CORP.
