Valve Lifter Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve lifter guide retainer bolts.
  2. Remove the valve lifter guide retainers.
  3. Remove the valve lifters.

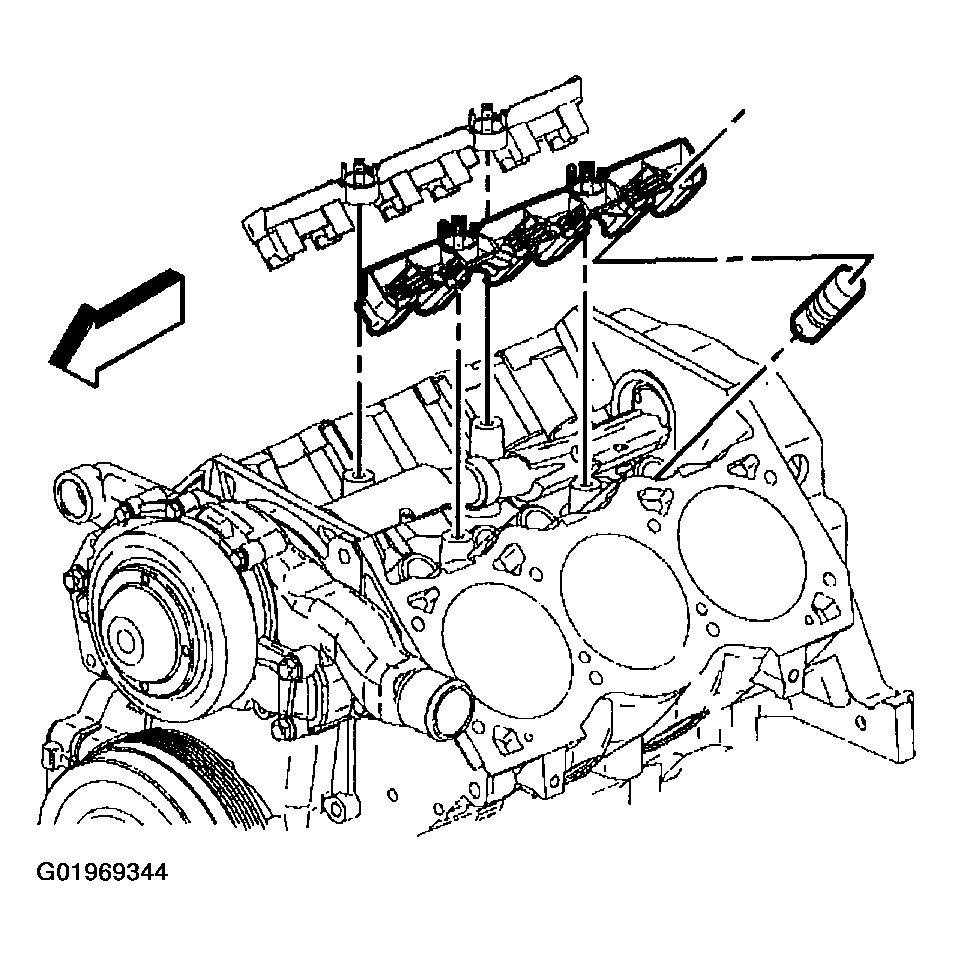

    Fig 1: Removing Valve Lifters, Lifter Guide Retainer & Bolts
    G01969344Courtesy of GENERAL MOTORS CORP.
