Oil Pan Installation

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pan gasket to the oil pan flange.
  2. Install the oil pan.
  3. Clean the oil pan bolts.
  4. Apply one drop of GM P/N 12345382, (Canadian P/N 10953489) to each bolt.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the oil pan bolts.

    Tighten

    Tighten the bolts to 14 N.m (125 lb in).

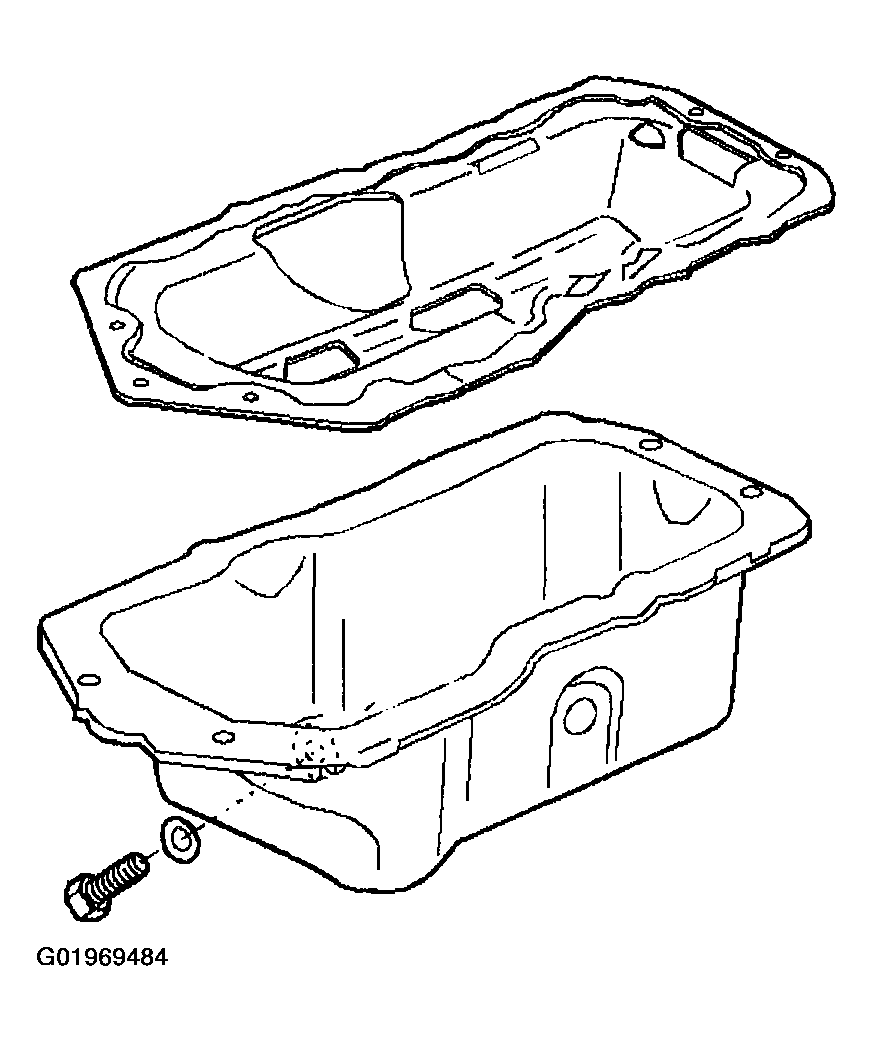

    Fig 1: Installing Oil Pan Gasket To Oil Pan Flange
    G01969484Courtesy of GENERAL MOTORS CORP.
    NOTE: Install the oil level sensor, located in the oil pan, after the oil pan is installed. The sensor may be damaged if the oil level sensor is installed first.
  6. Install the oil level sensor.

    Tighten

    Tighten the oil level sensor to 20 N.m (15 lb ft).

    Fig 2: Installing Oil Level Sensor
    G01969485Courtesy of GENERAL MOTORS CORP.
