Intake Manifold Installation - Lower (L67)

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower intake manifold gasket.
  2. Install the lower intake manifold.
  3. Apply Threadlocker 272 GM P/N 12345493, (Canadian P/N 10953488) to the bolt threads.

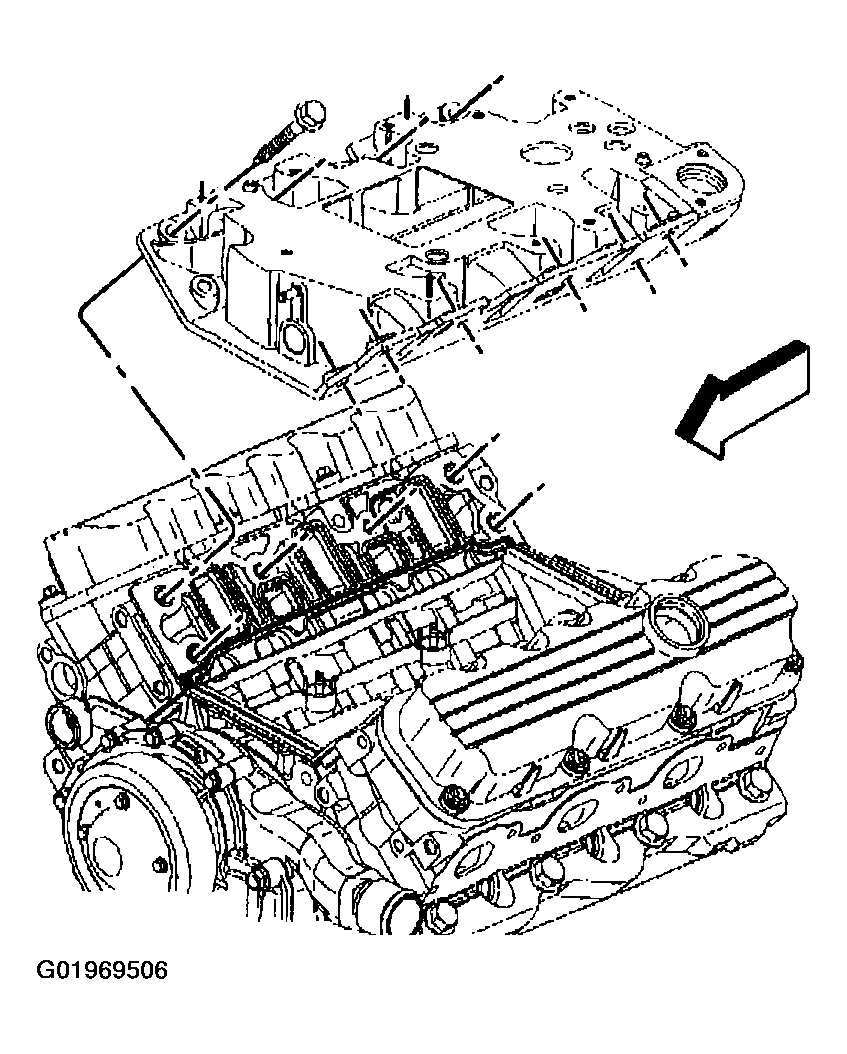

    Fig 1: Installing Lower Intake Manifold (L67)
    G01969506Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the lower intake manifold bolts including the two hidden bolts.

    Tighten

    Tighten the bolts in sequence to 15 N.m (11 lb ft).

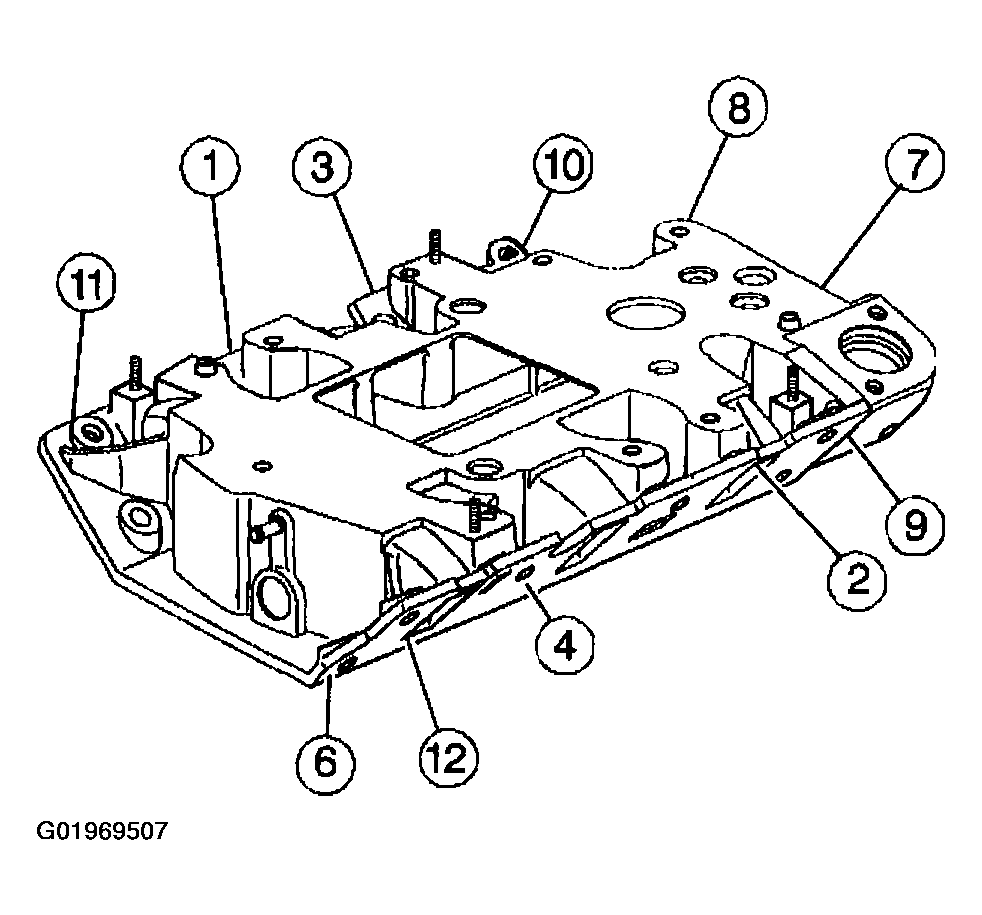

    Fig 2: Tightening Sequence Of Lower Intake Manifold Bolts (L67)
    G01969507Courtesy of GENERAL MOTORS CORP.
