Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts.

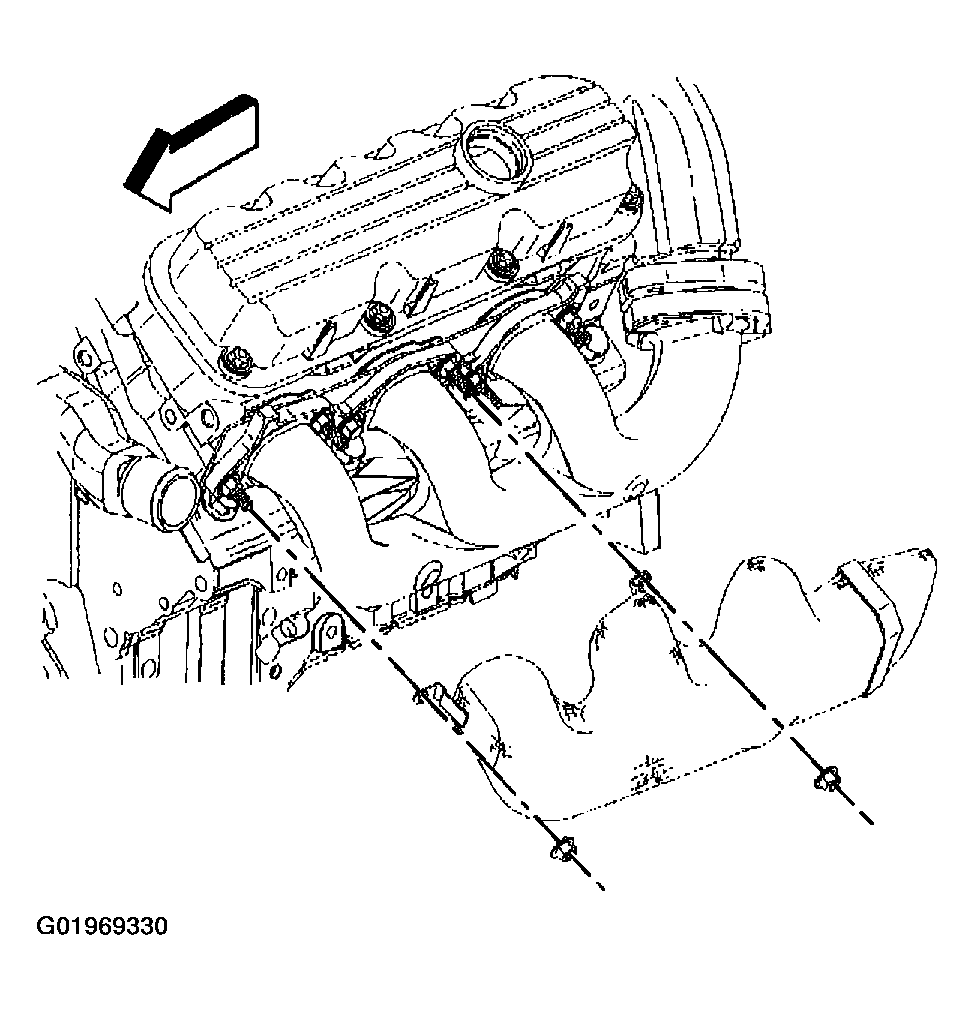

    Fig 1: Removing Left Exhaust Manifold Heat Shield & Nuts
    G01969330Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust manifold heat shield.
  3. Remove the left engine lift hook nut and bolt.
    Fig 2: Removing Left Engine Lift Hook, Nut & Bolt
    G01969331Courtesy of GENERAL MOTORS CORP.
  4. Remove the left engine lift hook.
  5. Remove the left side spark plugs.
  6. Remove the exhaust manifold bolt and studs.
  7. Remove the exhaust manifold.

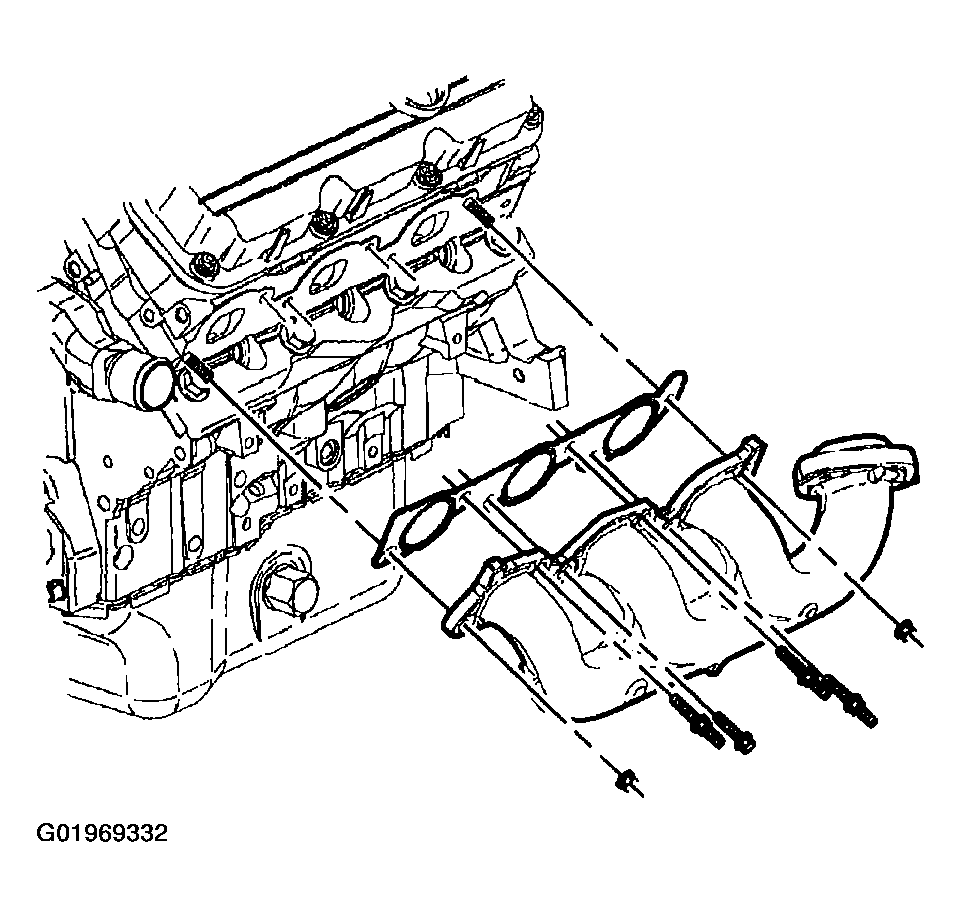

    Fig 3: Removing Left Exhaust Manifold, Bolt, & Gasket
    G01969332Courtesy of GENERAL MOTORS CORP.
  8. Remove the exhaust manifold gasket.
  9. Remove the exhaust manifold studs.

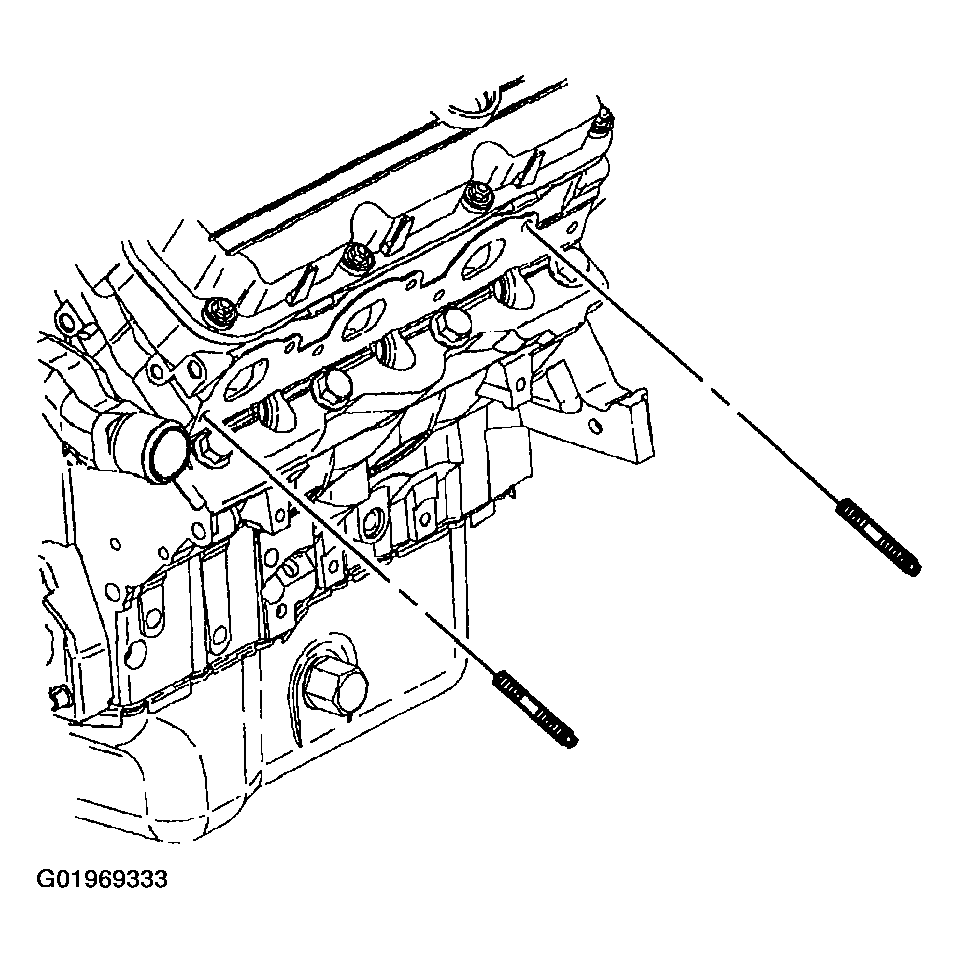

    Fig 4: Removing Left Exhaust Manifold Studs
    G01969333Courtesy of GENERAL MOTORS CORP.
