Drive Belt Idler Pulley Bracket Removal (L67)

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt idler pulley bracket bolts.
  2. Remove the drive belt idler pulley bracket.

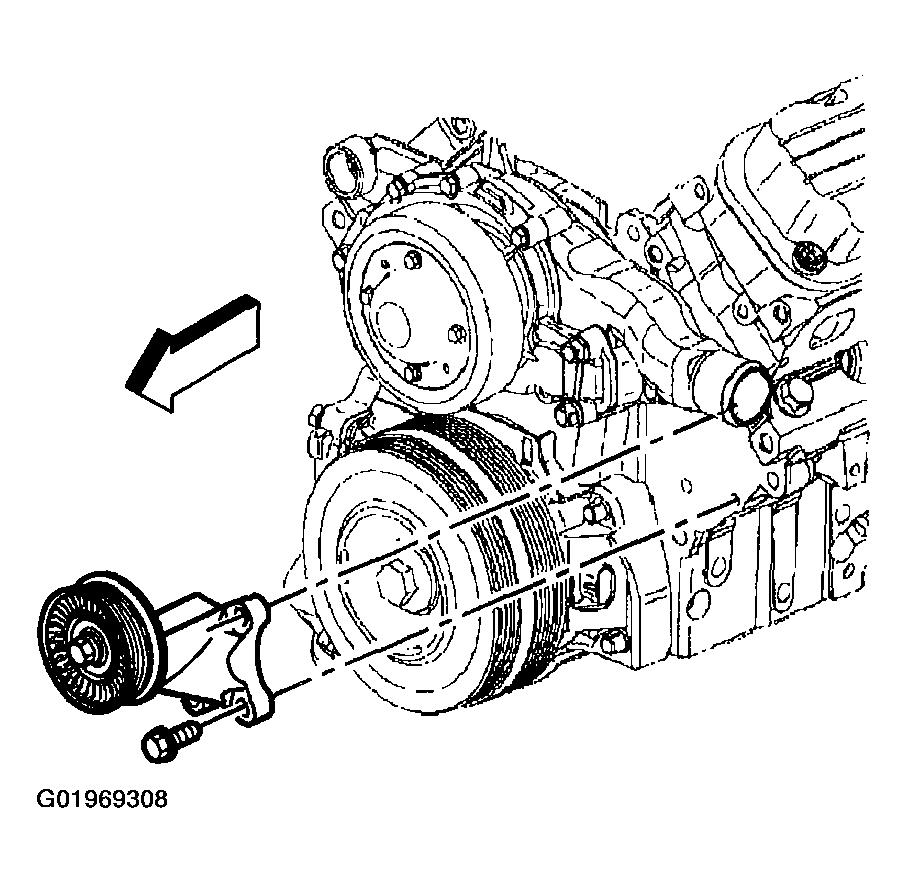

    Fig 1: Removing Drive Belt Idler Pulley Bracket & Bolts (L67)
    G01969308Courtesy of GENERAL MOTORS CORP.
